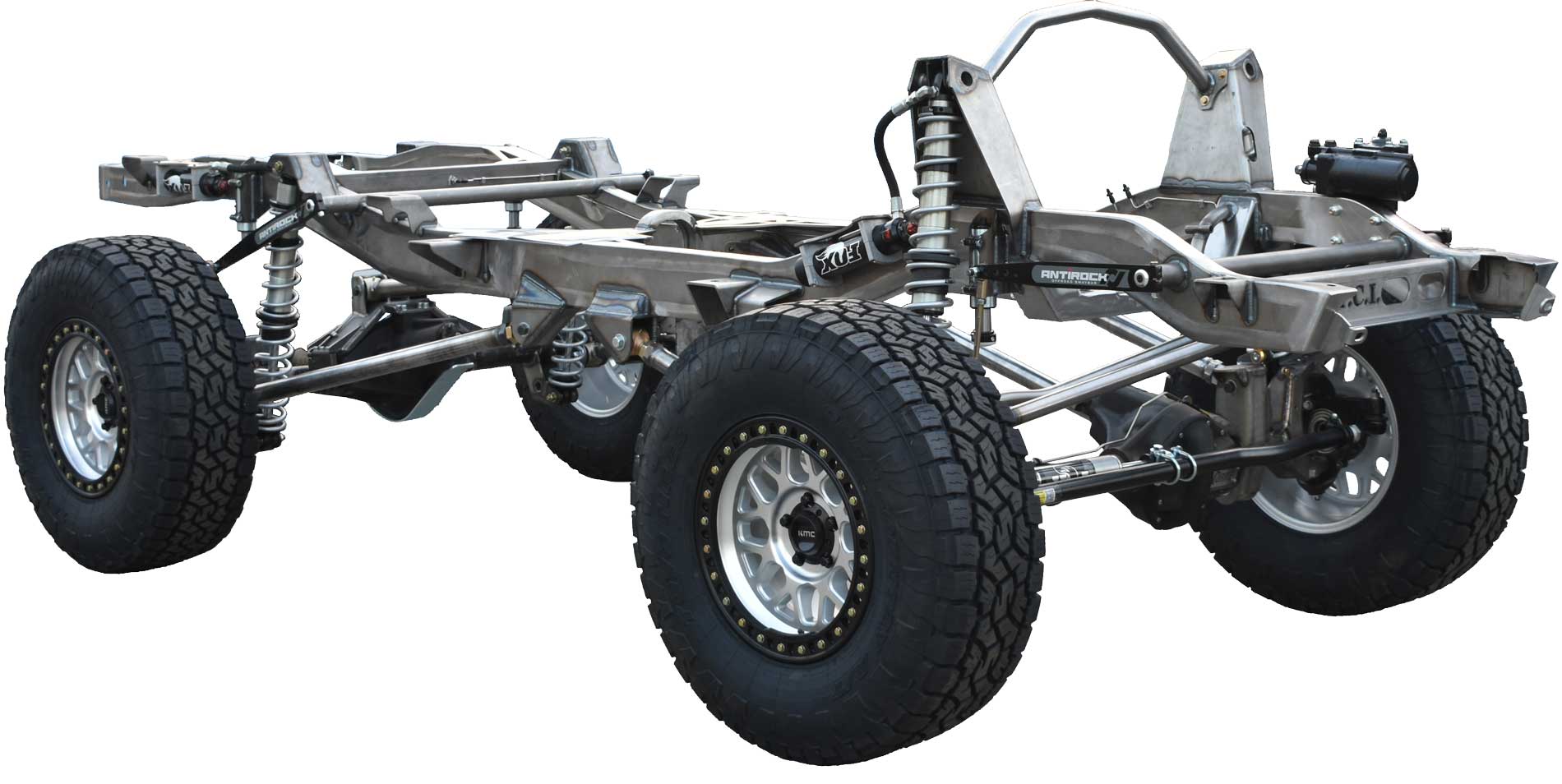

1969-1972 K5 Blazer Pro 4×4 Chassis

We are proud to offer our new 1969-1972 Chevy K5 Blazer Pro 4×4 Chassis. Putting 50 years of design and engineering expertise to work, we begin with 10 laser cut frame pieces of U.S. derived.134w steel. The frame rails are unique from anything we have previously built. Knowing that the transfer case would inhabit the same space as our traditional center section we came up with a new way to increase strength. What we ended up with was an internal honeycomb insert that helps increase torsional rigidity. Essentially, there is a multi piece grid pattern reinforcement structure that is placed inside the frame rails before they are boxed. Each frame rail is fixture welded with the outside edges being ground smooth. The frame rails are then placed into a chassis fixture where we add front and rear crossmembers and completely new design center section to work around the driver-side output transfer case. Compared to the factory frame rail profile, our engineers widened the rails ahead of the cab and narrowed them behind the cab. This allows more room for headers and steering components, up front. While outback, this allowed us to mount the shocks outside the frame rails which maximizes roll stiffness and still have plenty of room for 37″x12″ tires. The center section and driveshaft loop is comprised of 4 pieces of 1”x2”.120w rectangle tubing & 4 large.1875″ gusset plates adding even more rigidity. Center section design allows for 3” round tube exhaust to fit with room to spare. The chassis is built around late model LS/LT engine/trans platforms using a driver-side output Atlas Transfer Case.

This is the most well thought out & executed 1969-1972 K5 Blazer 4×4 Chassis available today.

We relied on the experts at RockJock to provide not only the most durable but also readily available replacement steering components. The included Borgeson steering box is a direct replacement for 1966-1977 Broncos. RockJock High Steer Forged knuckles, Forged Outer Tie Rods, and unit-bearing hubs are all based on the Jeep JL (2018-present) platform (5×5″ Bolt Pattern). Crucial steering angles and tie rod lengths were carefully engineered to minimize bump steer and lateral movement. Common 5×5 bolt pattern hubs offer many popular wheel choices. Up to 37” tall tires fit while maintaining full turning radius, travel and articulation.

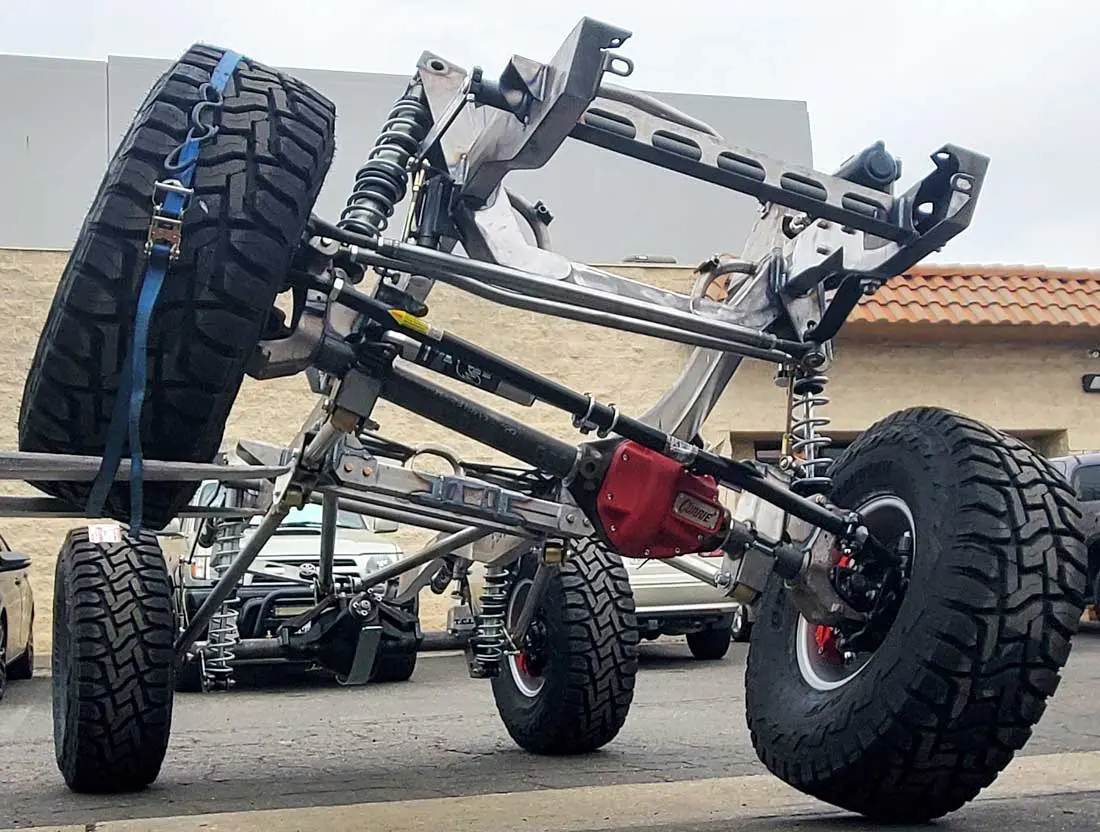

Working closely with Currie Enterprises & RockJock our engineers have designed front and rear 4-Link suspensions that are not only strong but multi-functional. Maximized length link bars provide minimal wheelbase change throughout travel and have the added benefit of limiting roll steer. Coil-over angle has been kept close to vertical to keep motion ratio close to 1:1 while keeping the mounts as wide as possible for maximum roll control. That means this new chassis will be just as capable off road as it is on road. With the Fox adjustable coil-overs your ride comfort can be tailored to your exact driving style. Whether you’re cruising down the highway, flying across the desert or crawling up the mountainside we have you covered.

Front and Rear 4-links with uneven length 2”x.250w tubing link bars utilizing 1.25” shank RockJock Johnny Joints. Front wheel travel = 12″ Rear wheel travel = 12″ Fully adjustable Fox 2.5”x12” Performance Series remote reservoir coil-overs mounted directly to the axle at all 4 corners. Fox 2.0” Race Series bump stops allow additional tuning capabilities and provide safety when bottoming. RockJock Antirock adjustable anti-sway bars front and rear.

Borgeson supplied 1966-1977 Bronco steering box. RockJock supplied High Steer Jeep JL Forged knuckles & outer Tie Rods provide strength and excellent turning radius. Custom Panhard bar with maximized length to control lateral movement. Fox supplied steering stabilizer provides proper off-road steering control.

Currie high pinion 44 (Front) & Currie high pinion 60 (Rear) complete axles come standard. The Currie 44 High Pinion front axle uses 3” O/Dx.5” wall DOM axle tubes, 4340 Chromoly 30 spline inner & 32 spline outer axles, and 1350 pinion yoke. The Currie 60 High Pinion rear axle uses 3” O/Dx.375” wall DOM axle tubes, 4340 Chromoly 35 spline axles, 1350 pinion yoke and skid plate. The custom Currie housings are designed to provide superior bearing lubrication for sustained highway miles or steep inclines and anywhere in between. Standard equipment includes 4.56 gears, Tru-Trac Posi, 68” Wheel Mounting Surface width, and 1350 Yokes. Full Floater rears, Lockers, and your choice of gears are optional.

All TCI Engineering products come with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, tie rods, & ball joints. Any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty.

We pride ourselves in partnering with our customers to build their ride, the best way, the first time. Let us help you, too.

Only 8-Week Lead Time!

!

Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
