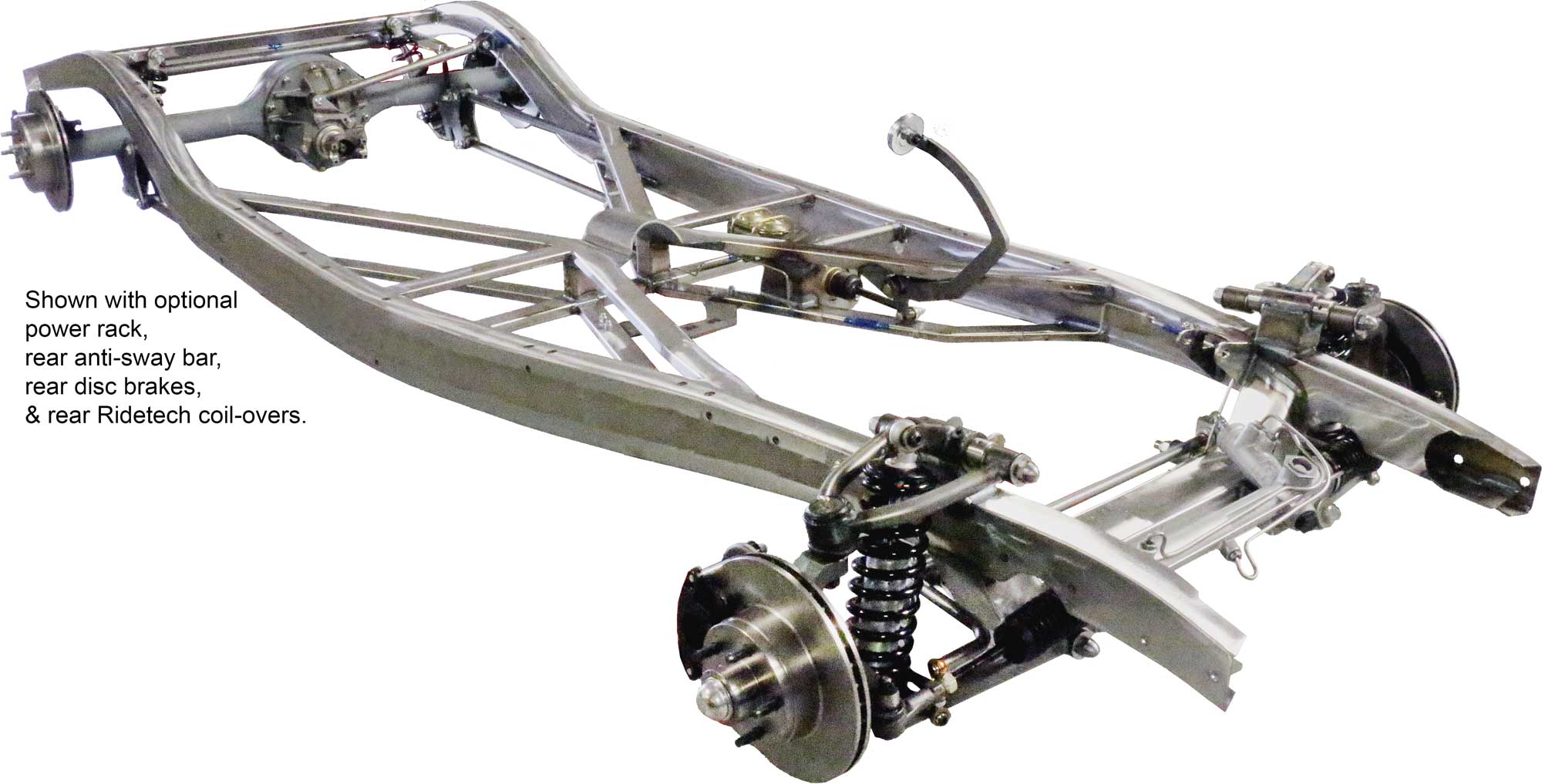

We are proud to offer 1935-1940 Ford Car & 1935-1941 Ford Truck Custom IFS and 4-Link Rear Chassis. The frame features main rails that are constructed using stamped U.S.-supplied steel and fully boxed for increased rigidity while retaining the original profile. We offer chassis for cruising, autocrossing, drag racing, or fully polished show-stoppers and anything in between. Additionally, we offer a wide variety of options that allow you to custom-tailor a chassis to meet your specific needs.
Our Custom IFS is American-made and engineered for enhanced drivability and a broader range of alignment adjustments. This front end suspension is based on our Custom designed spindle with bolt-on steering arms and proprietary geometry to maximize comfort and performance. The offset stainless eccentric adjuster provides easy camber and caster adjustments. Available with dropped or stock height spindles to provide a ride height that matches your specific desires. 1,000,001 Mile Warranty Ridetech Coil-over shocks come standard and provide further height adjustment and 26-way ride comfort control.

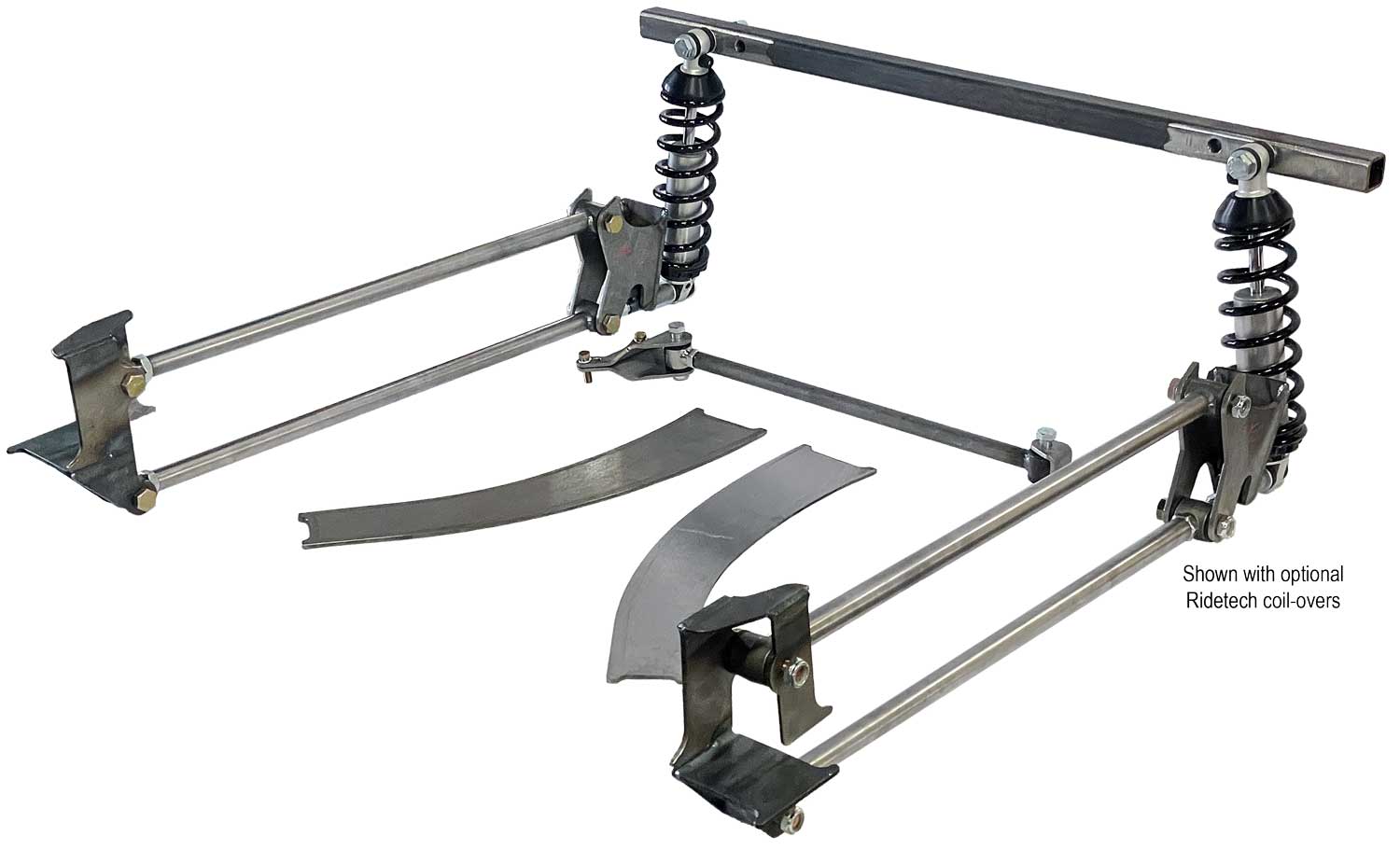

Furthermore, the 4-Link Rear Suspension creates a lowered stance for superior handling via a lowered center of gravity. Smooth ride, better handling, minimal weight and greater axle control are just the beginning. Adjustable 4-Link bars allow fine tuning of wheelbase/pinion angle, eliminate wheel hop and provide greater axle control. Height adjustable coil-overs plus adjustable mounting positions provide many options for desired ride height. Energy Suspension provides the polyurethane bushings with lubrication valleys and come with their patented poly lube. Only American made steel is used to manufacture this TCI Engineering ’35-’41 Ford Custom IFS Chassis.
All TCI Engineering products come with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty.
Currently, 8-WEEK Lead Time!
Add to Quote!
| Part No. | TCI-104-1225-00 |
|---|---|
| Brand | Total Cost Involved |
