1933-1934 Ford Dropped Axle Front & 4-Link Rear Chassis
4 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Install quoted on request. We fit parts in-house in Huntington Beach, but we do not publish a labor figure for this item — we would rather quote your car than guess. Call (714) 202-7886 or pick Install at HRC and add your vehicle details, and we will come back with the labor.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

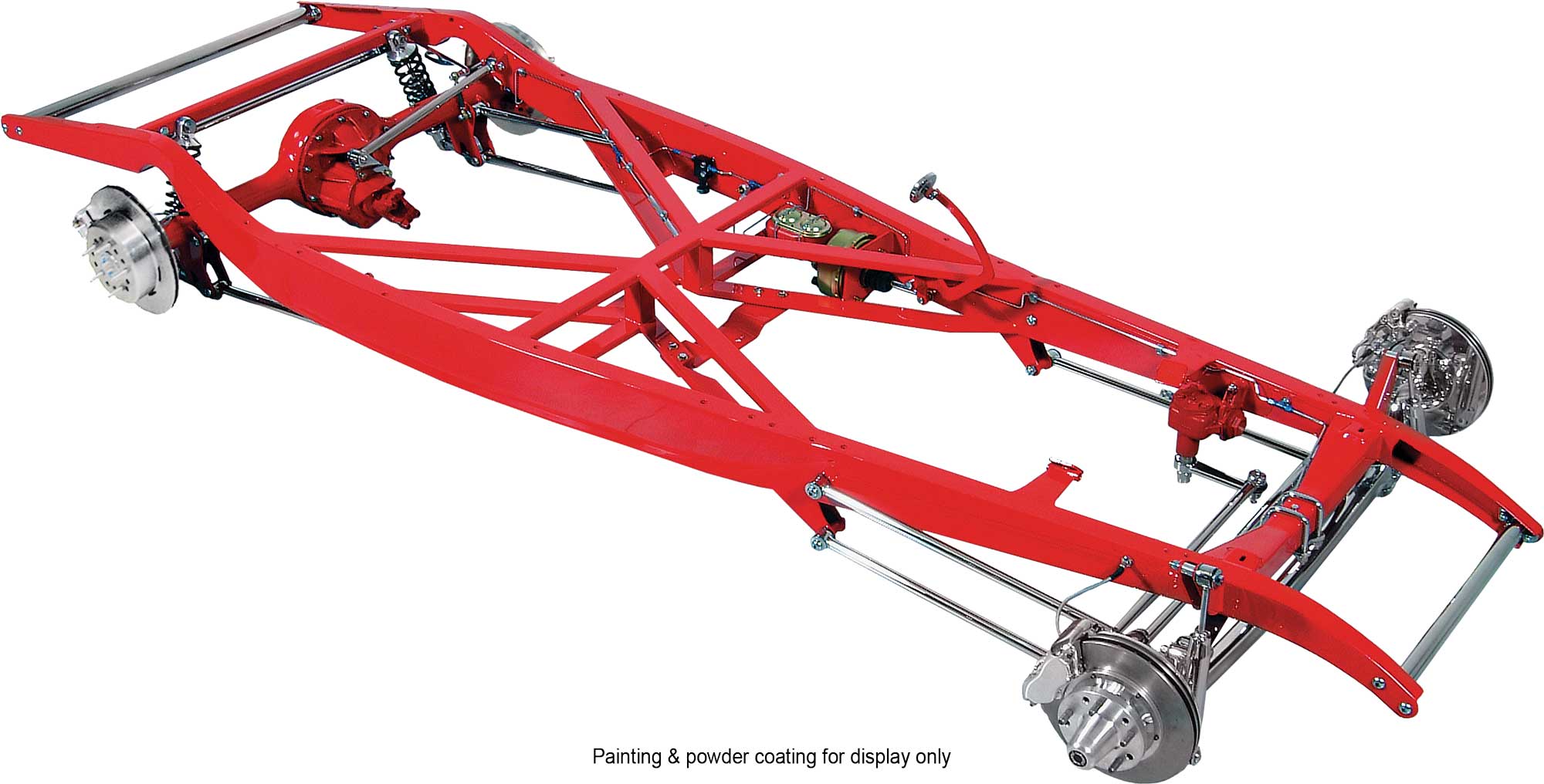

We are proud to offer 1933-1934 Ford Dropped Axle and 4-Link Chassis. Our frame features main rails constructed of stamped U.S. supplied steel and fully boxed for increased rigidity while retaining the original profile. Our chassis for cruising, autocrossing, drag racing, or fully polished show-stoppers and anything in between. In addition, we offer a wide variety of options that allow you to custom tailor a chassis to meet your specific needs.
The Dropped Axle front suspension is engineered for the classic look, enhanced drivability and ease of use. Furthermore, we’ve implemented the newest design and manufacturing innovations into a classic design. Comfort and safety are key design elements while retaining a traditional look. Fixture welded tube axle using only U.S. made steel. Fixture welded link bars using only Energy Suspension polyurethane bushings with lubrication valleys. Big Bore calipers on big 10.5” rotors. Fitted kingpins and fully packed front bearings using hi-temp grease. SoCal Speed Shop provides the front shocks and shock mounts.

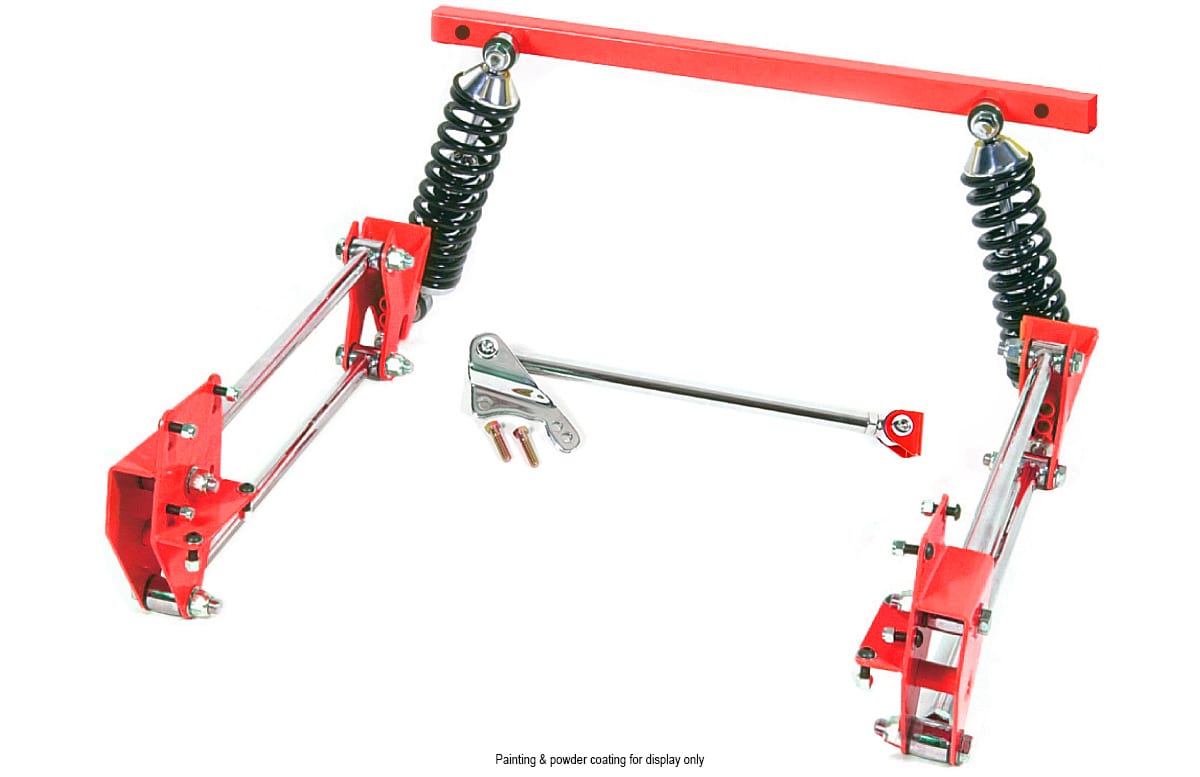

Additionally, the 4-Link Rear Suspension creates a lowered stance for superior handling via a lowered center of gravity. Smooth ride, better handling, minimal weight and greater axle control are just the beginning. Adjustable 4-Link bars allow fine tuning of wheelbase/pinion angle, eliminate wheel hop and provide greater axle control. Height adjustable coil-overs plus adjustable mounting positions provide many options for desired ride height. Energy Suspension provides the polyurethane bushings with lubrication valleys and come with their patented poly lube.
Complete Currie 9” axle housings are available fully welded and ready to be bolted in. In addition, only American made steel is used to manufacture this TCI Engineering 1933-1934 Ford Dropped Axle Chassis.
All TCI Engineering products, including the 1933-1934 Ford Dropped Axle Chassis, comes with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty.
Currently, 8-WEEK Lead Time!
| Part No. | TCI-103-1215-00 |
|---|---|
| Brand | Total Cost Involved |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
