1932 Ford Dropped Axle Front & 4-Link Rear Chassis

We are proud to offer the 1932 Ford Model B Dropped Axle Front and 4‑Link Rear Chassis. The frame features main rails constructed from stamped U.S.-supplied steel and fully boxed for increased rigidity while retaining the original profile. We offer chassis options for cruising, auto‑crossing, drag racing, fully polished show‑stoppers, and everything in between. Furthermore, we provide a wide range of options that allow you to custom‑tailor a chassis to meet your specific needs.

The 1932 Ford Dropped Axle Front and 4‑Link Rear Chassis is designed for enhanced drivability and ease of use. We apply the latest design and manufacturing innovations to create a classic car that is easy to drive and enjoy. Comfort and safety remain key design elements while maintaining a traditional look. We fixture‑weld the tube axle using only U.S.-made steel. We also fixture‑weld the link bars using Energy Suspension polyurethane bushings with lubrication valleys. Big Bore calipers clamp onto big 10.5” rotors, and we install fitted kingpins and fully packed front bearings using hi‑temp grease. SoCal Speed Shop supplies the front shocks and shock mounts.

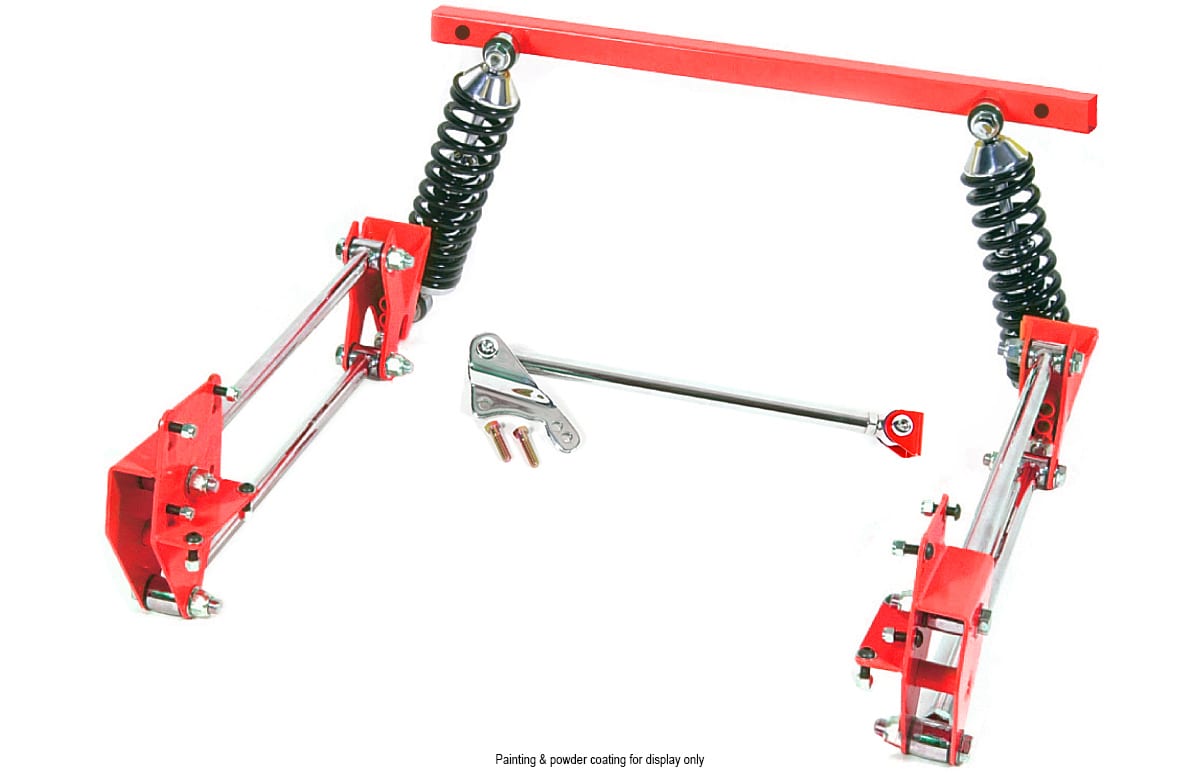

The 4‑Link Rear Suspension creates a lowered stance for superior handling through a reduced center of gravity. A smooth ride, better handling, minimal weight, and greater axle control are only the beginning. Adjustable 4‑Link bars allow fine‑tuning of wheelbase and pinion angle, eliminate wheel hop, and provide greater axle control. Height‑adjustable coilovers plus adjustable mounting positions offer multiple options for achieving your desired ride height. Energy Suspension provides the polyurethane bushings with lubrication valleys, along with their patented poly lube.

Complete Currie 9” axle housings are available fully welded and ready to bolt in. We use only USA‑made steel to manufacture this TCI Engineering ’32 Ford Model B Dropped Axle and 4‑Link Rear Chassis.

All TCI Engineering products come with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. In addition, any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty.

Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
