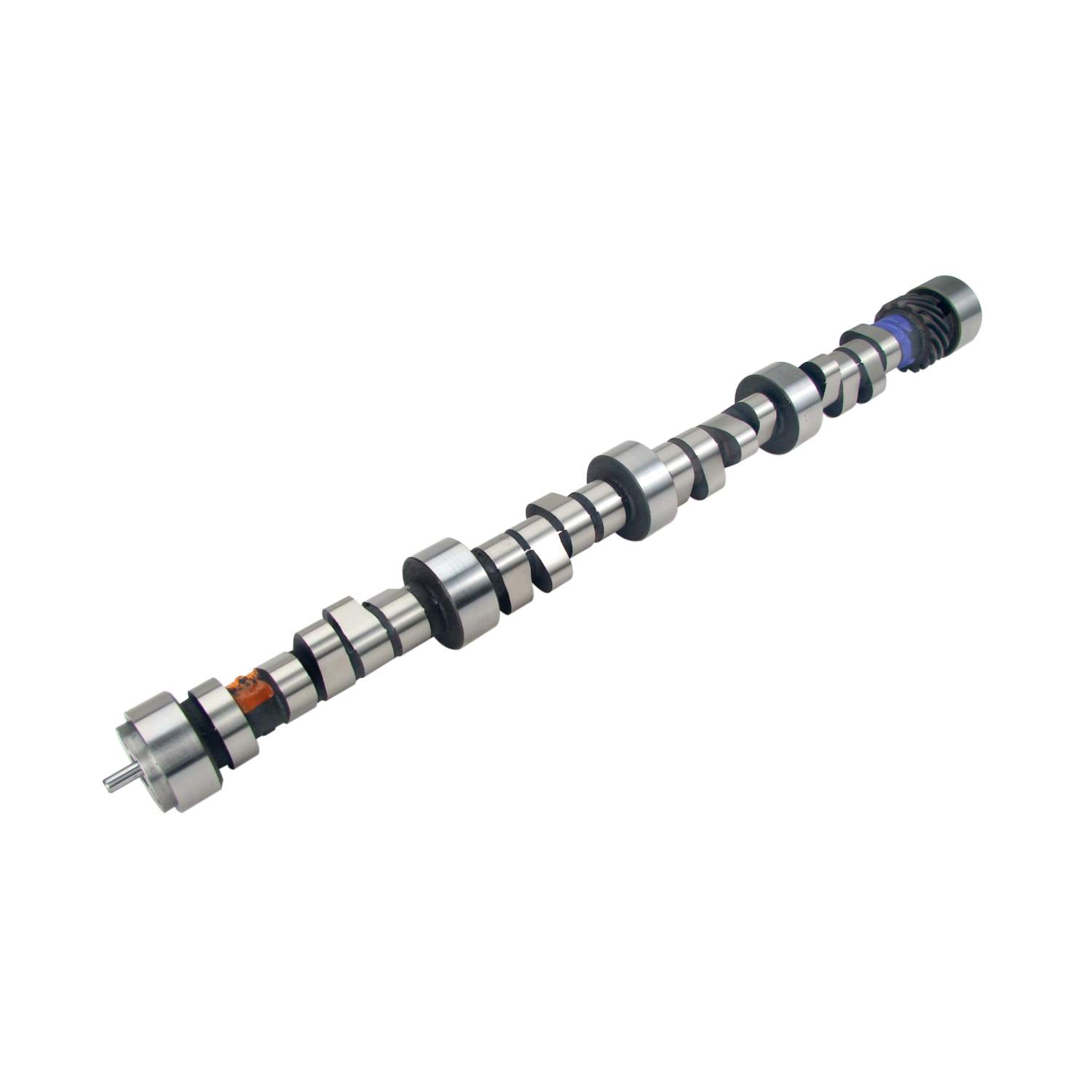

Camshaft, LT1 268XFI HR-13 (07-466-8)
036584105466
$522.95
4 interest-free payments or as low as $—/mo with Affirm. See if you qualify
In Stock
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 11.0 hrs — $1,375 at $125/hr. Pick Install at HRC and a 20% labor deposit ($275) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
| Part Type | Engine Camshaft |
|---|---|
| Camshaft Series | XFI |
| Usage | Street/Performance |
| Cam Type | Hydraulic Roller |
| Grind Number | 268XFI HR-13 |
| Basic Operating RPM Range | 1,800-5,800 RPM |
| Intake Duration at .050 Inch Lift | 218° |
| Exhaust Duration at .050 inch Lift | 224° |
| Advertised Intake Duration | 268° |
| Advertised Exhaust Duration | 276° |
| Lobe Separation | 113° |
| Intake Valve Lift | 0.57" |
| Exhaust Valve Lift | 0.565" |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Engine Family | GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| Cam and Lifter Kit Upgrade | CL07-466-8 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| K-Kit Upgrade | K07-466-8 |
| Lifter Type | Hydraulic Roller |
| Title | XFI 218/224 Hydraulic Roller Cam for GM LT1/LT4 |
| Amazon ASIN | N/A |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | 268XFI HR-13 |
| Weight | 8.7 lb |
| UPC | 036584105466 |
| Country of Origin | USA |
Verified fitment · 68 applications
- Buick Commercial Chassis Base 5.7L (1994–1996)
- Buick Roadmaster Base 5.7L (1994–1995)
- Buick Roadmaster Collector's Edition 5.7L (1996)
- Buick Roadmaster Estate Wagon 5.7L (1994–1995)
- Buick Roadmaster Estate Wagon Collector's Edition 5.7L (1996)
- Buick Roadmaster Limited 5.7L (1994–1995)
- Buick Roadmaster Limited Collector's Edition 5.7L (1996)
- Cadillac Commercial Chassis Base 5.7L (1994–1996)
- Cadillac Commercial Chassis Brougham 5.7L (1994–1996)
- Cadillac Fleetwood Base 5.7L (1994–1996)
- Cadillac Fleetwood Brougham 5.7L (1994–1996)
- Chevrolet Camaro Indianapolis 500 Pace Car 5.7L (1993)
- Chevrolet Camaro Z28 5.7L (1992–1997)
- Chevrolet Camaro Z28 Heritage Edition 5.7L (1992)
- Chevrolet Caprice Classic 4.3L (1994–1996)
- Chevrolet Caprice Classic 5.7L (1994–1996)
- Chevrolet Caprice Classic LS 4.3L (1994)
- Chevrolet Caprice Classic LS 5.7L (1994)
- Chevrolet Commercial Chassis Base 5.7L (1994)
- Chevrolet Corvette 40th Anniversary Edition 5.7L (1993)
- Chevrolet Corvette Base 5.7L (1992–1996)
- Chevrolet Corvette Collector's Edition 5.7L (1996)
- Chevrolet Corvette Grand Sport 5.7L (1996)
- Chevrolet Corvette Indianapolis 500 Pace Car 5.7L (1995)
- Chevrolet Impala SS 5.7L (1994–1996)
- Pontiac Firebird Formula 5.7L (1992–1997)
- Pontiac Firebird Trans Am 5.7L (1992–1997)
- Pontiac Firebird Trans Am GT 5.7L (1994)
- Pontiac Firebird Trans Am GTA 5.7L (1992)
| Part No. | 07-466-8 |
|---|---|
| Brand | COMP Cams |
| Part Type | Engine Camshaft |
| Weight | 8.7 lb |
| UPC | 036584105466 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
