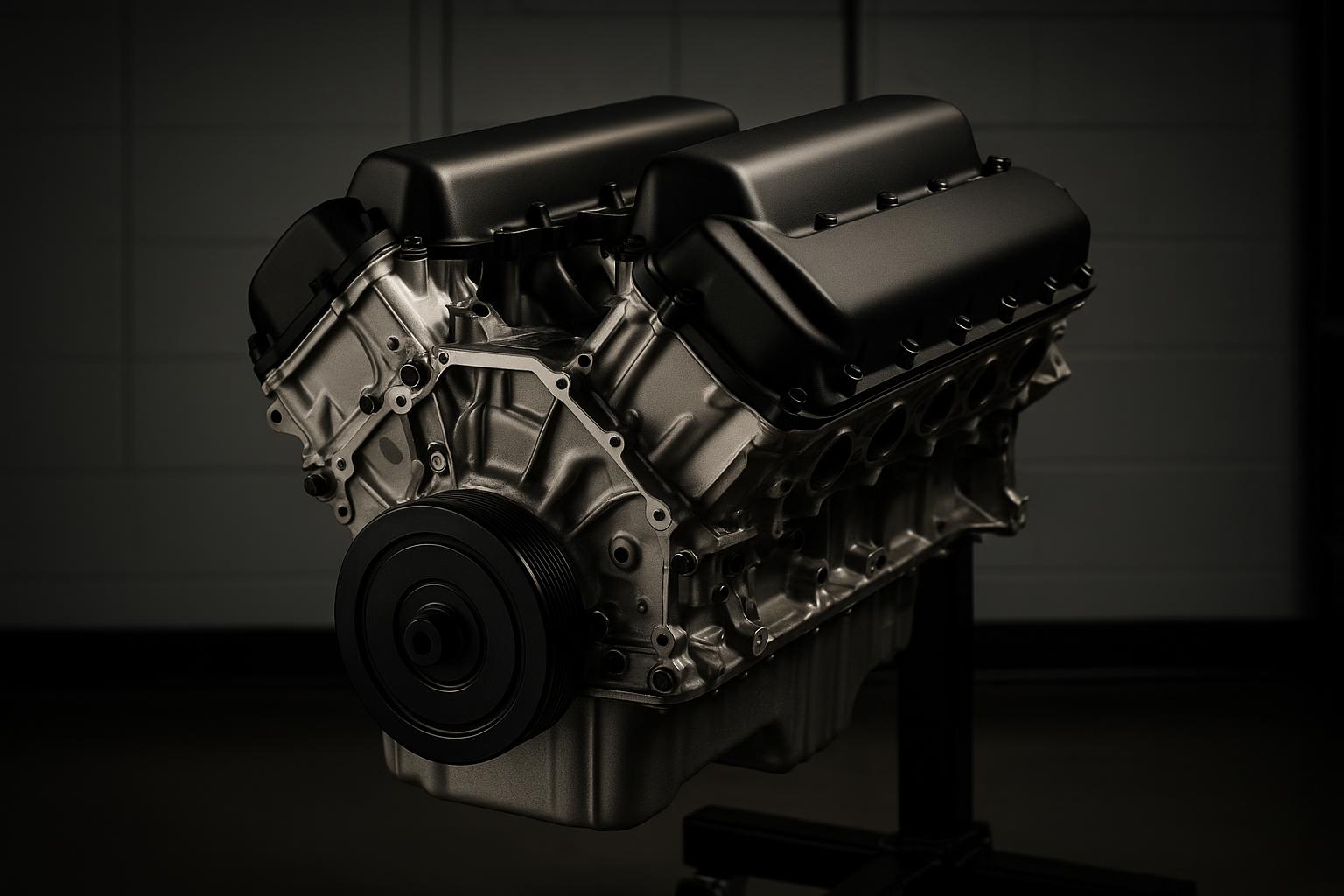

Ford Coyote Long Block — Built to Order, up to 2,000 HP (5.0L – 5.3L)
4 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Ships directly from the supplier — in stock at the manufacturer
We confirm your ship date within one business day of ordering, and you can cancel for a full refund if the date does not work.
Compatibility
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Install quoted on request. We fit parts in-house in Huntington Beach, but we do not publish a labor figure for this item — we would rather quote your car than guess. Call (714) 202-7886 or pick Install at HRC and add your vehicle details, and we will come back with the labor.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
A long block specified to your power target and assembled on our own bench in Huntington Beach. Machine work is carried out by our partner machine shop here in California; block prep is done to the design spec for your combination.
Power ceiling: built to support targets up to 2,000 HP, in displacements from 5.0L – 5.3L. The exact combination — crank, rods, pistons, block prep — is specified to the number you are chasing, and we confirm scope and lead time with you before any work starts. Final tuning is arranged through our tuning partner.
What is in it
| Crankshaft | Ford Performance Coyote 5.2L Forged Crankshaft (M-6303-M52B) | M-6303-M52B |
|---|---|---|
| Connecting rods | Manley Performance Manley Ford 4.6L / 5.0L H Tuff Series Connecting Rod Set w/ ARP 2000 Bolts | 15042R-8 |
| Pistons | Mahle Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod | 930258601 |
| Piston rings | Manley Performance Manley Ring Set 2018+ Gen 3 Coyote 3.672in Bore / 1.2mm Thick / 3.0mm - Set of | 46772ST-8 |
| Rod bearings | King Engine Bearings King Engine Bearings Ford 260CI/289CI/302 5.0 Windsor Connecting Rod Bearing S | CR804XPNC001 |
| Main bearings | King Engine Bearings King Engine Bearings Ford 302 CID Coyote Performance Coated Main Bearing Set - | MB5734MC |
| Head gasket | Cometic Gasket Cometic 11+ 5.0L Coyote .030 inch MLS Exhaust Gaskets (Pair) | C5392-030 |
| Head studs | ARP ARP 13 Ford Coyote 5.0L V8 Head Stud Kit | 256-4301 |
| Camshaft | Ford Performance 2024-2025 5.0L 4V TI-VCT Mustang 'Gen 4' Coyote Camshaft Drive Kit (M-6004-A50 | M-6004-A50D |
| Timing set | Ford Performance Coyote/GT350 Primary Timing Chain Set (M-6004-GT350PC) | M-6004-GT350PC |
| Oil pump | Ford Performance 5.0L Coyote Oil Pump Installation Kit (M-6600-A50PKIT) | M-6600-A50PKIT |
Every part above is a SKU we stock and can be viewed on this site. Component brands may be substituted to suit your power target and current availability — the spec sheet you receive before assembly is the one that is built.
Notes on this platform
- Stock cylinder heads with cam phaser lockouts. The factory Coyote head is a good casting; locking the phasers is what makes it live under boost and at sustained RPM.
- Stage 2 camshafts available as an option on the long block — specified to your power target, not fitted by default.
- Ford Performance forged crankshaft. Our standard on every Coyote bottom end.
How the price is made up
- Components at our listed retail: $5,402.67
- Blueprint assembly, 18 hours at our published $125.00/hr shop rate: $2,250.00
- Machine work is quoted separately once the block is measured — it depends on what the block needs, and we will not guess at it.
No dyno figure is quoted. We do not run a dyno and we do not tune; tuning goes to our tuning partner. Any power number attached to a build is the target it was specified to hit, not a measured result.
| Part No. | HRC-COY-LONGBLOCK |
|---|
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
