E-CNC Gen III LS Chevy Cylinder Head Hydraulic Roller Camshaft (79949)
000853477994974 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 13.0 hrs — $1,625 at $125/hr. Pick Install at HRC and a 20% labor deposit ($325) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

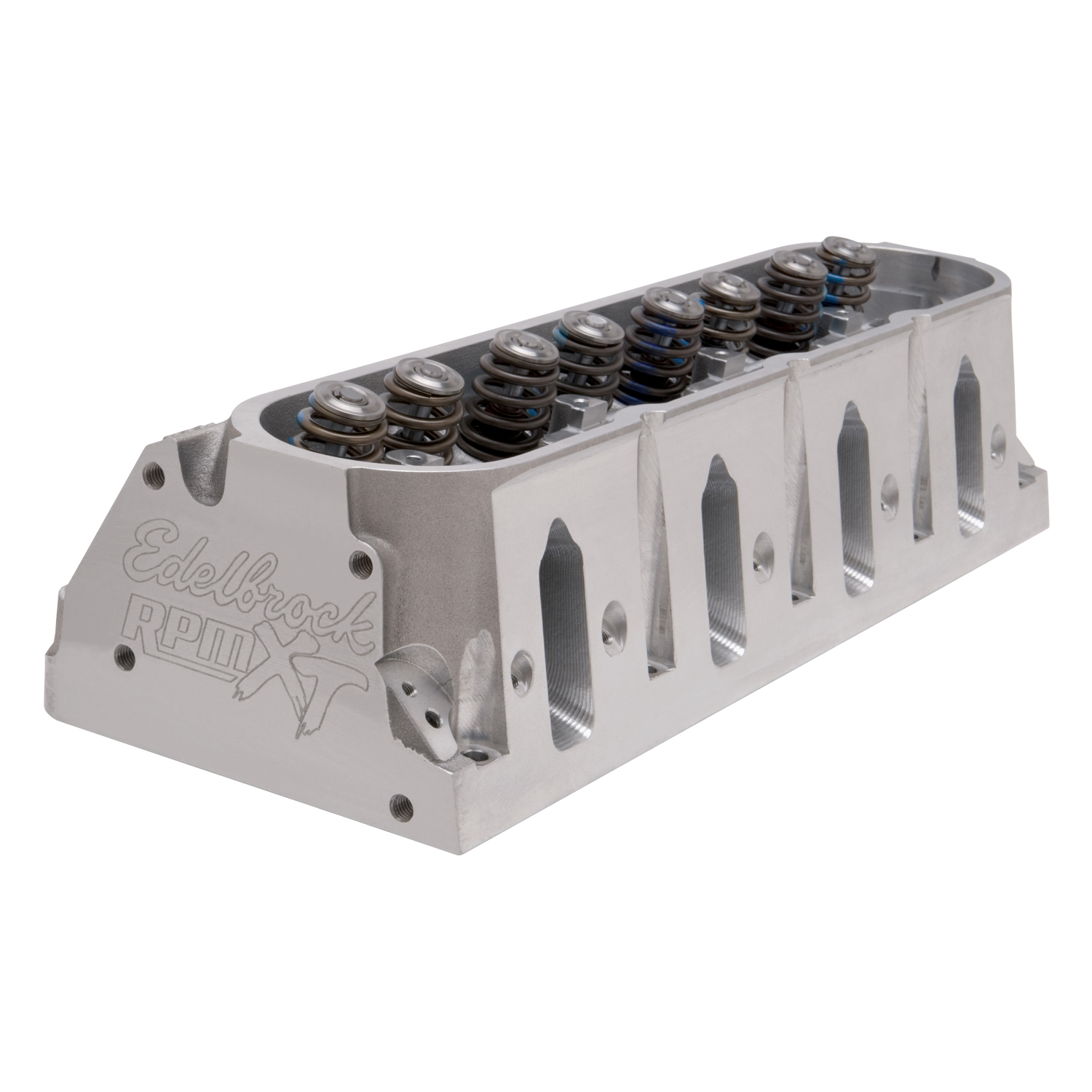

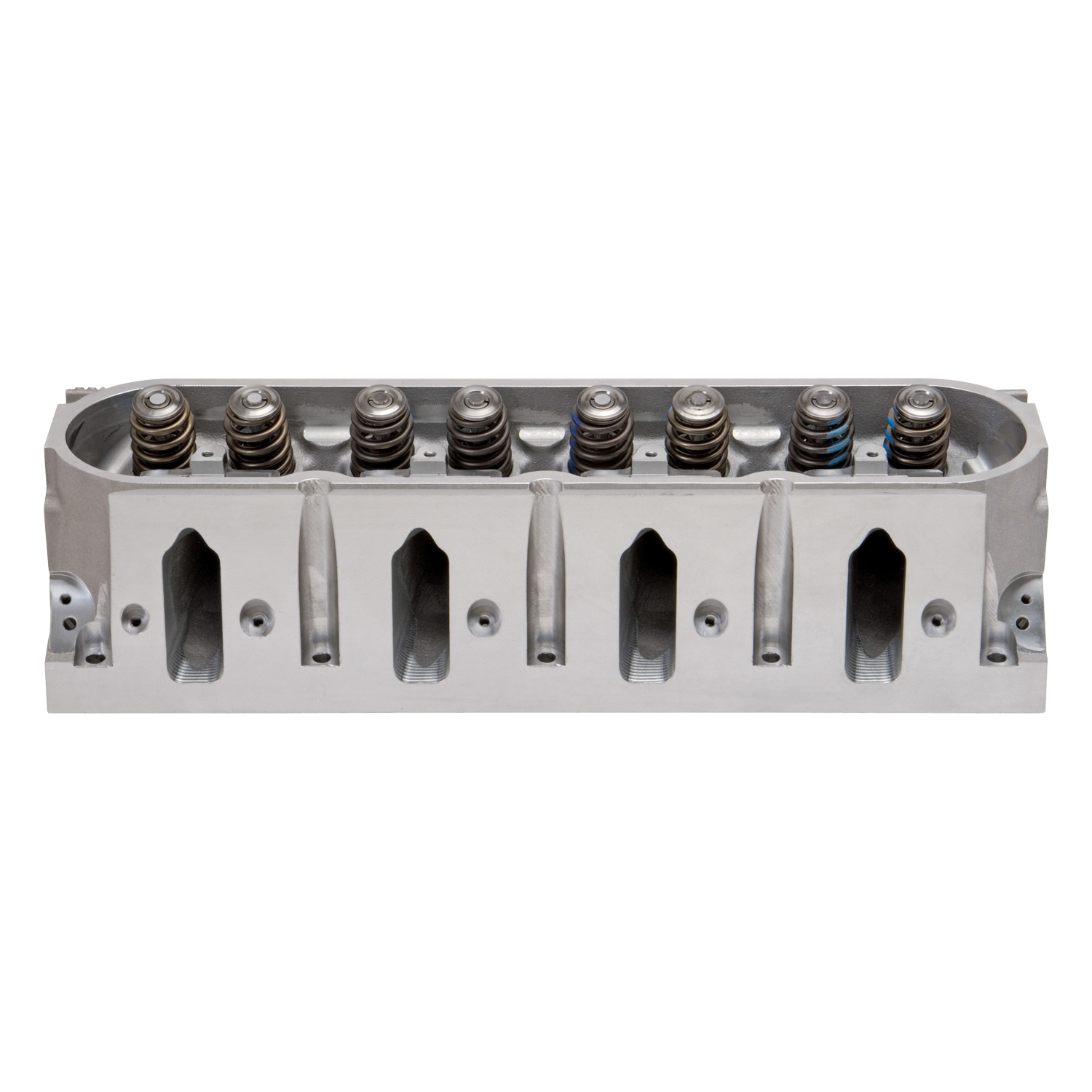

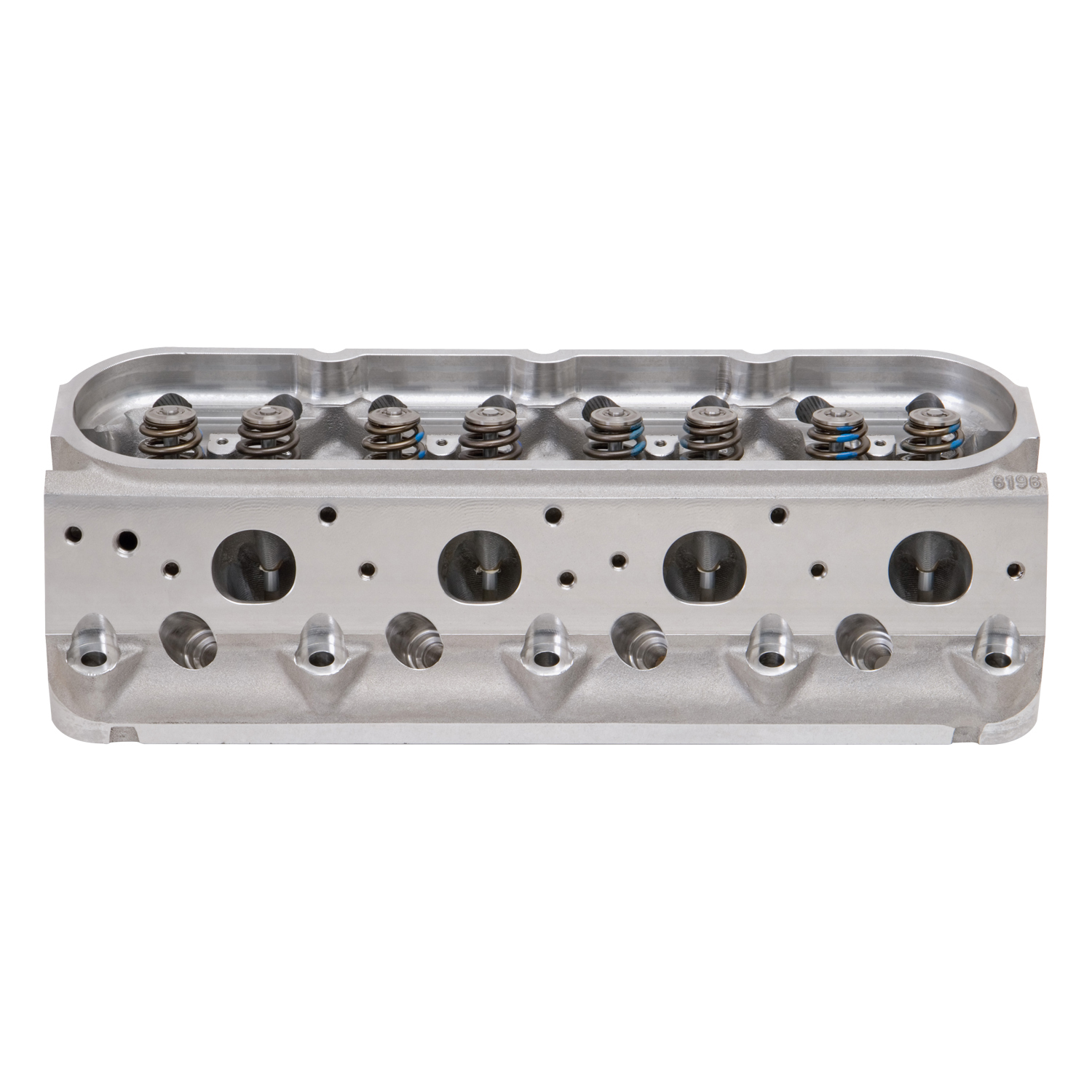

The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder head are designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. The E-CNC Cylinder Head feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved this head is capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.
| Part Type | Engine Cylinder Head |
|---|---|
| Series | E-CNC |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.314961" |
| Retainer Included | Yes |
| Valve Angle | 15° |
| Exhaust Port Location | Standard |
| Valve Spring Diameter | 1.30" |
| CNC Ported | Yes |
| Exhaust Runner Volume | 76 cc |
| Horsepower | 400-500 |
| Construction Type | Complete |
| Guide Material | Manganese Bronze |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Family | E-CNC |
| Push Rod Diameter | (Suggested) 0.3125" |
| EGR Port | No |
| Exhaust Valve Diameter | 1.57" |
| Seat Angle | Exhaust 45 deg/Intake 45° |
| Seat Material | Ductile Iron |
| Deck Thickness | 0.625" |
| Intake Valve Diameter | 2.02" |
| 9040 | D-215-70 |
| Camshaft Type | Hydraulic Roller |
| Valve Spring Maximum Lift | 0.680" |
| 8788 | Yes |
| 10024 | Yes |
| 8789 | Yes |
| 10025 | Yes |
| 10252 | Chromoly Steel |
| 10583 | No |
| 10261 | No |
| 10671 | No |
| 10 | Aluminum |
| 30 | No |
| 6627 | 215 cc |
| 6635 | 31-6196 |
| 6634 | No |
| 3390 | Performance |
| 6621 | 9.24" |
| 10582 | No |
| 6626 | 65 cc |
| 306 | Yes |
| 9799 | Yes |
| Valve Lock Material | Steel |
| Weight | 31.2 lb |
| UPC | 00085347799497 |
| Country of Origin | USA |
Verified fitment · 48 applications
- Cadillac CTS 6.0L (2006–2007)
- Chevrolet Camaro 5.7L (1998–2002)
- Chevrolet Camaro 6.2L (2010–2015)
- Chevrolet Corvette (2001–2004)
- Chevrolet Corvette 5.7L (1997–2000)
- Chevrolet Corvette 6.0L (2006–2007)
- Chevrolet Corvette 6.2L (2008–2013)
- Chevrolet SS 6.2L (2014–2017)
- Chevrolet SSR 6.0L (2005–2006)
- Chevrolet Trailblazer 6.0L (2006–2009)
- Pontiac Firebird 5.7L (1998–2002)
- Pontiac G8 6.2L (2009)
- Pontiac GTO 5.7L (2004)
- Pontiac GTO 6.0L (2005–2006)
| Part No. | 79949 |
|---|---|
| Brand | Edelbrock |
| Part Type | Engine Cylinder Head |
| Weight | 31.2 lb |
| UPC | 00085347799497 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
Commonly Needed With This
Parts builders usually buy alongside this one — gaskets, seals and hardware for the install. These are suggestions, not a verified fit: call (714) 202-7886 to confirm before ordering.
