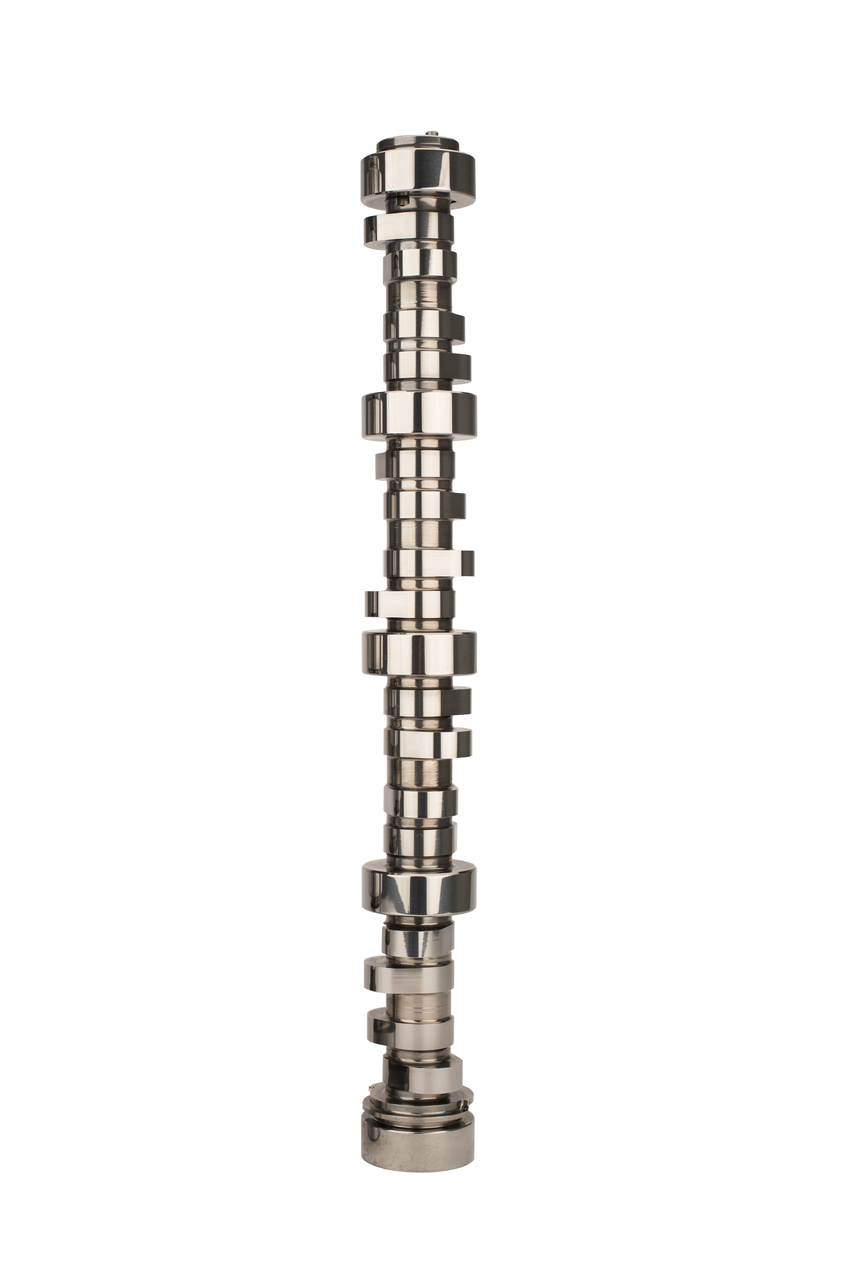

Camshaft, GM Gen IV LS2/LS3 Af M 262AFM15 (646-431-13)
036584238003
$682.95
4 interest-free payments or as low as $—/mo with Affirm. See if you qualify
In Stock
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 11.0 hrs — $1,375 at $125/hr. Pick Install at HRC and a 20% labor deposit ($275) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam
| Part Type | Engine Camshaft |
|---|---|
| Camshaft Series | XFI AFM |
| Cam Type | Hydraulic Roller |
| Grind Number | 262AFM15 |
| Basic Operating RPM Range | 1,600-6,300 RPM |
| Lobe Separation | 115° |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Engine Family | GM LS2/LS3 GEN IV Single-Bolt w/ AFM and w/o VVT 8 Cylinder (2005-2014) |
| Lifter Type | Hydraulic Roller |
| Title | XFI AFM 212/224 D, 210/222 N Hydraulic Roller Cam for GM GEN IV w/ AFM w/o VVT |
| Engine RPO Compatibility | LS4, L76, L77, LH6, LY5, LMG, LFA |
| Advertised Intake Duration Deactivation Cylinders | 275° |
| Advertised Exhaust Duration Deactivation Cylinders | 286° |
| Intake Duration at .050" Deactivation Cylinders | 212° |
| Exhaust Duration at .050" Deactivation Cylinders | 224° |
| Advertised Intake Duration Non-Deactivation Cylinders | 262° |
| Advertised Exhaust Duration Non-Deactivation Cylinders | 274° |
| Intake Duration at .050" Non-Deactivation Cylinders | 210° |
| Exhaust Duration at .050" Non-Deactivation Cylinders | 222° |
| Intake Valve Lift Deactivation Cylinders | 0.5" |
| Exhaust Valve Lift Deactivation Cylinders | 0.5" |
| Intake Valve Lift Non-Deactivation Cylinders | 0.5" |
| Exhaust Valve Lift Non-Deactivation Cylinders | 0.5" |
| AFM Delete Camshaft Core Prefix | 146- |
| Amazon ASIN | B0066ST5MO |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | 262AFM15 |
| Weight | 10 lb |
| UPC | 036584238003 |
| Country of Origin | USA |
Verified fitment · 310 applications
- Buick Rainier CXL 5.3L (2005–2007)
- Buick Rainier CXL Plus 5.3L (2005)
- Cadillac Escalade Hybrid 6.0L (2009)
- Chevrolet Avalanche Black Diamond LS 5.3L (2013)
- Chevrolet Avalanche Black Diamond LT 5.3L (2013)
- Chevrolet Avalanche Black Diamond LTZ 5.3L (2013)
- Chevrolet Avalanche LS 5.3L (2007–2012)
- Chevrolet Avalanche LT 5.3L (2007–2012)
- Chevrolet Avalanche LT 6.0L (2007–2009)
- Chevrolet Avalanche LTZ 5.3L (2007–2012)
- Chevrolet Avalanche LTZ 6.0L (2007–2009)
- Chevrolet Caprice PPV 6.0L (2011–2017)
- Chevrolet Cheyenne Base 5.3L (2007–2009)
- Chevrolet Cheyenne Cheyenne 5.3L (2016)
- Chevrolet Silverado 1500 Hybrid 6.0L (2009)
- Chevrolet Silverado 1500 LS 5.3L (2010–2013)
- Chevrolet Silverado 1500 LT 5.3L (2007–2013)
- Chevrolet Silverado 1500 LT 6.0L (2007–2009)
- Chevrolet Silverado 1500 LTZ 5.3L (2007–2013)
- Chevrolet Silverado 1500 LTZ 6.0L (2007–2009)
- Chevrolet Silverado 1500 WT 5.3L (2007–2013)
- Chevrolet Suburban 1500 LS 5.3L (2007–2014)
- Chevrolet Suburban 1500 LT 5.3L (2007–2014)
- Chevrolet Suburban 1500 LT 6.0L (2007–2009)
- Chevrolet Suburban 1500 LTZ 5.3L (2007–2014)
- Chevrolet Suburban 1500 LTZ 6.0L (2007–2009)
- Chevrolet Tahoe Hybrid 6.0L (2008–2009)
- Chevrolet Tahoe LS 5.3L (2007–2014)
- Chevrolet Tahoe LT 5.3L (2007–2014)
- Chevrolet Tahoe LTZ 5.3L (2007–2014)
- Chevrolet Tahoe PPV 5.3L (2012–2014)
- Chevrolet Tahoe SSV 5.3L (2012–2014)
- Chevrolet Trailblazer Base 5.3L (2008)
- Chevrolet Trailblazer EXT LS 5.3L (2005–2006)
- Chevrolet Trailblazer EXT LT 5.3L (2005–2006)
- Chevrolet Trailblazer LS 5.3L (2006–2007)
- Chevrolet Trailblazer LT 5.3L (2006–2008)
- GMC Envoy Denali 5.3L (2005–2009)
- GMC Envoy XL Denali 5.3L (2005–2006)
- GMC Envoy XL SLE 5.3L (2005)
- GMC Envoy XL SLT 5.3L (2005)
- GMC Envoy XUV SLE 5.3L (2005)
- GMC Envoy XUV SLT 5.3L (2005)
- GMC Sierra 1500 Hybrid 6.0L (2009)
- GMC Sierra 1500 SL 5.3L (2010–2013)
- GMC Sierra 1500 SLE 5.3L (2007–2013)
- GMC Sierra 1500 SLE 6.0L (2007–2009)
- GMC Sierra 1500 SLT 5.3L (2007–2013)
- GMC Sierra 1500 SLT 6.0L (2007–2009)
- GMC Sierra 1500 WT 5.3L (2007–2013)
- GMC Yukon Base 5.3L (2007–2009)
- GMC Yukon Hybrid 6.0L (2008–2009)
- GMC Yukon SLE 5.3L (2007–2014)
- GMC Yukon SLT 5.3L (2007–2014)
- GMC Yukon XL 1500 SLE 5.3L (2007–2014)
- GMC Yukon XL 1500 SLE 6.0L (2007–2009)
- GMC Yukon XL 1500 SLT 5.3L (2007–2014)
- GMC Yukon XL 1500 SLT 6.0L (2007–2009)
- Pontiac G8 GT 6.0L (2008–2009)
| Part No. | 646-431-13 |
|---|---|
| Brand | COMP Cams |
| Part Type | Engine Camshaft |
| Weight | 10 lb |
| UPC | 036584238003 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
