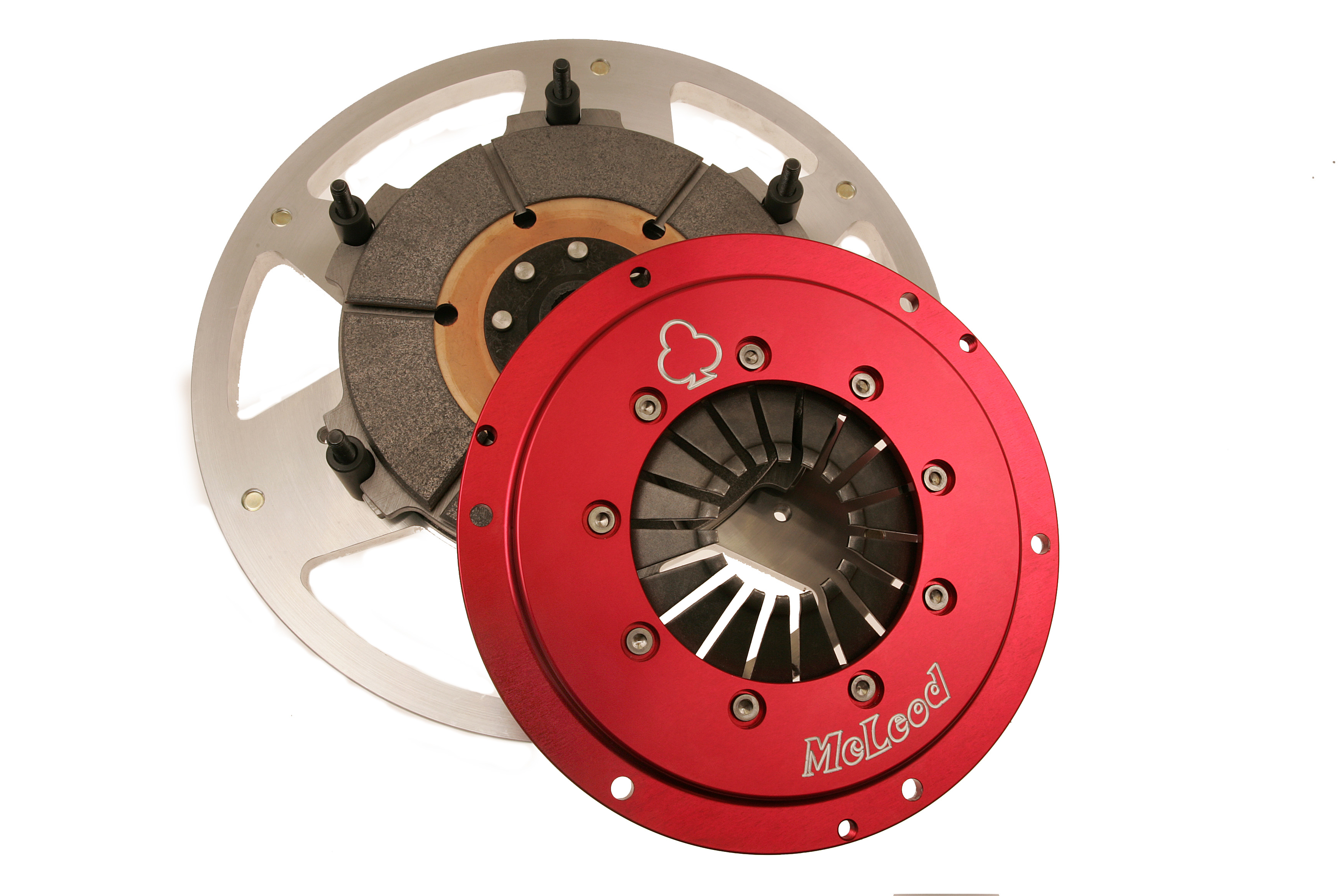

McLeod Mag Force Clutch & Flywheel Kit – 3 Disc, Pin Drive, Ford 1958-76 BBF Fe 332-428 (651333-00-03)
008877536745314 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 10.0 hrs — $1,250 at $125/hr. Pick Install at HRC and a 20% labor deposit ($250) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
Mag Force: 3 Disc: Pin Drive: Ford 1958-76 BBF Fe 332-428: 1-1/16 x 10: 184T
Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.
- Ceramic Discs
- Pin or Strap Drive
- Oval Track, Road Racing and Dry Lakes usage
- Single Disc (500Ft Tq)
- Double Disc (900 Ft Tq)
- Triple Disc (1500 Ft Tq
| Part Type | Transmission Clutch and Flywheel Kit |
|---|---|
| Disc Diameter (in.) | 8.000 |
| Input Shaft Diameter (in.) | 1.063 |
| Input Spline Quantity | 10 |
| Disc Material | Sintered Iron |
| Disc Style | Full face |
| Hub Style | Solid |
| Pressure Plate Style | Diaphragm |
| Counterweight Assist | No |
| Clutch Disc Quantity | 3 |
| Clutch Usage | Performance |
| Alignment Tool Included | Yes |
| Hardware Included | Yes |
| Pilot Bushing Included | No |
| Throwout Bearing Included | No |
| Flywheel Included | Yes |
| Flywheel Material | Billet aluminum |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Ring Gear Tooth Quantity | 184-tooth |
| Engine Balance | Internal |
| Quantity | Sold as a kit. |
| Counter Weight Kit if Required | 563333 (sold separately) |
Verified fitment — 327 applications
- Ford
- 300 1963 (5.8L)
- 300 1963 (7.0L)
- 300 1963 (6.4L)
- Custom 1964–1967 (5.8L)
- Custom 1964–1971 (6.4L)
- Custom 1964–1970 (7.0L)
- F-100 1958–1967 (5.8L)
- F-100 1960–1963 (5.4L)
- F-100 1968–1975 (5.9L)
- F-100 1968–1975 (6.4L)
- F-150 1975–1976 (6.4L)
- F-150 1975–1976 (5.9L)
- F-250 1958–1967 (5.8L)
- F-250 1960–1963 (5.4L)
- F-250 1968–1976 (6.4L)
- F-250 1968–1976 (5.9L)
- F-350 1958–1967 (5.8L)
- F-350 1960–1963 (5.4L)
- F-350 1964–1976 (5.9L)
- F-350 1968–1976 (6.4L)
- F-500 1975–1976 (5.9L)
- F-500 1975–1976 (6.4L)
- Fairlane 1958–1966 (5.8L)
- Fairlane 1958–1959 (5.4L)
- Fairlane 1961–1969 (6.4L)
- Fairlane 1964–1969 (7.0L)
- GT40 1966–1969 (7.0L)
- Galaxie 1959 (5.4L)
- Galaxie 1959–1967 (5.8L)
- Galaxie 1961–1967 (6.4L)
- Galaxie 1963–1967 (7.0L)
- Galaxie 500 1968–1970 (7.0L)
- Galaxie 500 1968–1971 (6.4L)
- LTD 1966–1970 (7.0L)
- LTD 1966–1971 (6.4L)
- LTD 1966–1967 (5.8L)
- M-400 1972–1973 (6.4L)
- M-400 1972–1973 (5.9L)
- Mustang 1967–1969 (6.4L)
- Mustang 1968–1970 (7.0L)
- P-350 1965–1967 (5.8L)
- P-350 1968–1974 (6.4L)
- P-350 1968–1974 (5.9L)
- Ranchero 1958–1967 (5.8L)
- Ranchero 1967–1969 (6.4L)
- Ranchero 1968–1969 (7.0L)
- Thunderbird 1958–1960 (5.8L)
- Thunderbird 1958–1959 (5.4L)
- Torino 1968–1970 (6.4L)
- Torino 1968–1970 (7.0L)
Ford & GM applications shown (ACES-verified). Confirm exact trim before purchase.
| Part No. | 651333-00-03 |
|---|---|
| Brand | McLeod Racing |
| Part Type | Transmission Clutch and Flywheel Kit |
| Weight | 27 lb |
| UPC | 00887753674531 |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
