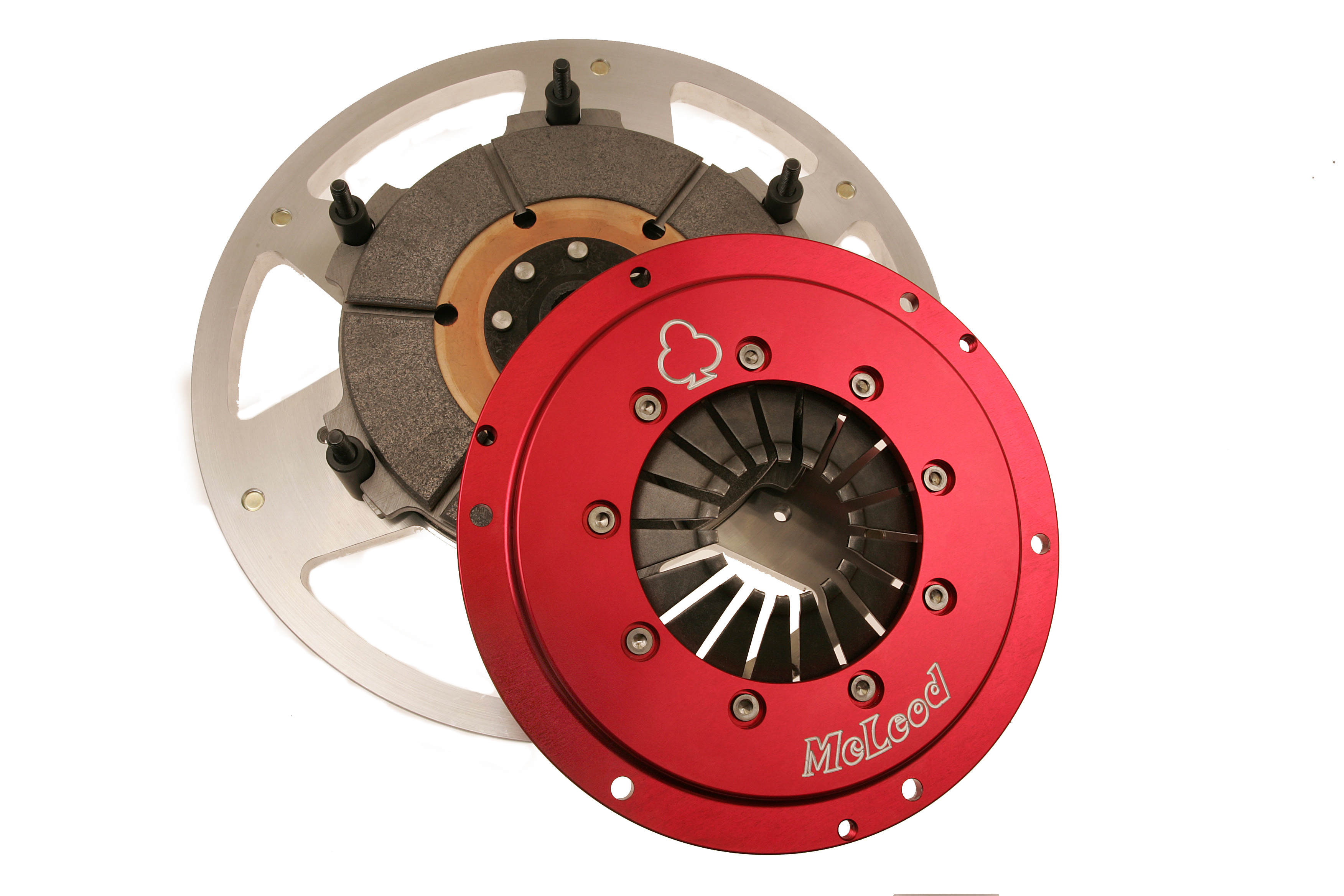

McLeod Mag Force Clutch & Flywheel Kit – 3 Disc, Pin Drive, Chevrolet 1955-85 SBC (651023-00-04)
008877536749374 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal — verify fitment for your application
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 10.0 hrs — $1,250 at $125/hr. Pick Install at HRC and a 20% labor deposit ($250) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
Mag Force: 3 Disc: Pin Drive: Chevrolet 1955-85 SBC: 1-1/8 x 10: 168T
Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.
- Ceramic Discs
- Pin or Strap Drive
- Oval Track, Road Racing and Dry Lakes usage
- Single Disc (500Ft Tq)
- Double Disc (900 Ft Tq)
- Triple Disc (1500 Ft Tq
| Part Type | Transmission Clutch and Flywheel Kit |
|---|---|
| Disc Diameter (in.) | 8.000 |
| Input Shaft Diameter (in.) | 1.125 |
| Input Spline Quantity | 10 |
| Disc Material | Sintered Iron |
| Disc Style | Full face |
| Hub Style | Solid |
| Clutch Disc Quantity | 3 |
| Pressure Plate Style | Diaphragm |
| Clutch Usage | Performance |
| Hardware Included | Yes |
| Alignment Tool Included | Yes |
| Pilot Bushing Included | No |
| Throwout Bearing Included | No |
| Flywheel Included | Yes |
| Flywheel Material | Billet aluminum |
| Ring Gear Tooth Quantity | 168-tooth |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Engine Balance | Internal |
| Quantity | Sold as a kit. |
| Counter Weight Kit if Required | 560222 (sold separately) |
| Rear Main Seal Style | 2-piece |
Verified fitment — 662 applications
- Chevrolet
- Bel Air 1957–1967 (4.6L)
- Bel Air 1961–1965 (6.7L)
- Bel Air 1962–1969 (5.3L)
- Bel Air 1963–1969 (7.0L)
- Bel Air 1965–1969 (6.5L)
- Bel Air 1968 (5.0L)
- Bel Air 1969–1973 (5.7L)
- Bel Air 1970–1973 (7.4L)
- Bel Air 1970–1973 (6.6L)
- Biscayne 1958–1967 (4.6L)
- Biscayne 1961–1965 (6.7L)
- Biscayne 1962–1969 (5.3L)
- Biscayne 1963–1969 (7.0L)
- Biscayne 1965–1969 (6.5L)
- Biscayne 1968 (5.0L)
- Biscayne 1969–1972 (5.7L)
- Biscayne 1970–1972 (7.4L)
- Biscayne 1970–1972 (6.6L)
- Brookwood 1969 (6.5L)
- Brookwood 1969 (7.0L)
- Brookwood 1969 (5.3L)
- Brookwood 1969–1972 (5.0L)
- Brookwood 1969–1972 (5.7L)
- Brookwood 1970–1972 (7.4L)
- Brookwood 1970–1972 (6.6L)
- Camaro 1967–1969 (6.5L)
- Camaro 1967–1969 (4.9L)
- Camaro 1967–1981 (5.7L)
- Camaro 1967–1969 (5.3L)
- Camaro 1969 (7.0L)
- Camaro 1969–1985 (5.0L)
- Camaro 1970–1972 (6.6L)
- Caprice 1966–1967 (4.6L)
- Caprice 1966–1969 (5.3L)
- Caprice 1966–1969 (7.0L)
- Caprice 1966–1969 (6.5L)
- Caprice 1968–1972 (5.0L)
- Caprice 1969–1972 (5.7L)
- Caprice 1970–1972 (6.6L)
- Caprice 1970–1972 (7.4L)
- Chevelle 1964–1967 (5.3L)
- Chevelle 1964–1967 (4.6L)
- Chevelle 1965–1967 (6.5L)
- Chevelle 1968–1972 (5.0L)
- Chevelle 1970–1972 (7.4L)
- Chevelle 1970–1972 (5.7L)
- Chevelle 1970–1972 (6.6L)
- Chevy II 1963–1967 (4.6L)
- Chevy II 1965–1967 (5.3L)
- Corvette 1957–1961 (4.6L)
- Corvette 1962–1968 (5.3L)
- Corvette 1965 (6.5L)
- Corvette 1966–1969 (7.0L)
- Corvette 1969–1985 (5.7L)
- Corvette 1970–1974 (7.4L)
- Corvette 1980 (5.0L)
- Del Ray 1958 (4.6L)
- Impala 1958–1967 (4.6L)
- Impala 1961–1965 (6.7L)
- Impala 1962–1969 (5.3L)
Showing top 60 model lines; 662 total applications. See full fitment guide.
Ford & GM applications shown (ACES-verified). Confirm exact trim before purchase.
| Part No. | 651023-00-04 |
|---|---|
| Brand | McLeod Racing |
| Part Type | Transmission Clutch and Flywheel Kit |
| Weight | 27 lb |
| UPC | 00887753674937 |
