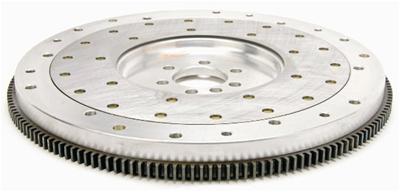

McLeod Aluminum Flywheels – Chevrolet 1997-13 LS-X 6 Bolt Crank, 168T, 15 Lbs (560530)
008877530120124 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 9.0 hrs — $1,125 at $125/hr. Pick Install at HRC and a 20% labor deposit ($225) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
Flywheel: Aluminum: Chevrolet 1997-13 LS-X 6 Bolt Crank: 168T: 15 Lbs
Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.
- Billet Aluminum 6060-T6
- 1045 Steel Hardened Ring Gear
- SFI rated
| Part Type | Clutch Flywheel |
|---|---|
| Flywheel Material | Billet aluminum |
| Marine Use | No |
| Replaceable Friction Surface | Yes |
| Engine Balance | Internal |
| Quantity | Sold individually. |
| Ring Gear Tooth Quantity | 168-tooth |
| SFI 1.1 Approved | Yes |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Disc Diameter (in.) | 11.000/12.000 in. |
| Pressure Plate Style | Borg & Beck/Diaphragm |
| Rear Main Seal Style | 1-piece |
| Weight | 15.000 lbs. |
Verified fitment — 335 applications
- Chevrolet
- Camaro 1998–2002 (5.7L)
- Camaro 2010–2013 (6.2L)
- Corvette 1997–2004 (5.7L)
- Corvette 2005–2007 (6.0L)
- Corvette 2006–2013 (7.0L)
- Corvette 2008–2013 (6.2L)
- SSR 2005–2006 (6.0L)
- Silverado 1500 2001–2006 (4.8L)
- Silverado 1500 2001–2006 (5.3L)
- Silverado 1500 2004 (6.0L)
- Silverado 1500 Classic 2007 (5.3L)
- Silverado 1500 Classic 2007 (4.8L)
- Silverado 1500 HD 2002 (6.0L)
- Silverado 2500 2001–2004 (6.0L)
- Silverado 2500 HD 2001–2006 (6.0L)
- Silverado 2500 HD Classic 2007 (6.0L)
- Silverado 3500 2001–2006 (6.0L)
- Silverado 3500 Classic 2007 (6.0L)
- GMC
- Sierra 1500 2001–2006 (5.3L)
- Sierra 1500 2001–2006 (4.8L)
- Sierra 1500 2004–2005 (6.0L)
- Sierra 1500 Classic 2007 (5.3L)
- Sierra 1500 Classic 2007 (4.8L)
- Sierra 2500 2001–2004 (6.0L)
- Sierra 2500 HD 2001–2006 (6.0L)
- Sierra 2500 HD Classic 2007 (6.0L)
- Sierra 3500 2001–2006 (6.0L)
- Sierra 3500 Classic 2007 (6.0L)
- Pontiac
- Firebird 1998–2002 (5.7L)
- GTO 2004 (5.7L)
- GTO 2005–2006 (6.0L)
Ford & GM applications shown (ACES-verified). Confirm exact trim before purchase.
| Part No. | 560530 |
|---|---|
| Brand | McLeod Racing |
| Part Type | Clutch Flywheel |
| Weight | 15 lb |
| UPC | 00887753012012 |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
Commonly Needed With This
Parts builders usually buy alongside this one — gaskets, seals and hardware for the install. These are suggestions, not a verified fit: call (714) 202-7886 to confirm before ordering.
