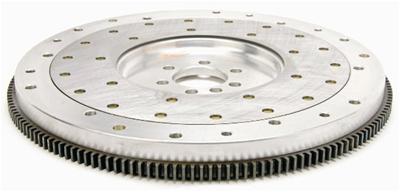

McLeod Aluminum Flywheels – Chevrolet, 1986-99 SBC, 1pc Rear Seal (560360)
008877533141924 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 9.0 hrs — $1,125 at $125/hr. Pick Install at HRC and a 20% labor deposit ($225) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
Flywheel: Aluminum: Chevrolet: 1986-99 SBC: 1pc Rear Seal: 153T: 15 lbs.
Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.
- Billet Aluminum 6060-T6
- 1045 Steel Hardened Ring Gear
- SFI rated
| Part Type | Clutch Flywheel |
|---|---|
| Flywheel Material | Billet aluminum |
| Marine Use | No |
| Replaceable Friction Surface | Yes |
| Engine Balance | Internal/External |
| Quantity | Sold individually. |
| Ring Gear Tooth Quantity | 153-tooth |
| SFI 1.1 Approved | Yes |
| Counter Weight Kit if Required | 560222 (sold separately) |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Disc Diameter (in.) | 10.500 |
| Pressure Plate Style | Borg & Beck/Diaphragm |
| Rear Main Seal Style | 1-piece |
| Weight | 15.000 lbs. |
Verified fitment — 71 applications
- Chevrolet
- Camaro 1986–1992 (5.0L)
- Camaro 1987–1992 (5.7L)
- Corvette 1986–1988 (5.7L)
- Pontiac
- Firebird 1986–1992 (5.0L)
- Firebird 1987–1992 (5.7L)
Ford & GM applications shown (ACES-verified). Confirm exact trim before purchase.
| Part No. | 560360 |
|---|---|
| Brand | McLeod Racing |
| Part Type | Clutch Flywheel |
| Weight | 15 lb |
| UPC | 00887753314192 |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
