Kit, LS1-6 Front Cover (5496)
0365842393384 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 6.0 hrs — $750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($150) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

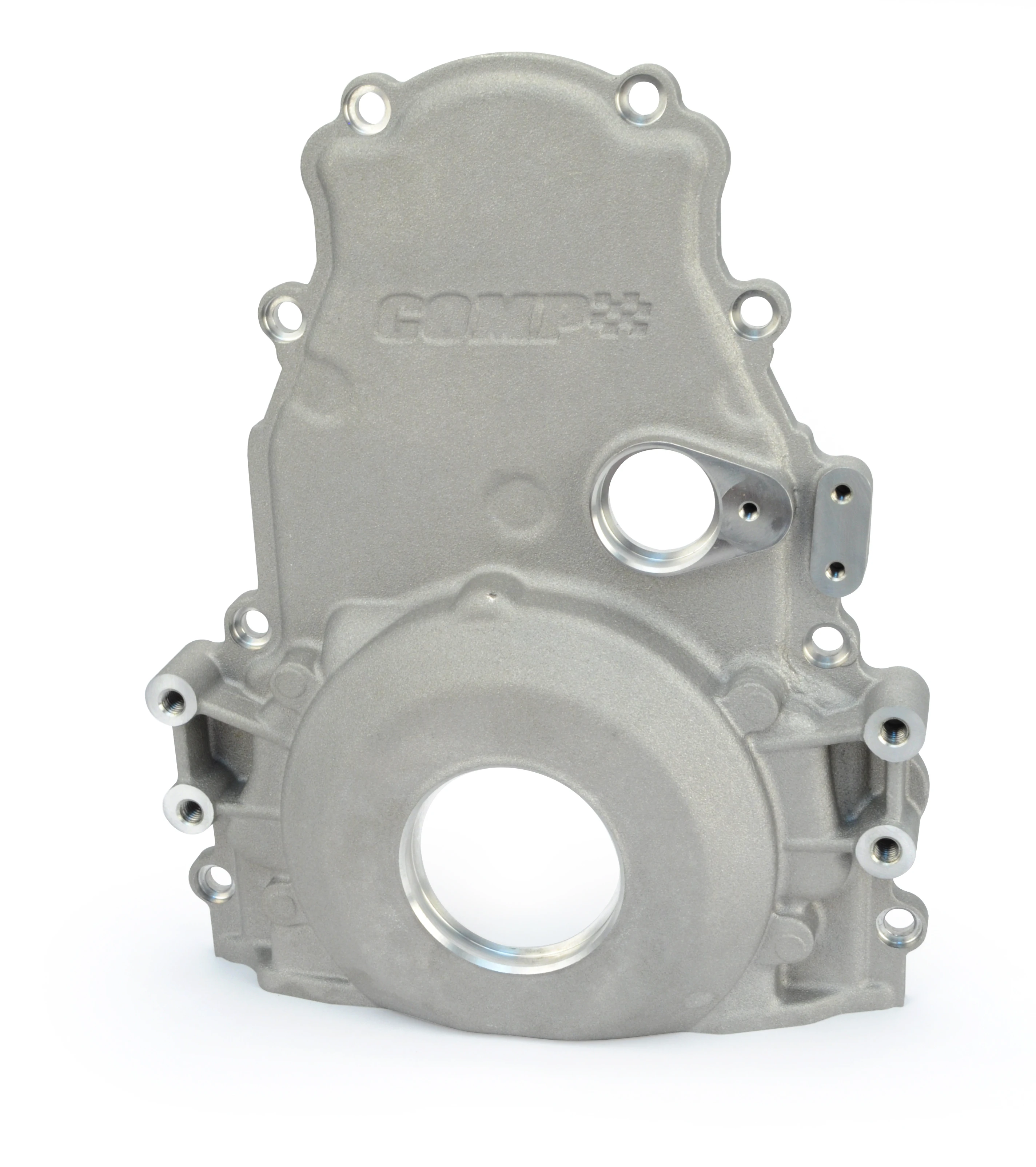

COMP Cams LS Timing Cover part # 5496 fits all GM LS Based blocks, OEM and aftermarket, including the RHS® LS Race Block. The cover has a unique design that allows it to work with both front and rear Cam sensor LS engines. It however will not work with the LS7s unique oil pump and chain tensioner setup (Part # 5497 will). These parts are not included with the purchase of an RHS Race Block but are available for purchase separately.
- Includes timing cover gasket and crank seal. Requires no modification to factory blocks. Variable Valve Timing equipped engines such as the L99, L92, LC9, L20, L9H, L96, LH9, LZ1, LMF, L94 and LC8 all require removal of VVT actuator to fit properly.
| Part Type | Engine Timing Cover |
|---|---|
| Hardware Included | Yes |
| Timing Cover Gasket Included | Yes |
| Amazon ASIN | B007KGM1JK |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| C.A.R.B. E.O. Number | N/A |
| Title | GM LS1, -2, -3, and -6 Timing Cover;LS/LS6 Front Cover for RHS or GM Block |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Weight | 6.81 lb |
| UPC | 036584239338 |
| Country of Origin | USA |
Verified fitment · 49 applications
- Cadillac CTS (2006–2007)
- Chevrolet Camaro (1998–2015)
- Chevrolet Corvette (1997–2013)
- Chevrolet SS (2014–2017)
- Chevrolet SSR (2005–2006)
- Chevrolet Trailblazer (2006–2009)
- Pontiac Firebird (1998–2002)
- Pontiac G8 (2009)
- Pontiac GTO (2004–2006)
| Part No. | 5496 |
|---|---|
| Brand | COMP Cams |
| Part Type | Engine Timing Cover |
| Weight | 6.81 lb |
| UPC | 036584239338 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
