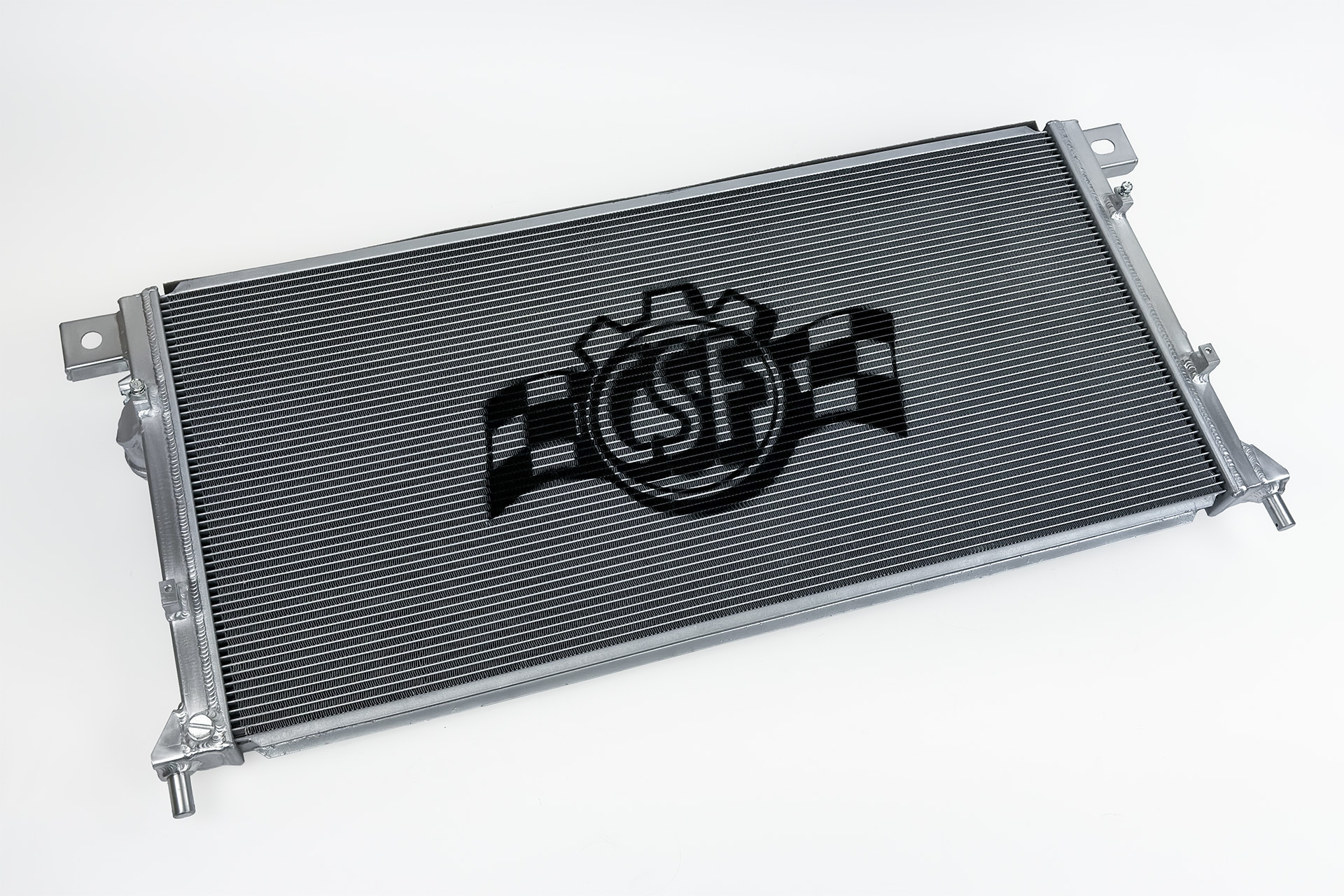

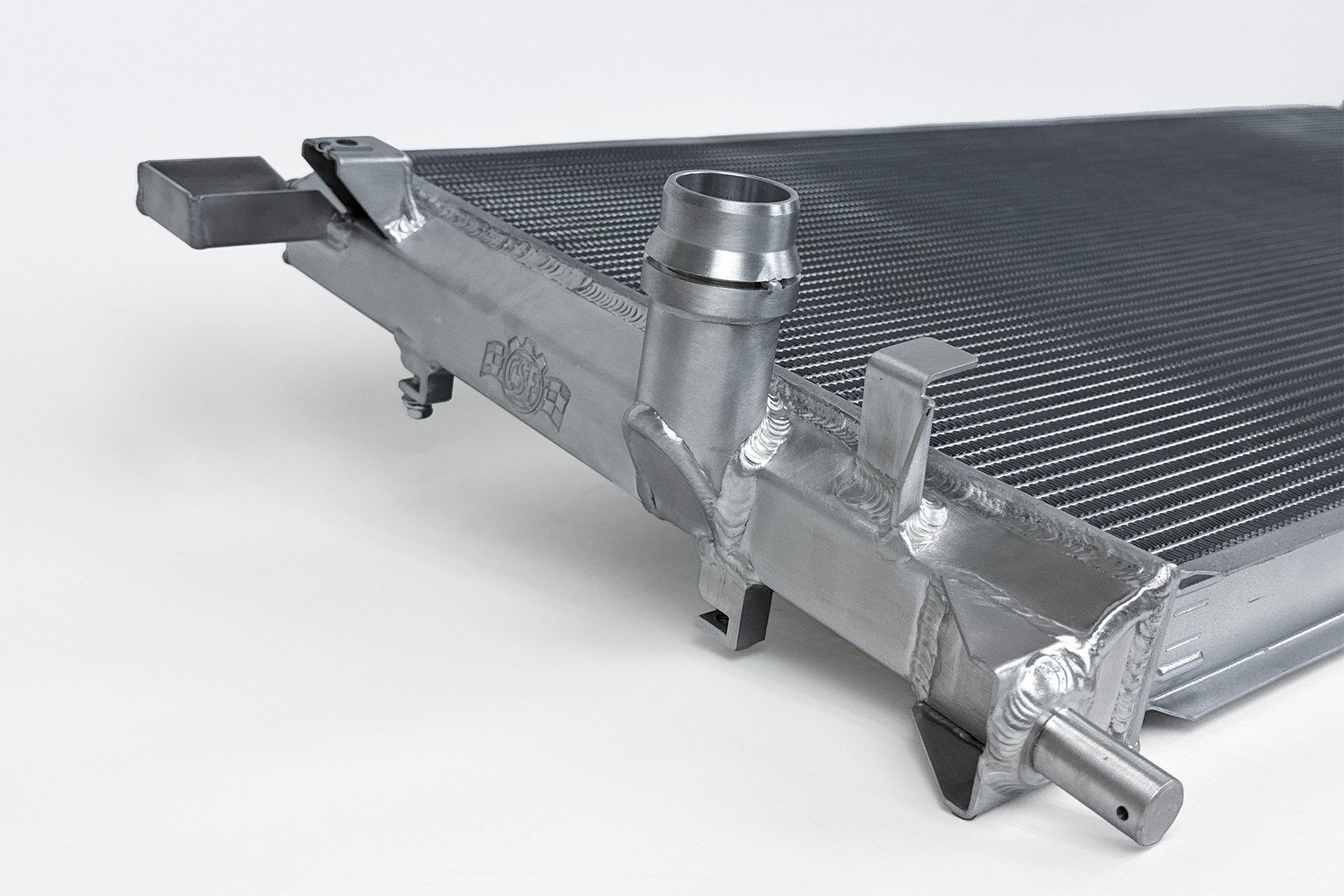

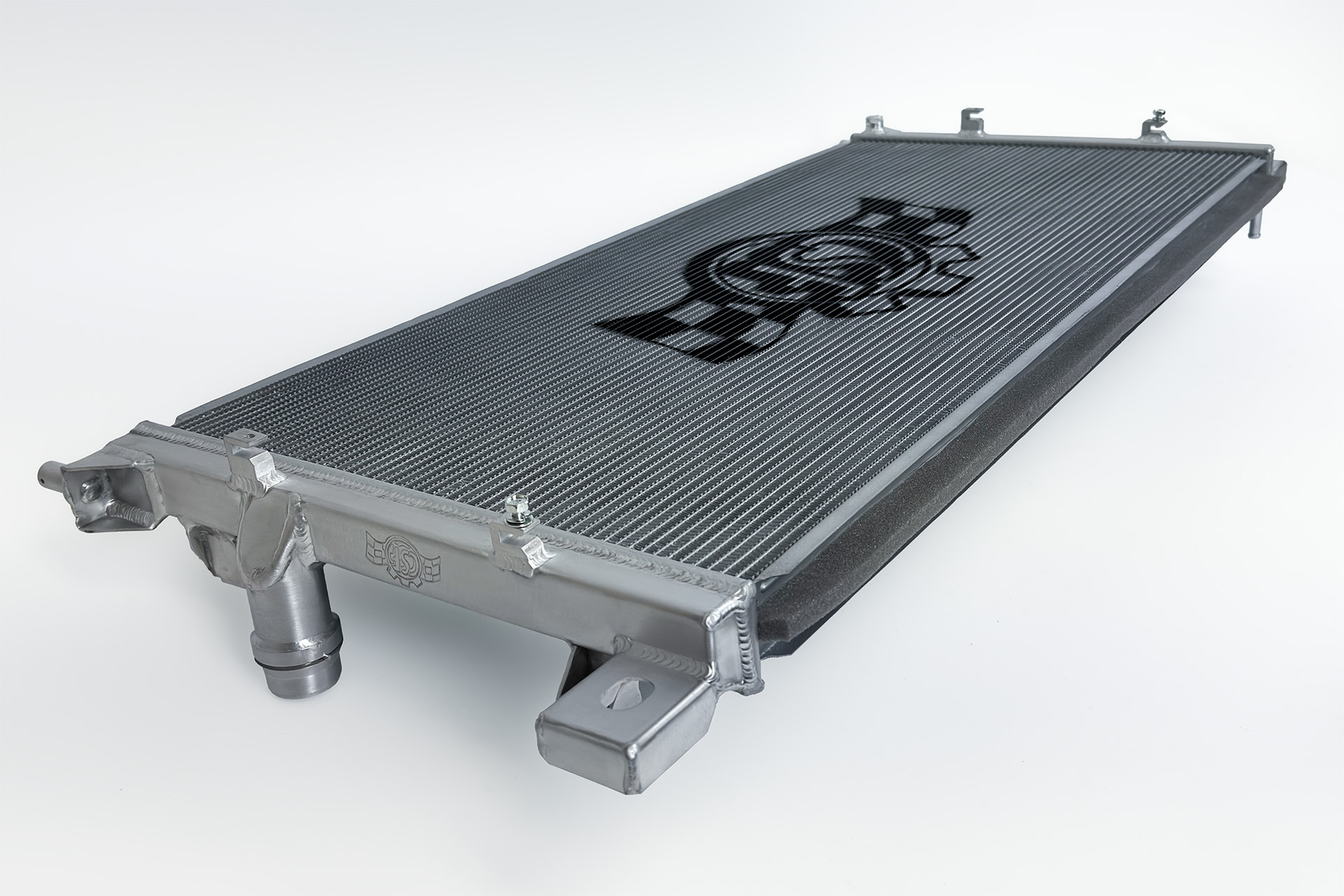

Ford Bronco & Ranger Heavy-Duty All-Aluminum Radiator (8228)
7103530822874 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal — verify fitment for your application
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 4.0 hrs — $500 at $125/hr. Pick Install at HRC and a 20% labor deposit ($100) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
CSF has a long and successful track record with off-road cooling systems. CSF produces some of the most popular and widely used performance radiators for a variety of off-road applications. In addition, this new Bronco/Ranger Radiator features CSF's latest Ultra-Efficient 5mm fin cooling technology. The new fin technology increases the heat transfer area over a traditional radiator by 20-25%.
- The CSF #8228 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
| Part Type | Radiator |
|---|---|
| Title | Ford Bronco & Ranger Heavy-Duty All-Aluminum Radiator |
| Core Row Quantity | 2 |
| Grade Type | Performance |
| Radiator Cap Included | No |
| Outlet Connector Type | Quick Connect |
| Inlet Connector Type | Quick Connect |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | No |
| Outlet Location | Bottom Left |
| Inlet Location | Top Right |
| Outlet Diameter | 39.5mm |
| Inlet Diameter | 39.5mm |
| Core Width | 388.5mm |
| Core Material | Aluminum |
| Core Thickness | 42mm |
| Core Height | 849mm |
| Mounting Hardware Included | No |
| Thermostat Included | No |
| Tank Material | Aluminum |
| Mounting Type | Mounts with OE Hardware |
| Frame Included | No |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Satin |
| Prop 65 Yes/No | No |
| ADD-ON | 8350 |
| Weight | 21 lb |
| UPC | 710353082287 |
| Country of Origin | ID |
Verified fitment · 95 applications
- Ford Bronco 2.3L (2021–2026)
- Ford Bronco 2.7L (2021–2026)
- Ford Bronco Badlands 2.3L (2021–2026)
- Ford Bronco Badlands 2.7L (2021–2026)
- Ford Bronco Big Bend 2.3L (2021–2026)
- Ford Bronco Big Bend 2.7L (2021–2024)
- Ford Bronco Black Diamond 2.3L (2021–2024)
- Ford Bronco Black Diamond 2.7L (2021–2024)
- Ford Bronco Everglades 2.3L (2022–2025)
- Ford Bronco First Edition 2.7L (2021)
- Ford Bronco Heritage Edition 2.3L (2023–2026)
- Ford Bronco Heritage Edition 2.7L (2024–2026)
- Ford Bronco Heritage Limited Edition 2.7L (2023–2024)
- Ford Bronco Outer Banks 2.3L (2021–2026)
- Ford Bronco Outer Banks 2.7L (2021–2026)
- Ford Bronco Stroppe Edition 2.7L (2025–2026)
- Ford Bronco Wildtrak 2.7L (2021–2024)
- Ford Ranger Lariat 2.3L (2024–2026)
- Ford Ranger Lariat 2.7L (2024–2026)
- Ford Ranger Raptor 3.0L (2024–2026)
- Ford Ranger Wildtrak 2.3L (2024–2026)
- Ford Ranger XL 2.3L (2024–2026)
- Ford Ranger XLT 2.3L (2024–2026)
- Ford Ranger XLT 2.7L (2024–2026)
| Part No. | 8228 |
|---|---|
| Brand | CSF |
| Part Type | Radiator |
| Weight | 21 lb |
| UPC | 710353082287 |
| Country of Origin | ID |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
