Ford 1986-93 5.0L Mustang 65mm Throttle Body, Satin Finish (3824)
000853470382444 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Coyote 5.0
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 2.0 hrs — $250 at $125/hr. Pick Install at HRC and a 20% labor deposit ($50) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

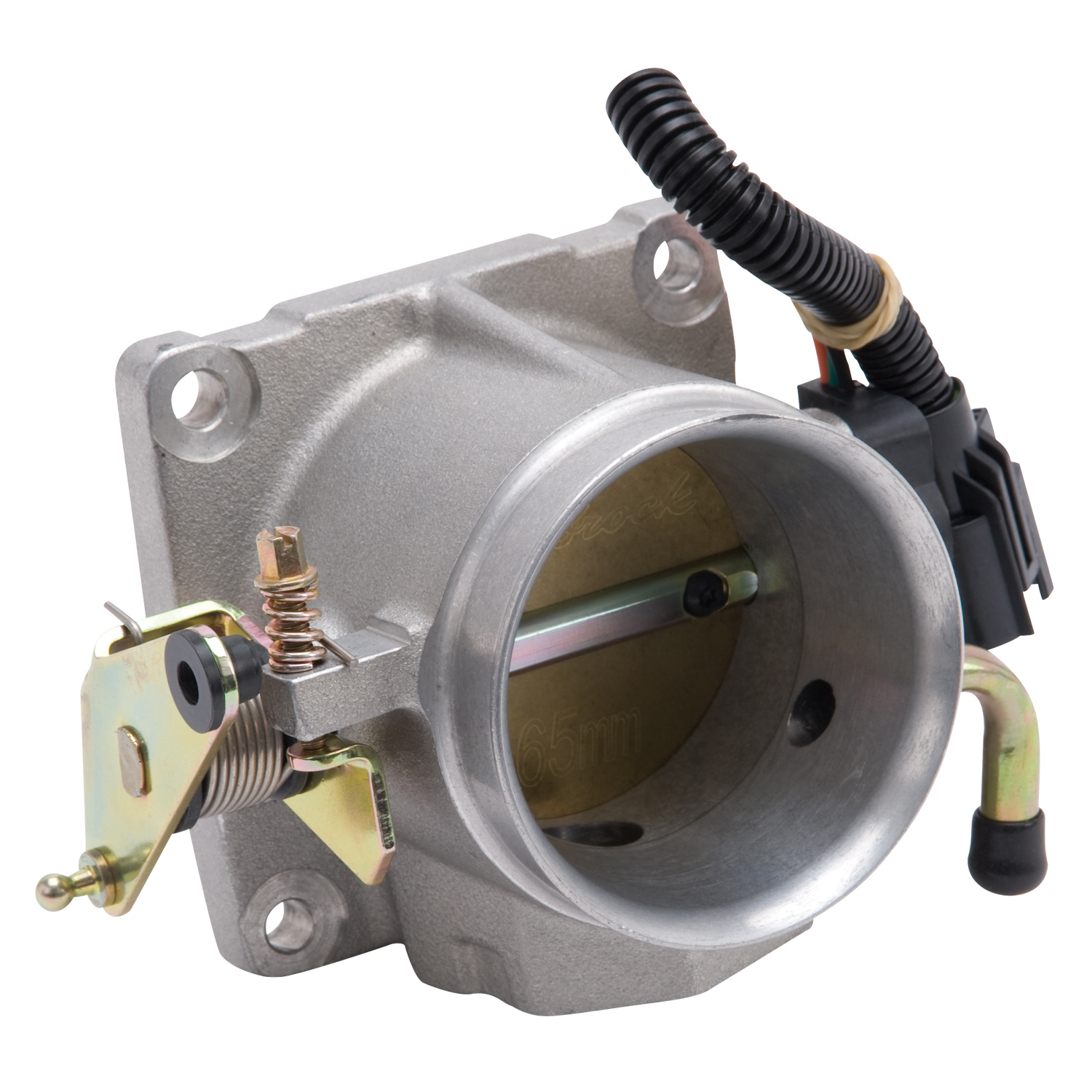

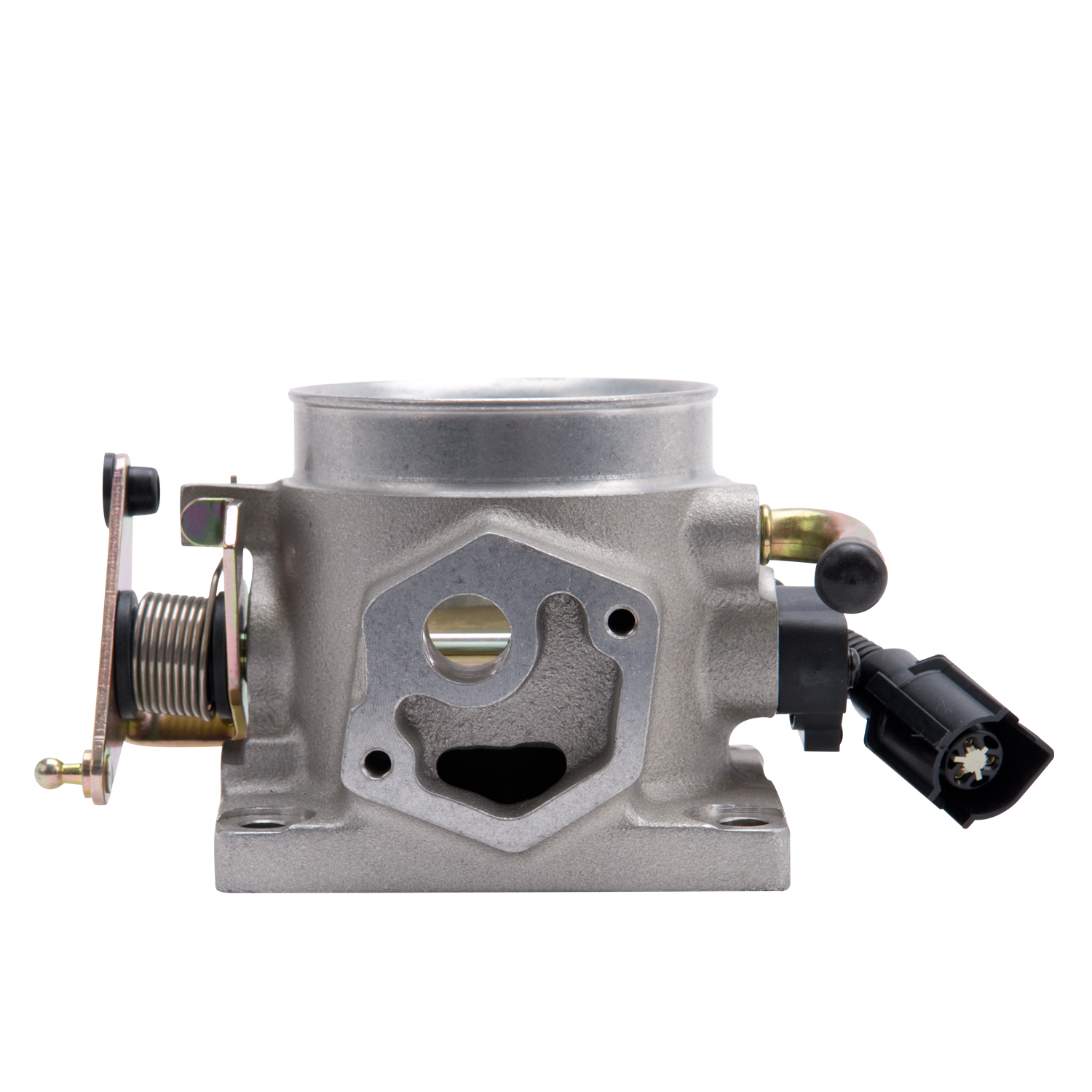

The Edelbrock #3824 65mm throttle body is cast, machined, and assembled by Edelbrock. The throttle body includes a throttle position sensor. The customer re-uses their original idle air bypass solenoid. The throttle body requires the use of the 65mm EGR plate (#3827). Both the throttle body and the EGR plate are covered by E.O. D-215-18. The 65mm combination fits stock applications, but gasket matching to a 65mm bore size is recommended for optimum results. It fits our #3821 manifold or Ford's GT-40 with no modifications. Satin Finish
| Part Type | Fuel Injection Throttle Body |
|---|---|
| Throttle Position Sensor Included | Yes |
| Fuel System Grade | All |
| Fuel System Type | Gas |
| Throttle Body Material | Aluminum |
| Inlet Diameter | 3.250" |
| Airflow Rate | 650 |
| Fuel System Injection Type | Port |
| 9040 | D-215-75 |
| Gasket Or Seal Included | Yes |
| Inlet Type | Single |
| Outlet Type | Single Blade |
| Outlet Diameter | 65.0 mm |
| Bore Diameter | 65.0 mm |
| Throttle Body Finish | Satin |
| Throttle Body Spacer Included | No |
| Venturi Quantity | 1 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fuel Injectors Included | No |
| Idle Air Control Motor Included | No |
| Throttle Body Type | Single Blade |
| Throttle Body Spacer Color | Natural |
| Weight | 2.85 lb |
| UPC | 00085347038244 |
| Country of Origin | USA |
Verified fitment · 8 applications
- Ford Mustang 5.0L (1986–1993)
| Part No. | 3824 |
|---|---|
| Brand | Edelbrock |
| Part Type | Fuel Injection Throttle Body |
| Weight | 2.85 lb |
| UPC | 00085347038244 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
