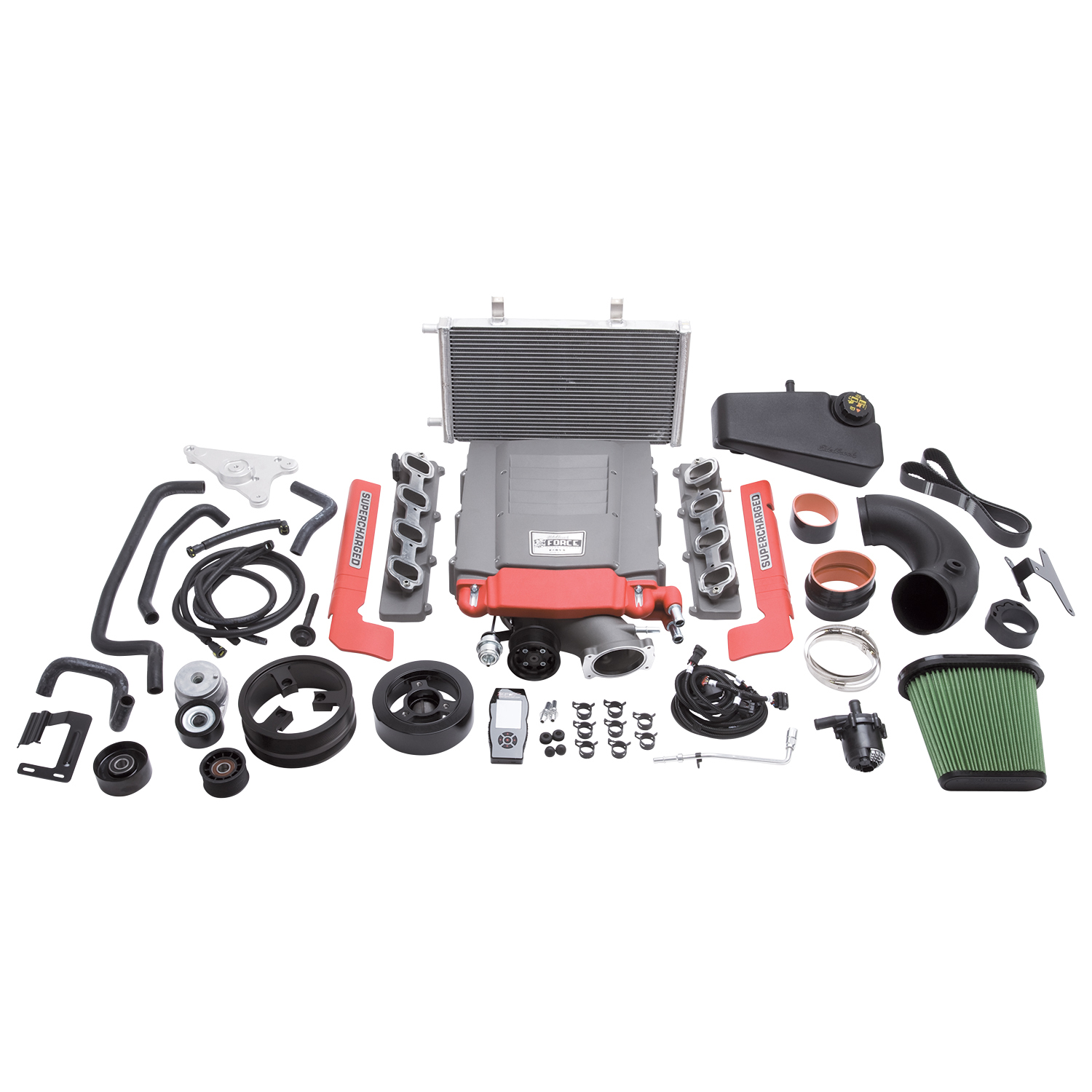

The Edelbrock supercharger stage 2 street/strip system part #15701 for 2014-19 Chevy Corvette Stingray Z51 LT1 increases the performance of your LT1 engine to 537 horsepower and 527 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #15701 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Part Type | Supercharger Kit |
|---|---|
| Oil Capacity | 150 mL |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Maximum Torque | 527RW (With 91 Octane); 534RW (With 93 Octane) |
| Harmonic Balancer Diameter | Stock |
| Calibration | Yes |
| Mounting Hardware Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Outside Pulley Diameter | 3.25" |
| Tensioner Included | Yes |
| Maximum Boost Pressure | 7.5 |
| Pulley Belt Width | 10-Rib |
| Mounting Bracket Included | Yes |
| 9040 | D-215-103 |
| Vehicle Model | Corvette |
| Gasket Or Seal Included | Yes |
| Maximum Pressure Reading | 7.5 |
| Hose Included | Yes |
| System Type | Stage 2 - Street/Strip System |
| Housing Material | Cast Aluminum |
| Rotor Type | Eaton TVS 2300 |
| Internal Step Up | Yes |
| Maximum Horsepower | 536RW (With 91 Octane); 551RW (With 93 Octane) |
| Quantity | Kit |
| Universal Or Specific Fit | Specific |
| Air Filter Included | Yes |
| Weight | 164 lb |
| UPC | 00085347157013 |
| Country of Origin | USA |
Verified fitment · 4 applications
- Chevrolet Corvette (2014–2016)
- Chevrolet Corvette Stingray (2017)
| Part No. | 15701 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 164 lb |
| UPC | 00085347157013 |
| Country of Origin | USA |
