Edelbrock Supercharger #1570 14-19 Corvette Stingray Z51/Grand Sport W/ Dry Sump (1570)
000853470157024 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

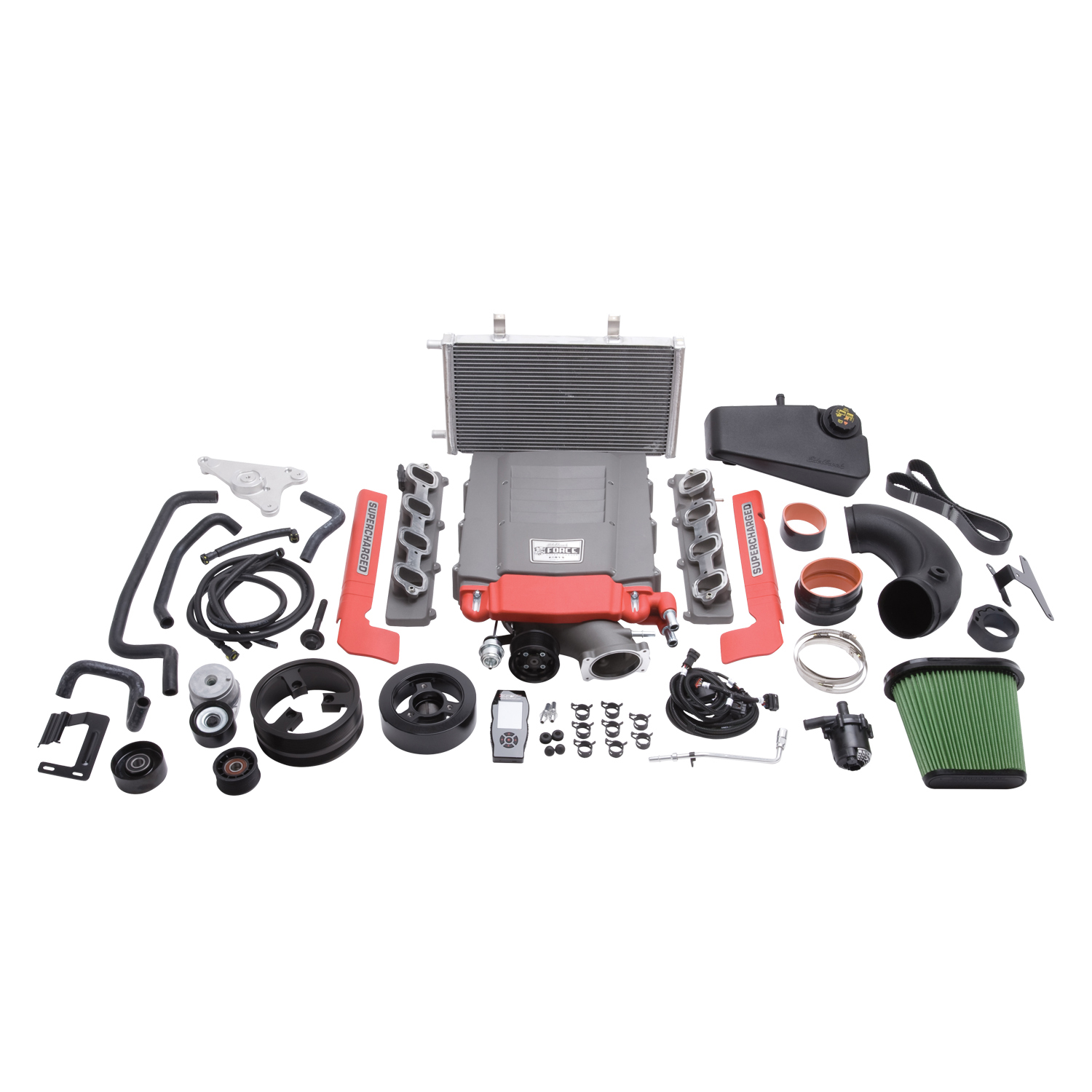

The Edelbrock supercharger Stage 1 Street System part #1570 for 2014-19 Corvette Stingray Z51 increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1570 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Part Type | Supercharger Kit |
|---|---|
| System Type | Stage 1 - Street System |
| Tensioner Included | Yes |
| Calibration | Yes |
| Pulley Belt Width | 10-Rib |
| Maximum Horsepower | 624 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Air Filter Included | Yes |
| Oil Capacity | 150 mL |
| Internal Step Up | Yes |
| Quantity | Kit |
| Maximum Torque | 600 |
| Rotor Type | Eaton TVS 2300 |
| Mounting Bracket Included | Yes |
| Maximum Pressure Reading | 5.5 |
| Universal Or Specific Fit | Specific |
| Harmonic Balancer Diameter | 7.5" |
| Vehicle Model | Corvette |
| Housing Material | Cast Aluminum |
| Hose Included | Yes |
| Outside Pulley Diameter | 3.5" |
| Maximum Boost Pressure | 5.5 |
| Gasket Or Seal Included | Yes |
| Center Housing Cooling Type | Intercooler |
| 9040 | D-215-103 |
| Mounting Hardware Included | Yes |
| Weight | 164 lb |
| UPC | 00085347015702 |
| Country of Origin | USA |
Verified fitment · 4 applications
- Chevrolet Corvette (2014–2016)
- Chevrolet Corvette Stingray (2017)
| Part No. | 1570 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 164 lb |
| UPC | 00085347015702 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
