Edelbrock Supercharger #156640 15-20 GM SUV & 14-18 GM Truck Gen V 6.2L W/O Tune (156640)
000853479996374 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal — verify fitment for your application
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

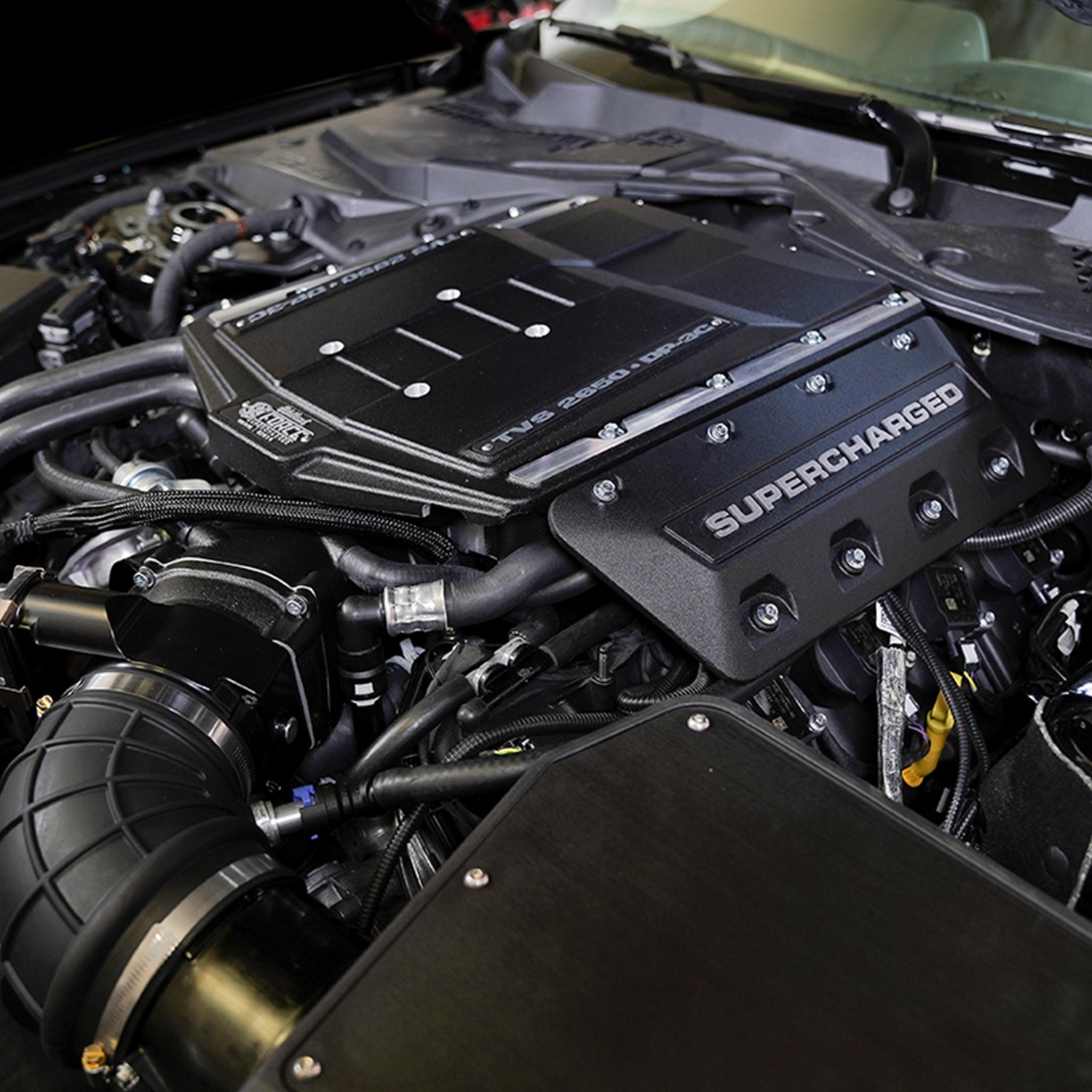

This addition to Edelbrock's expanding line of superchargers is highlighted by significant improvements for Chevrolet/GMC/Cadillac 2015-2020 SUVs and 2014-2018 full size trucks with the GM 6.2L L86 V8 engine. This is a bolt-on performance kit that is emissions legal in all 50 states and produces 576 horsepower with 537 ft-lbs of torque at the rear wheel. This is the perfect power adder whether you plan to tow a trailer, haul heavier loads, or you just want to feel your truck/SUV come to life without sacrificing daily drivability! The new Edelbrock supercharger Kit #156640 for Chevy/GMC/Cadillac trucks and SUVs is a complete redesign of our #1565 and #1566 kits featuring an all-new manifold that now houses R2650 TVS rotors for unparalleled efficiency and reliability. The Edelbrock supercharger Kit for the 6.2L V8 fits under the stock hood with absolutely no cutting or modifications required. And if you're concerned about the effect on MPG, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. This new kit is a true bolt-on that requires no additional modifications to the stock 6.2L engine. For those who want more power, the R2650 supercharger can support more than 1,000 horsepower at the flywheel with the right combination of parts. This Edelbrock supercharger features a self-contained lubrication system with a 100,000-mile service interval with a high-capacity Dual-Pass 3-Core (DP3C) integrated intercooler and comes finished in a durable black powder-coating that blends nicely with the engine. Each kit includes a complete set of preformed hoses, hardware and a full-color manual that provides clear step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by a free 3-year/36,000-mile warranty.
| Part Type | Supercharger Kit |
|---|---|
| Vehicle Model | Escalade |
| Rotor Type | Eaton TVS 2650 |
| Air Filter Included | Yes |
| Internal Step Up | Yes |
| 9040 | D-215-123 |
| Mounting Bracket Included | Yes |
| Calibration | No |
| Quantity | Kit |
| Universal Or Specific Fit | Specific |
| Center Housing Cooling Type | Intercooler |
| System Type | Stage 1 - Street System |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Mounting Hardware Included | Yes |
| Housing Material | Cast Aluminum |
| Pulley Belt Width | 6-Rib |
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Outside Pulley Diameter | 3.5" |
| Oil Capacity | 150 mL |
| Harmonic Balancer Diameter | 7.4" |
| Weight | 105 lb |
| UPC | 00085347999637 |
| Country of Origin | USA |
Verified fitment · 6 applications
- Cadillac Escalade 6.2L (2017)
- Cadillac Escalade ESV 6.2L (2017)
- Chevrolet Silverado 1500 6.2L (2017)
- GMC Sierra 1500 6.2L (2017)
- GMC Yukon Denali 6.2L (2017)
- GMC Yukon XL Denali 6.2L (2017)
| Part No. | 156640 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 105 lb |
| UPC | 00085347999637 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
