Edelbrock Stg 2 Complete Supercharger #15896 11-14 Ford Mustang 5.0L 4V W/ Tune (15896)
000853471589664 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Coyote 5.0
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

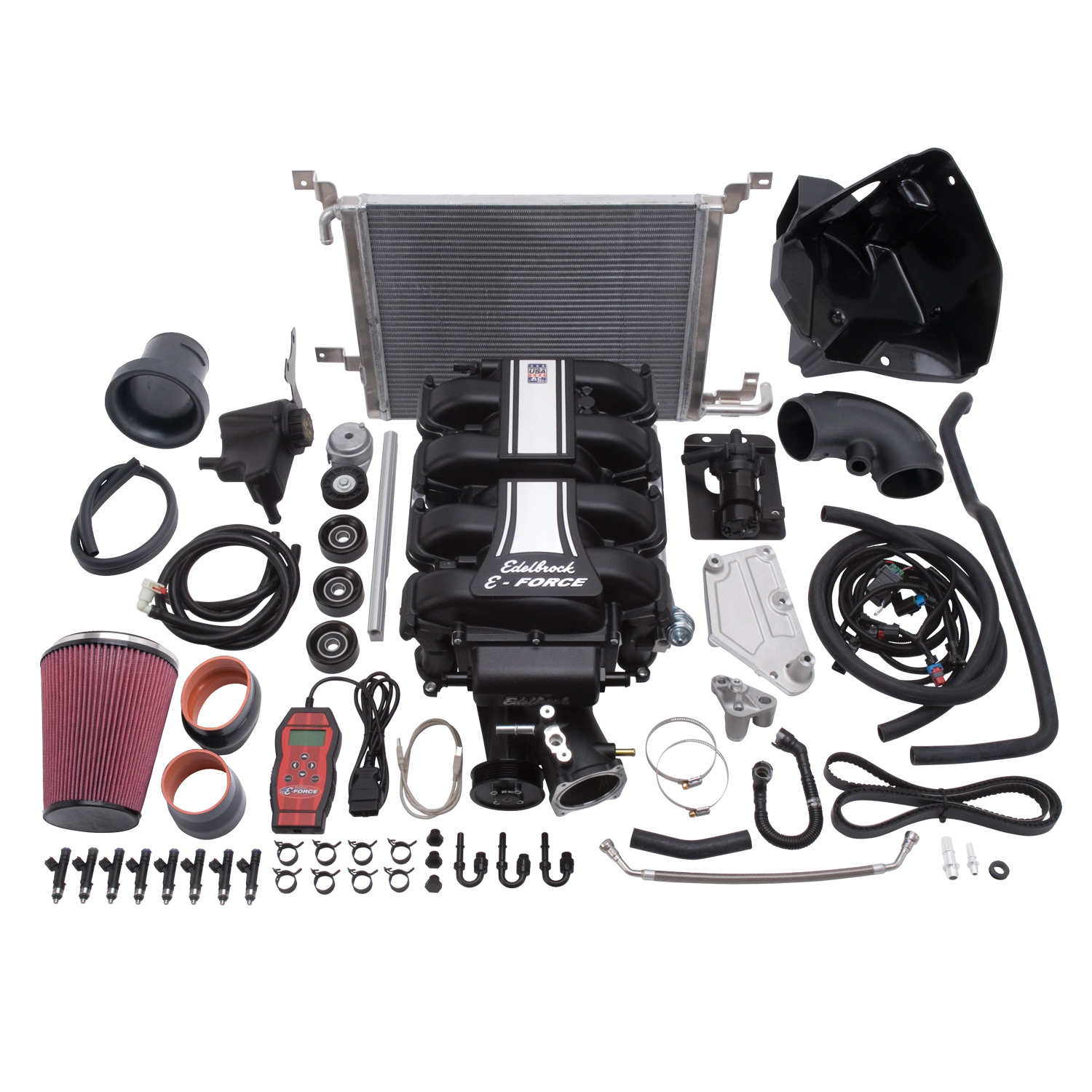

The Edelbrock supercharger stage 2 system part #15896 for 2011-14 Ford Mustang increases the performance of your Coyote 5.0L 4V engine to 636 horsepower and 538 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This upgrade is intended for racing applications only and is not legal for use on pollution-controlled vehicles. A properly completed race-only form will need to be signed and submitted by the customer and accepted by Edelbrock to receive the race-only calibration file. A race-only calibration file will need to be modified by the customer for the specific race engine configuration.
| Part Type | Supercharger Kit |
|---|---|
| Mounting Bracket Included | Yes |
| Gasket Or Seal Included | Yes |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Hose Included | Yes |
| System Type | Stage 2 - Street/Strip System |
| Center Housing Cooling Type | Intercooler |
| Universal Or Specific Fit | Specific |
| Tensioner Included | Yes |
| Mounting Hardware Included | Yes |
| Housing Material | Cast Aluminum |
| Rotor Type | Eaton TVS 2300 |
| Pulley Belt Width | 6-Rib |
| Air Filter Included | Yes |
| Oil Capacity | 150 mL |
| Fuel Injector Type | 50 |
| Calibration | Yes |
| Vehicle Model | Mustang |
| Quantity | Kit |
| Internal Step Up | Yes |
| Maximum Torque | 538 |
| Outside Pulley Diameter | 3.25" |
| Maximum Horsepower | 636 |
| Weight | 178 lb |
| UPC | 00085347158966 |
| Country of Origin | USA |
Verified fitment · 4 applications
- Ford Mustang 5.0L (2011–2014)
| Part No. | 15896 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 178 lb |
| UPC | 00085347158966 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
