Edelbrock Stg 2 Complete SC #158390 For 15-17 Mustang Coyote 5.0L W/O Tune (158390)
000853478910614 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Coyote 5.0
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

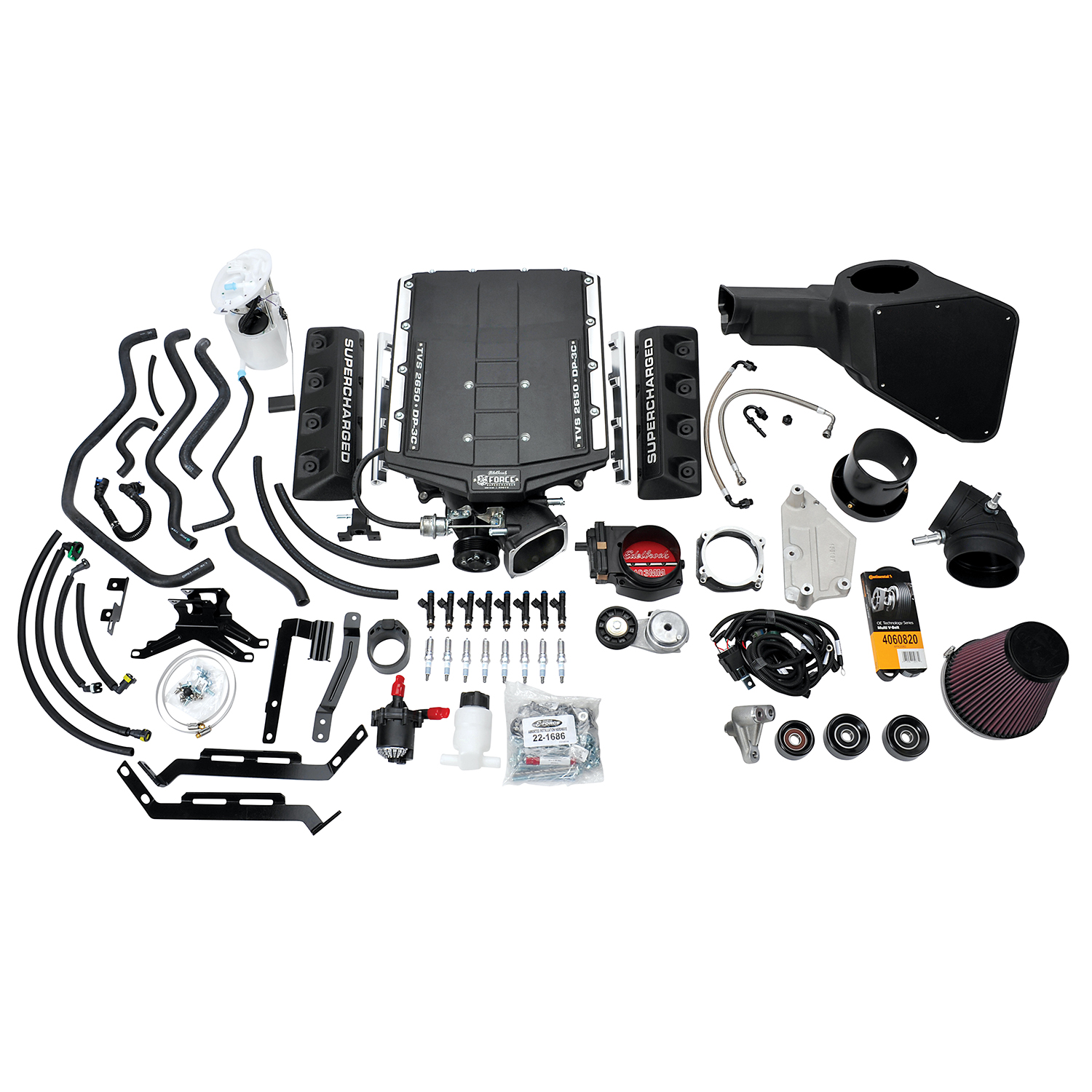

Take your 2015-17 Mustang to the next level with the Edelbrock Stage 2 Supercharger System W/O TUNERR #158390 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty. For the same kit with tuner, order #15839.
| Part Type | Supercharger Kit |
|---|---|
| Air Filter Included | Yes |
| Oil Capacity | 150 mL |
| Fuel Pump Included | Yes |
| Spark Plugs Included | Yes |
| Harmonic Balancer Diameter | 6.67" |
| Calibration | No |
| Mounting Hardware Included | Yes |
| Housing Material | Cast Aluminum |
| Pulley Belt Width | 6-Rib |
| Center Housing Cooling Type | Intercooler |
| Universal Or Specific Fit | Specific |
| Vehicle Model | Mustang |
| Quantity | Kit |
| System Type | Stage 2 - Street/Strip System |
| Rotor Type | Eaton TVS 2650 |
| Internal Step Up | Yes |
| Mounting Bracket Included | Yes |
| Outside Pulley Diameter | 3.25" |
| 9040 | D-215-107 |
| Gasket Or Seal Included | Yes |
| Fuel Injector Type | 78 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Hose Included | Yes |
| Weight | 178 lb |
| UPC | 00085347891061 |
| Country of Origin | USA |
Verified fitment · 52 applications
- Ford Mustang (1964–2020)
| Part No. | 158390 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 178 lb |
| UPC | 00085347891061 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
