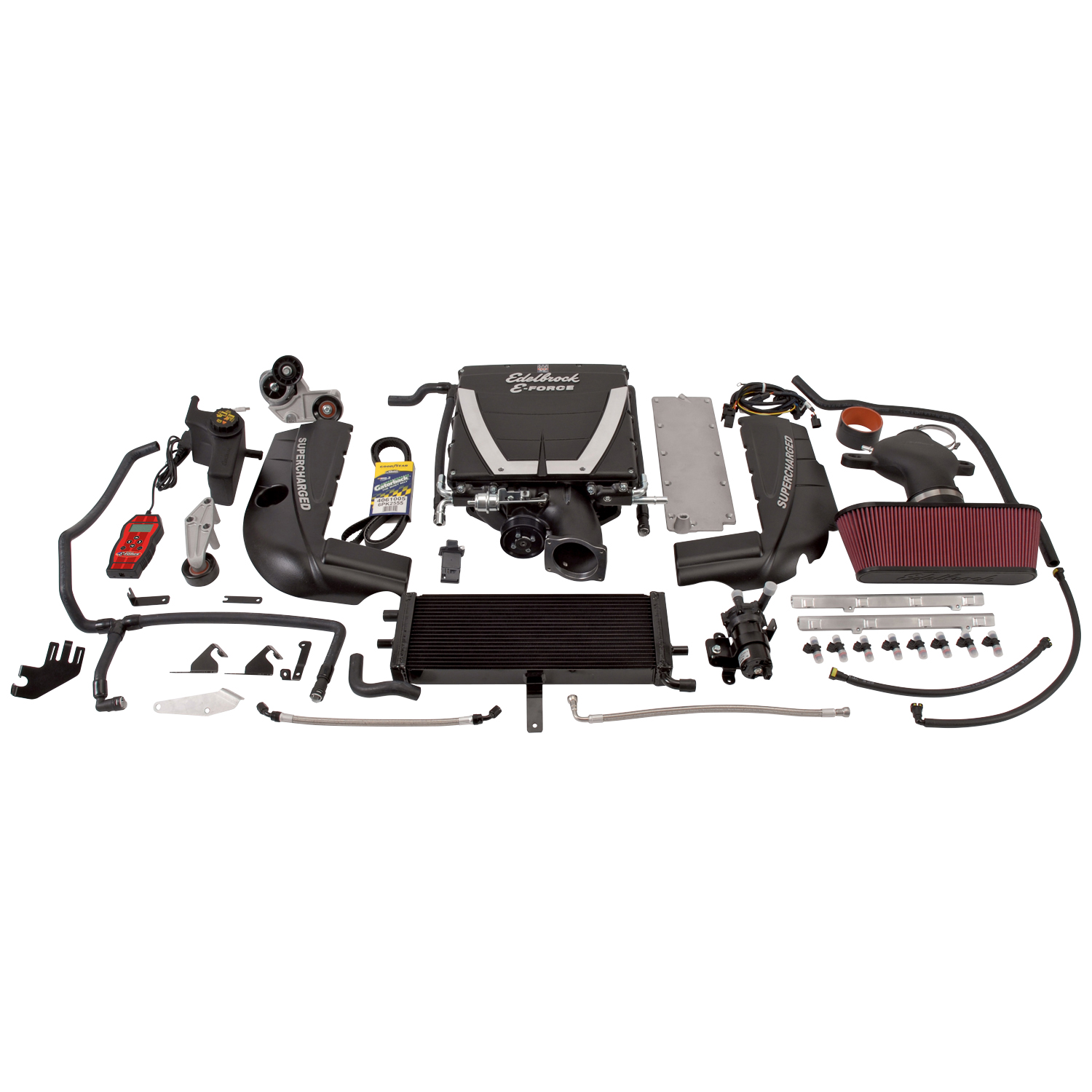

Edelbrock Stage 1 Supercharger Kit #1593 For 2005-07 Corvette LS2 W/ Tune (1593)
000853470159314 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Part Type | Supercharger Kit |
|---|---|
| Air Filter Included | Yes |
| Internal Step Up | Yes |
| Quantity | Kit |
| Maximum Torque | 515 |
| Maximum Horsepower | 554 |
| Gasket Or Seal Included | Yes |
| Mounting Bracket Included | Yes |
| Maximum Pressure Reading | 5.5 |
| Universal Or Specific Fit | Specific |
| Harmonic Balancer Diameter | 7.5" |
| Mounting Hardware Included | Yes |
| Rotor Type | Eaton TVS 2300 |
| Pulley Belt Width | 6-Rib |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model | Corvette |
| Finish | Black Powder Coated |
| Housing Material | Cast Aluminum |
| Hose Included | Yes |
| Oil Capacity | 150 mL |
| Maximum Boost Pressure | 5.5 |
| 9040 | D-215-89 |
| Fuel Injector Type | 52 |
| System Type | Stage 1 - Street System |
| Tensioner Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Outside Pulley Diameter | 3.875" |
| Calibration | Yes |
| Weight | 164 lb |
| UPC | 00085347015931 |
| Country of Origin | USA |
Verified fitment · 3 applications
- Chevrolet Corvette (2005–2007)
| Part No. | 1593 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 164 lb |
| UPC | 00085347015931 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
