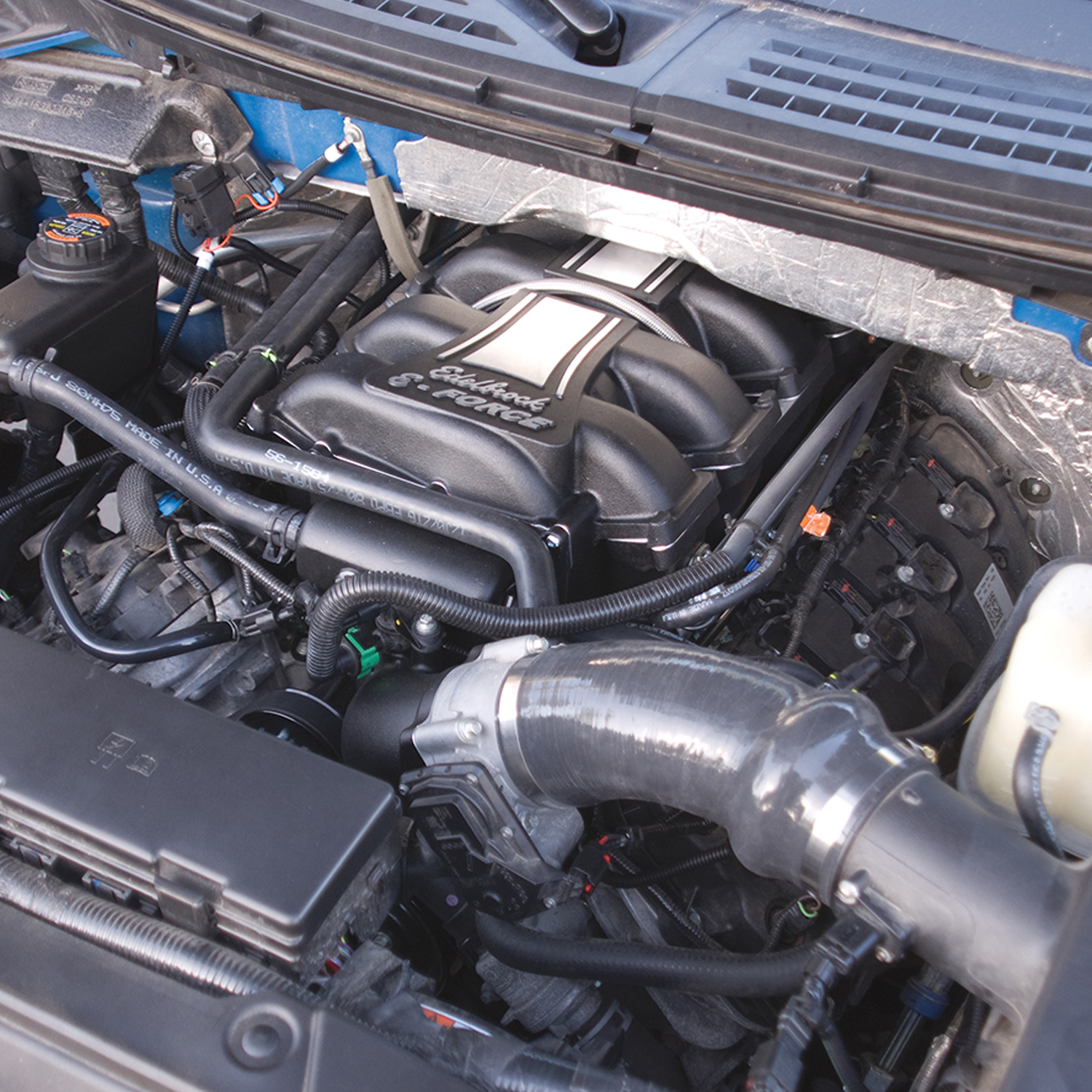

The Edelbrock supercharger Stage 1 System part #1584 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1584 system is emissions legal and provides the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Part Type | Supercharger Kit |
|---|---|
| Universal Or Specific Fit | Specific |
| Outside Pulley Diameter | 3.5" |
| Air Filter Included | Yes |
| Harmonic Balancer Diameter | 6.67" |
| Maximum Boost Pressure | 7 |
| Housing Material | Cast Aluminum |
| Fuel Injector Type | 50 |
| Internal Step Up | Yes |
| Vehicle Model | F-150 |
| Quantity | Kit |
| System Type | Stage 1 - Street System |
| Mounting Bracket Included | Yes |
| Maximum Horsepower | 421RW |
| Maximum Torque | 422RW |
| Rotor Type | Eaton TVS 2300 |
| Calibration | Yes |
| Mounting Hardware Included | Yes |
| Maximum Pressure Reading | 7 |
| Oil Capacity | 150 mL |
| 9040 | D-215-89 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Pulley Belt Width | 6-Rib |
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Weight | 178 lb |
| UPC | 00085347015849 |
| Country of Origin | USA |
Verified fitment · 4 applications
- Ford F-150 5.0L (2011–2014)
| Part No. | 1584 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 178 lb |
| UPC | 00085347015849 |
| Country of Origin | USA |
