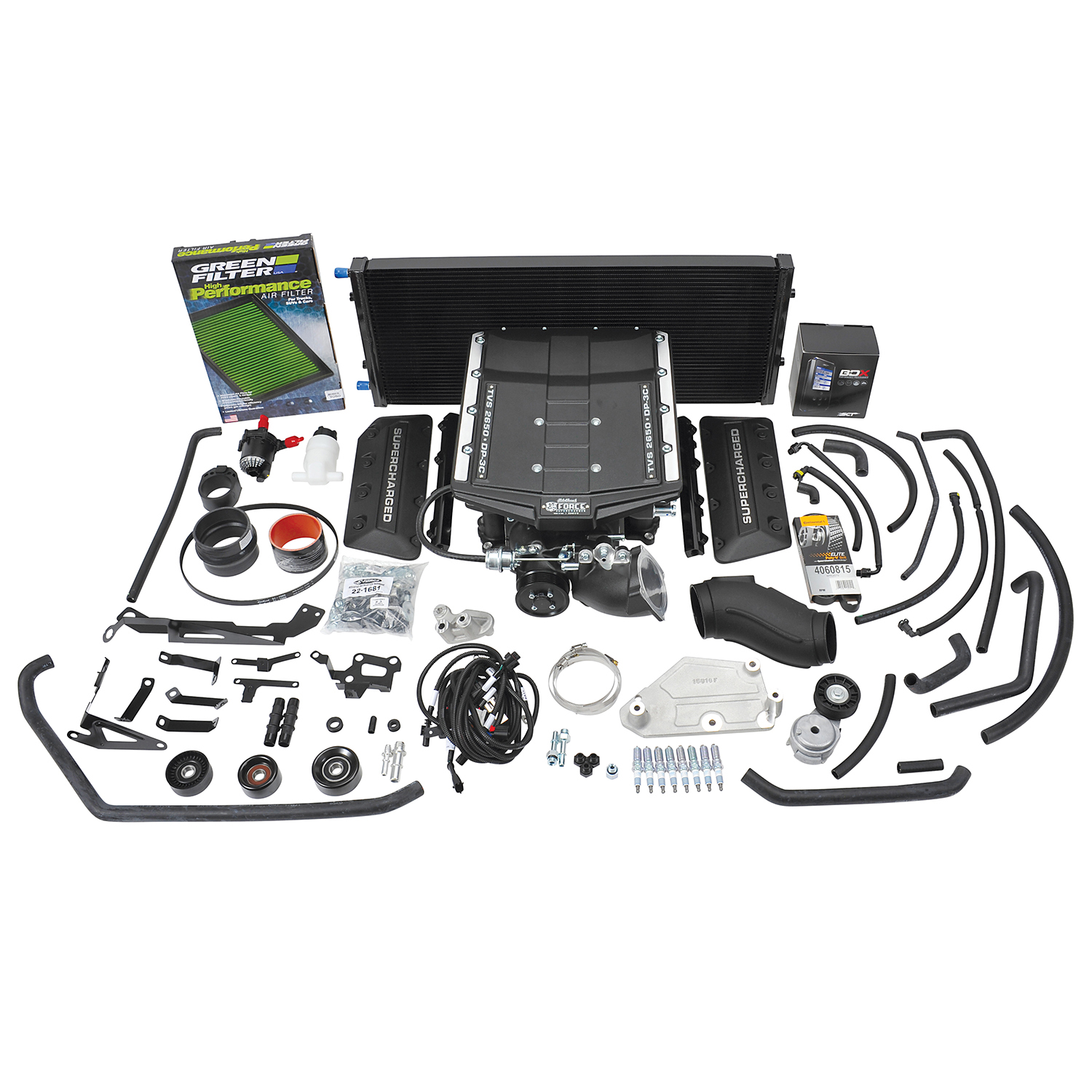

Edelbrock Stage 1 Supercharger Kit #15812 For 2019-21 Ford F-150 5.0L 4V W/ Tune (15812)
000853471581264 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Coyote 5.0
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
The Edelbrock Supercharger System part #15812 is designed for use on a 2019-2021 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #15812 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit includes a tune for 91 or 93 octane fuels and makes approximately 601whp 468wtq using 93 octane backed by our FREE, industry-leading 3-year/36,000 mile powered train warranty where applicable.
| Part Type | Supercharger Kit |
|---|---|
| Rotor Type | Eaton TVS 2650 |
| Pulley Belt Width | 6-Rib |
| System Type | Stage 1 - Street System |
| Tensioner Included | Yes |
| Calibration | Yes |
| 9040 | D-215-122 |
| Housing Material | Cast Aluminum |
| Hose Included | Yes |
| Outside Pulley Diameter | 3.5" |
| Gasket Or Seal Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Maximum Boost Pressure | 13 |
| Maximum Horsepower | 601RW |
| Quantity | Kit |
| Maximum Pressure Reading | 13 |
| Mounting Bracket Included | Yes |
| Universal Or Specific Fit | Specific |
| Harmonic Balancer Diameter | Stock |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Maximum Torque | 468RW |
| Oil Capacity | 150 mL |
| Internal Step Up | Yes |
| Vehicle Model | F-150 |
| Mounting Hardware Included | Yes |
| Weight | 178 lb |
| UPC | 00085347158126 |
| Country of Origin | USA |
Verified fitment · 2 applications
- Ford F-150 (2019–2020)
| Part No. | 15812 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 178 lb |
| UPC | 00085347158126 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
