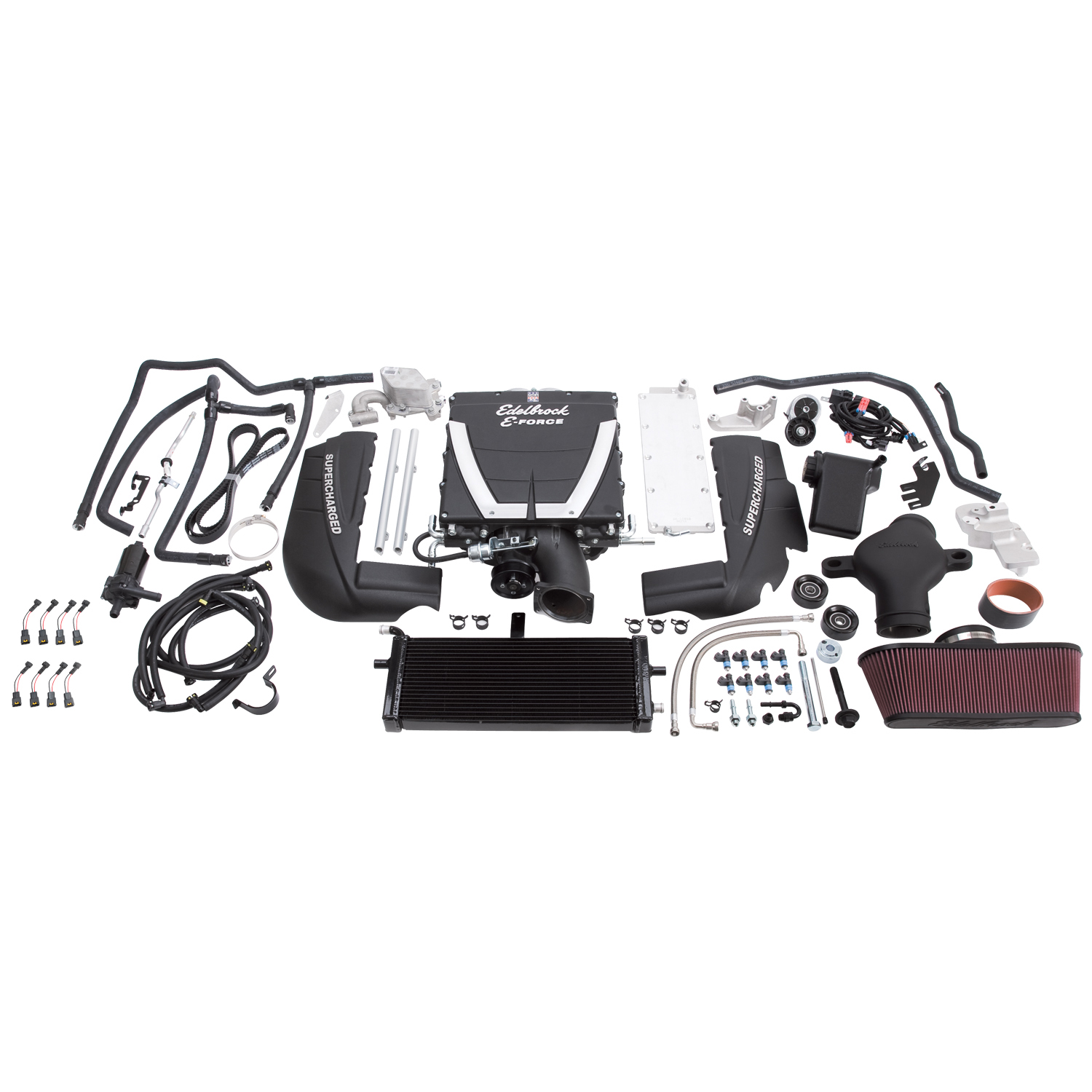

Edelbrock Stage 1 Supercharger Kit #15720 For 2006-13 Corvette Z06 LS7 W/O Tune (15720)
000853471572044 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 14.0 hrs — $1,750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($350) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
The Edelbrock supercharger Stage 1 Street System part #15720 for 2006-13 Corvette ZO6 with Dry sump increases the performance of your LS7 engine to 657 horsepower and 582 ft-lbs of torque to the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
| Part Type | Supercharger Kit |
|---|---|
| Air Filter Included | Yes |
| Housing Material | Cast Aluminum |
| Calibration | No |
| Internal Step Up | Yes |
| Quantity | Kit |
| Oil Capacity | 150 mL |
| Vehicle Model | Corvette |
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Universal Or Specific Fit | Specific |
| Mounting Bracket Included | Yes |
| Rotor Type | Eaton TVS 2300 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Harmonic Balancer Diameter | Stock |
| Pulley Belt Width | 6-Rib |
| Mounting Hardware Included | Yes |
| Fuel Injector Type | 60 |
| Outside Pulley Diameter | 3.25" |
| System Type | Stage 1 - Street System |
| Tensioner Included | Yes |
| 9040 | D-215-89 |
| Weight | 173 lb |
| UPC | 00085347157204 |
| Country of Origin | USA |
Verified fitment · 8 applications
- Chevrolet Corvette Z06 (2006–2013)
| Part No. | 15720 |
|---|---|
| Brand | Edelbrock |
| Part Type | Supercharger Kit |
| Weight | 173 lb |
| UPC | 00085347157204 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
