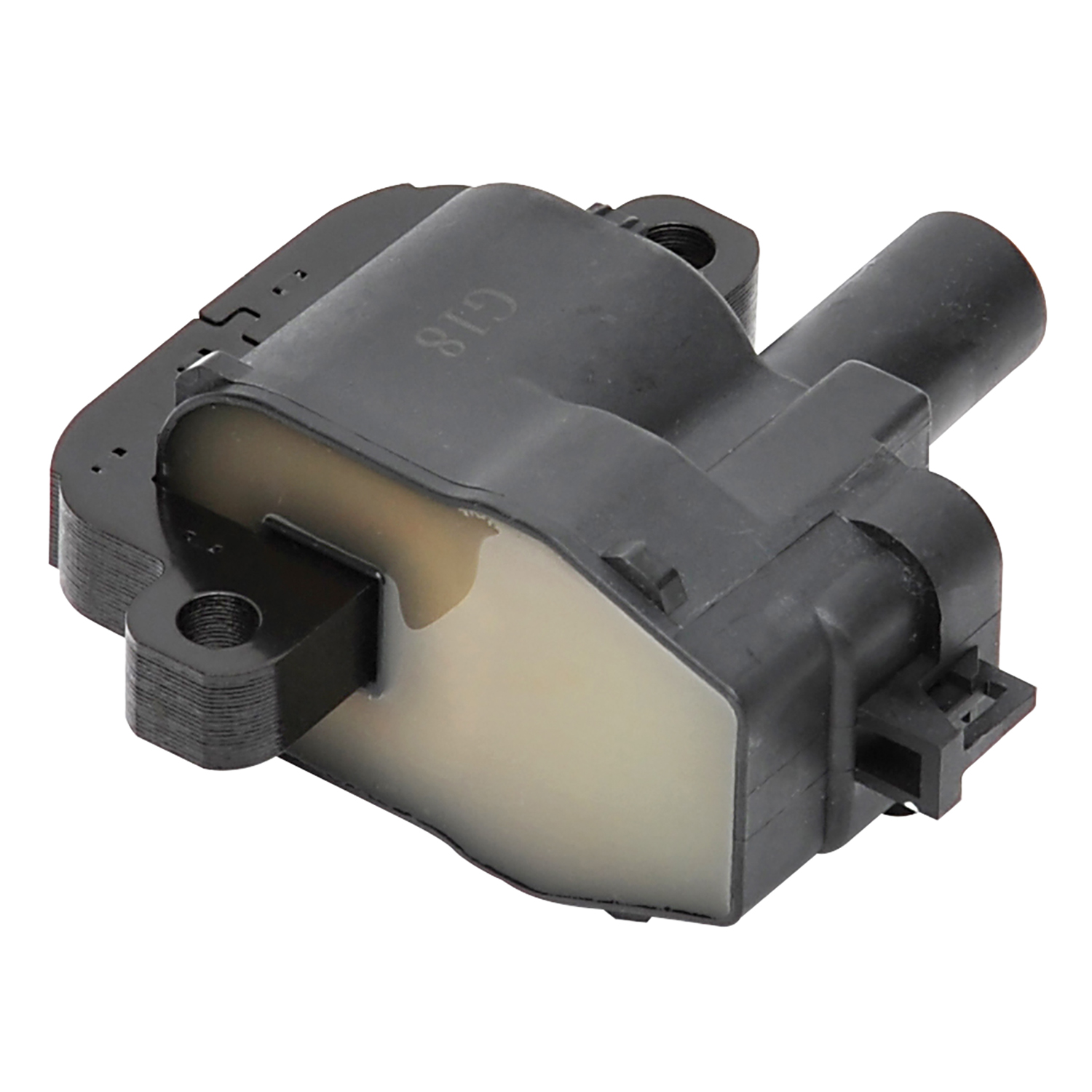

Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil. It's ideal for use with supercharged, turbo, nitrous or E85 fueled engines. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise
| Part Type | Ignition Coil |
|---|---|
| Terminal Type | Blade Pin |
| Connector Gender | Female |
| Coil Shape | Rectangular |
| Length | 3.75" |
| Wire Quantity | 2 |
| Requires External Resistor | No |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Height | 3.75" |
| Voltage | 12 |
| Mounting Position | Cylinder Head |
| Oil Filled | No |
| Terminal Gender | Female |
| Mount Type | Plug |
| Ignition Type | Distributorless |
| Terminal Quantity | 1 |
| Mounting Bracket Included | No |
| Overall Height | 3.75" |
| Width | 1.5" |
| Coil Type | Ignition Coils |
| Coil Wire Included | No |
| Weight | 1.7 lb |
| UPC | 00085347227457 |
| Country of Origin | USA |
Verified fitment · 58 applications
- Buick Allure 5.3L (2008–2009)
- Buick LaCrosse 5.3L (2008–2009)
- Cadillac CTS 5.7L (2004–2005)
- Cadillac CTS 6.0L (2006–2007)
- Cadillac CTS 6.2L (2009–2013)
- Chevrolet Camaro 6.2L (2010–2013)
- Chevrolet Corvette 5.7L (2001–2004)
- Chevrolet Corvette 6.0L (2006–2007)
- Chevrolet Corvette 6.2L (2008–2013)
- Chevrolet Corvette 7.0L (2006–2013)
- Chevrolet Impala 5.3L (2006–2009)
- Chevrolet Monte Carlo 5.3L (2006–2007)
- Chevrolet SSR 6.0L (2005–2006)
- Chevrolet Trailblazer 6.0L (2006–2009)
- Pontiac G8 6.2L (2009)
- Pontiac GTO 6.0L (2005–2006)
- Pontiac Grand Prix 5.3L (2005–2008)
| Part No. | 22745 |
|---|---|
| Brand | Edelbrock |
| Part Type | Ignition Coil |
| Weight | 1.7 lb |
| UPC | 00085347227457 |
| Country of Origin | USA |
