Edelbrock Cylinder Head #79119 for GM 2011-2016 LML 6.6L Duramax Diesel Engines (79119)
000853477911944 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 13.0 hrs — $1,625 at $125/hr. Pick Install at HRC and a 20% labor deposit ($325) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout

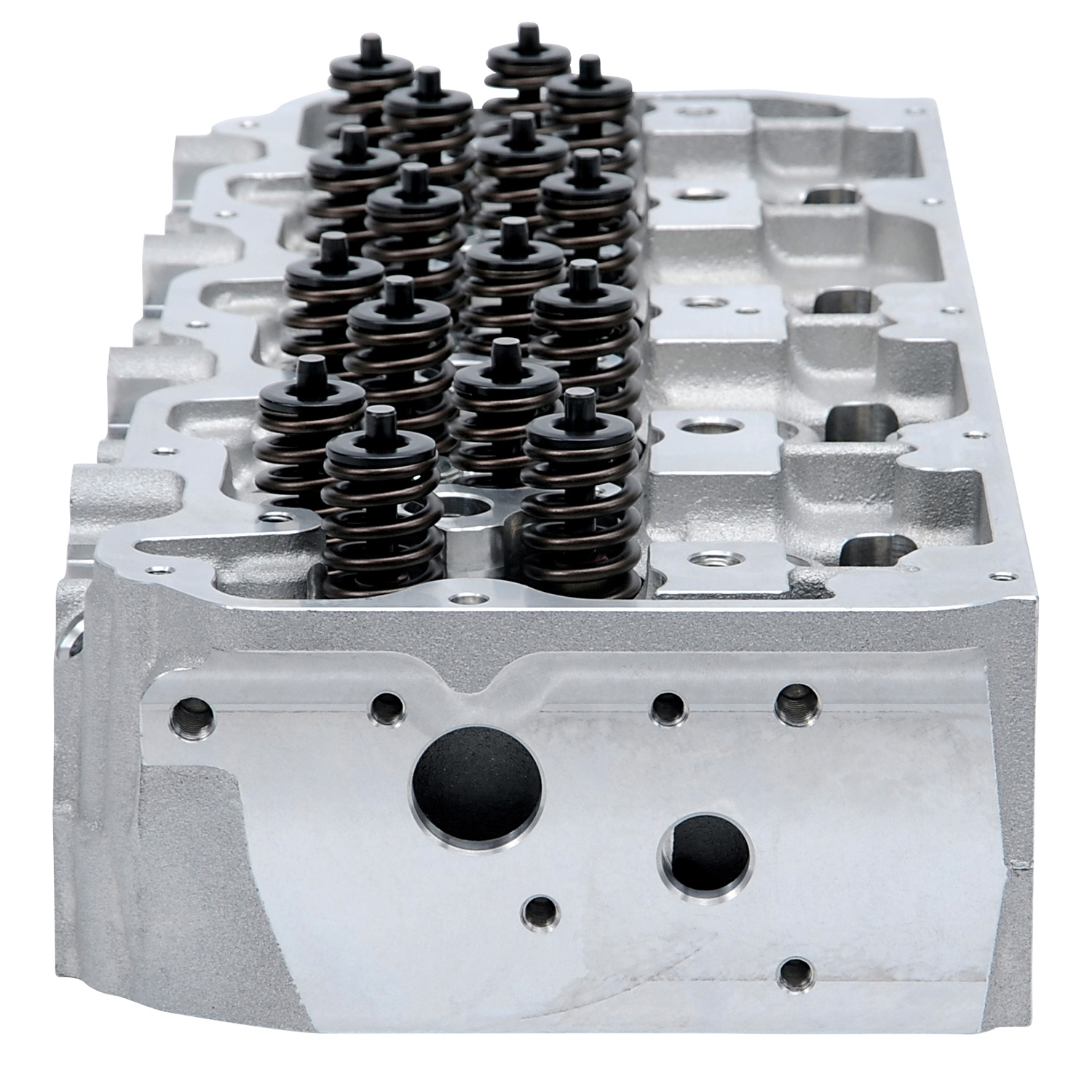

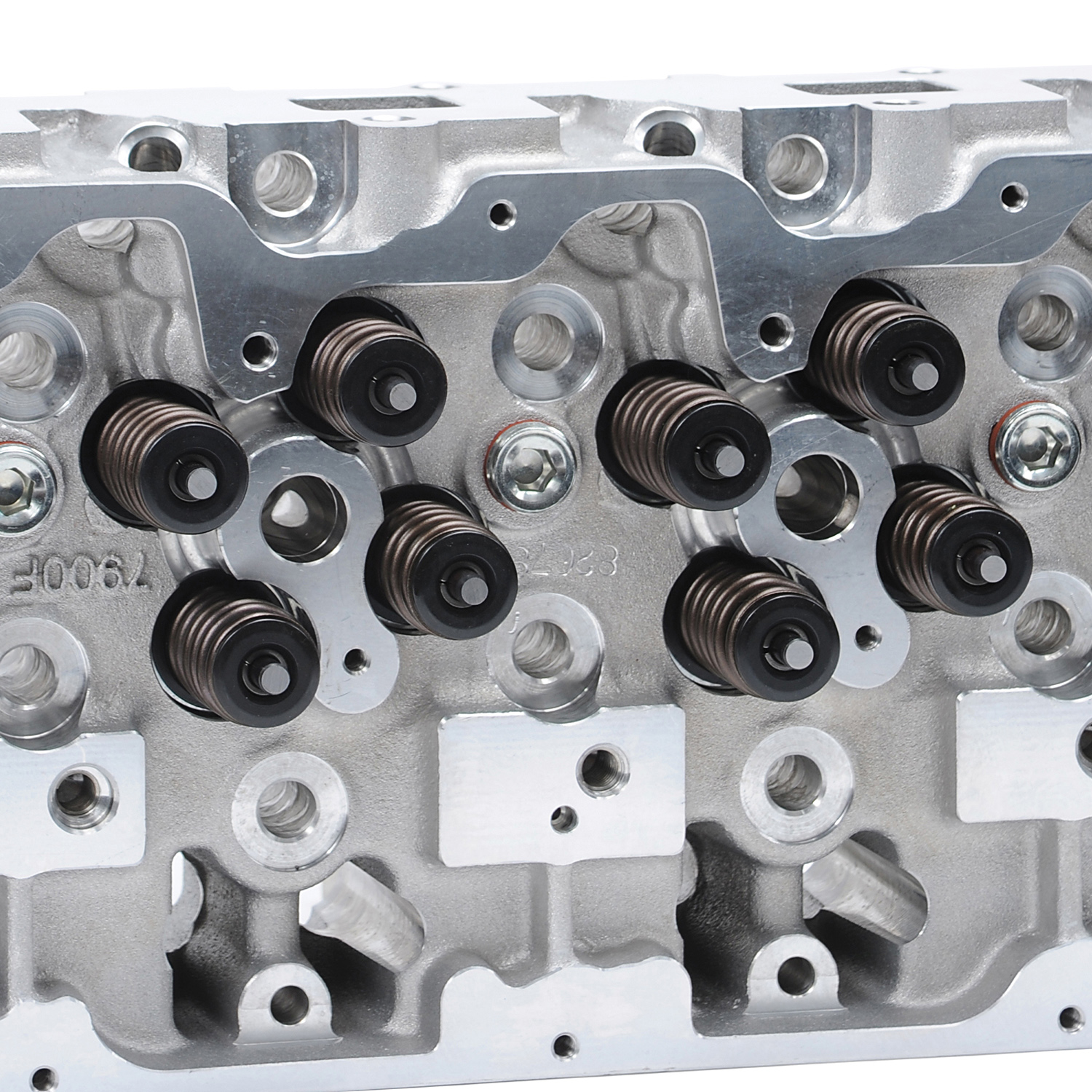

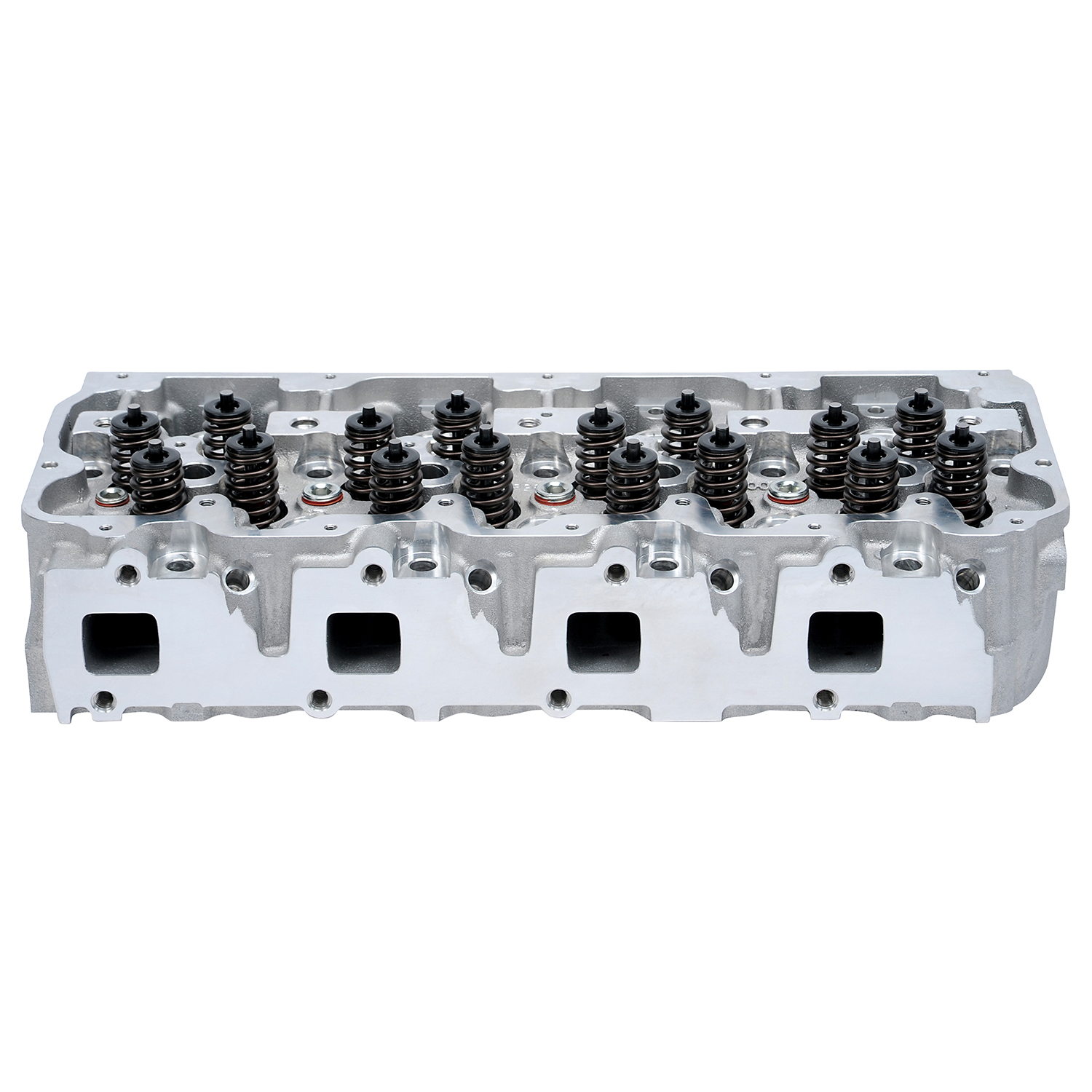

New Edelbrock Cylinder Head for GM 6.6L Duramax Diesel Engines. Edelbrock proudly introduces its first-ever high-performance cylinder head developed especially for the diesel engine market! The all-new Edelbrock Diesel Cylinder Head #79119 for 2011-2016 (LML) GM 6.6L Duramax V8 engines is a direct bolt-on replacement for any street or off-road application where higher levels of performance and durability are desired. This aluminum head comes complete and ready to run straight out of the box and are designed to fit all variations of the Duramax engine that was offered in the popular Silverado and Sierra pickup truck as well as Chevrolet and GMC 2500/3500 HD trucks between 2001 and 2016. Edelbrock's new Diesel Cylinder Head is compatible with all stock Duramax valvetrain components as well as valve covers, water crossover, injectors and plugs. Each A356 aluminum cylinder head casting is heat- and pressure-treated to reduce porosity while also increasing both strength and fatigue properties. Intake and exhaust runners are designed to optimize flow and swirl, but engine builders and head porters will also appreciate the extra deck and port wall material for custom porting and deck strength. Best of all, the new Edelbrock Diesel Head is CARB legal, making them the perfect choice for a street performance upgrade to your Chevy or GMC Duramax Diesel engine. Order Edelbrock part number 79119 for 2011-2016 LML Duramax V8 engines.
| Part Type | Engine Cylinder Head |
|---|---|
| Exhaust Port Location | Standard |
| Head Casting Number | N/A |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower | 400+ |
| Seat Material | Ductile Iron |
| Construction Type | Complete |
| Guide Plates Included | No |
| Valve Springs Included | Yes |
| Guide Material | Manganese Bronze |
| Seat Angle | Exhaust 45 deg/Intake 45° |
| 9040 | D-215-102 |
| Material | Aluminum |
| Exhaust Valve Diameter | 31 mm |
| Retainer Included | Yes |
| Valve Included | Yes |
| Deck Thickness | 0.629921" |
| Series | Duramax |
| Quantity | Sold Individually |
| Valve Spring Diameter | 27 mm |
| Exhaust Runner Volume | 117 cc |
| Specialty | Hot Isostatic Pressing (HIP) Processing and Heat-Treated To T7 Specification |
| Grade Type | Performance |
| Intake Runner Volume | 230 cc |
| Intake Valve Diameter | 33 mm |
| Valve Spring Maximum Lift | 0.600" |
| Valve Angle | 0° |
| Family | Duramax |
| Valve Stem Diameter | 0.275591" |
| Camshaft Type | Hydraulic Roller |
| CNC Ported | No |
| Weight | 39.1 lb |
| UPC | 00085347791194 |
| Country of Origin | USA |
Verified fitment · 25 applications
- Chevrolet Express 2500 6.6L (2011–2015)
- Chevrolet Express 3500 6.6L (2011–2015)
- Chevrolet Express 4500 6.6L (2011–2015)
- Chevrolet Silverado 2500 HD 6.6L (2011–2015)
- Chevrolet Silverado 3500 HD 6.6L (2011–2015)
| Part No. | 79119 |
|---|---|
| Brand | Edelbrock |
| Part Type | Engine Cylinder Head |
| Weight | 39.1 lb |
| UPC | 00085347791194 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
