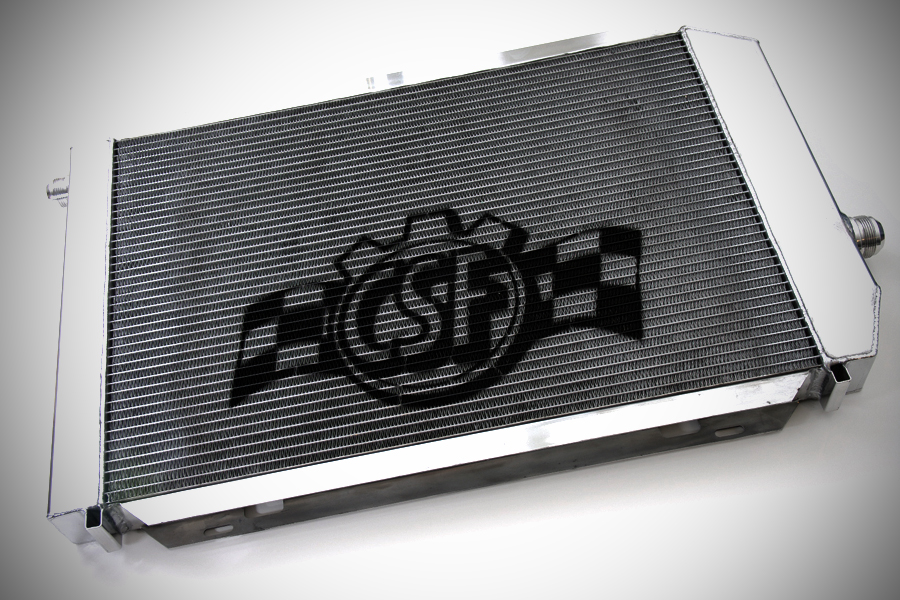

CSF Universal Triple Pass Dual Core Radiator w/AN Fittings

CSF

CSF Universal Triple Pass Dual Core Radiator w/AN Fittings

Part No.: CSF-8023
Fitment: In stock — ships from our distributor.

$525.00

4 interest-free payments or as low as $—/mo with Affirm. See if you qualify

In Stock

in stock

Compatibility

Vehicle-specific fitment: Review application details below
Need help?: Confirm fitment with us before ordering — (714) 202-7886

We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.

Install quoted on request. We fit parts in-house in Huntington Beach, but we do not publish a labor figure for this item — we would rather quote your car than guess. Call (714) 202-7886 or pick Install at HRC and add your vehicle details, and we will come back with the labor.

Quantity:

Warranty & track disclaimer — read before you race it.
Shipping & returns — rates and RMA terms.
Installed in-house in Huntington Beach, CA — labor & service policy.
Affirm and PayPal available at checkout.

More ways to pay at checkout

wind tunnel, vibration, thermal cycle, and burst pressure testing. Universal Fit Allows for Mounting in Multiple Different Configurations. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval-shaped "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured.

CSF manufactures the most advanced and efficient radiator in the industry for your Vehicle. CSF uses innovative tube.

The CSF #8023 is a universal cooling product and will require some custom work and/or fabrication to install..

Part No.	CSF-8023
Brand	CSF
