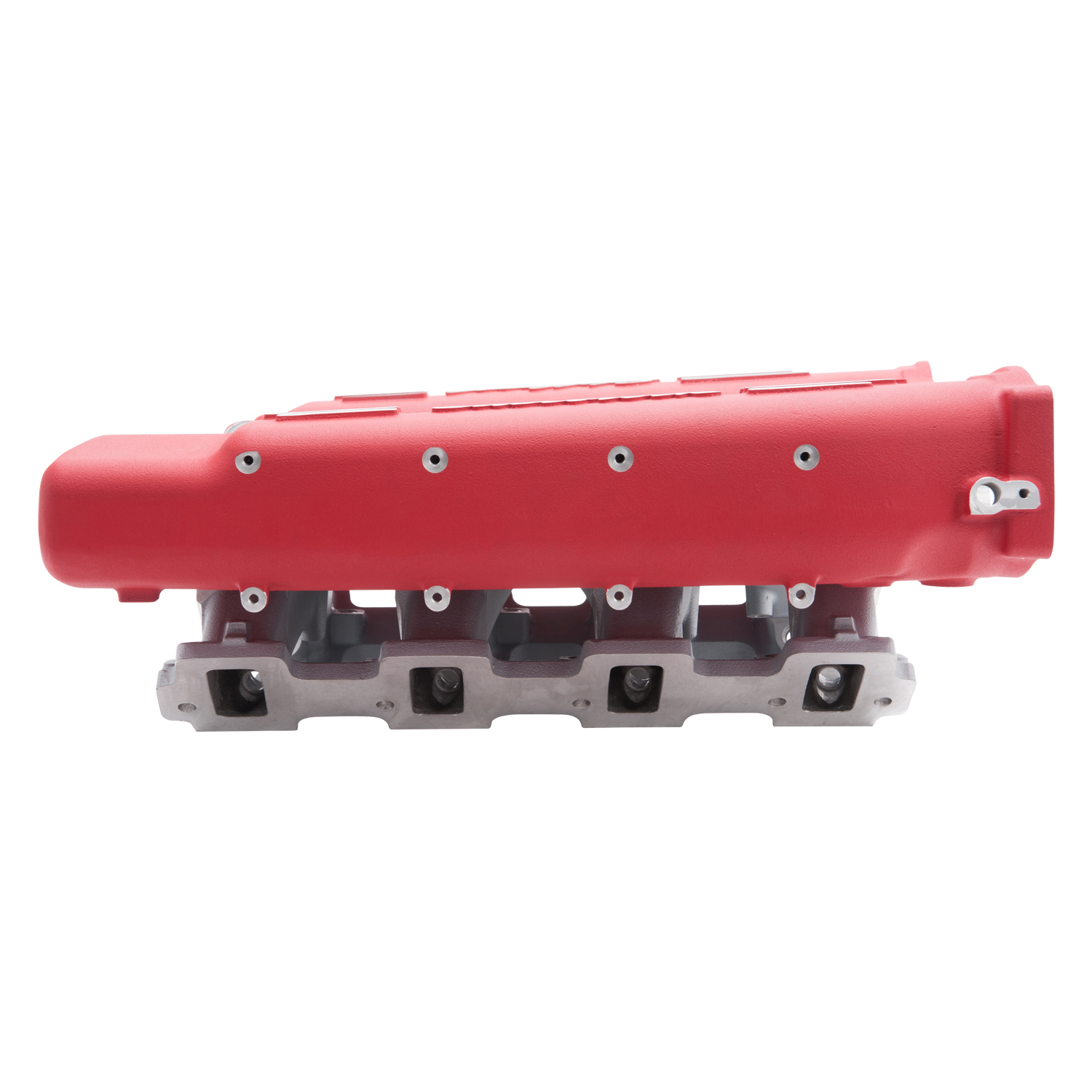

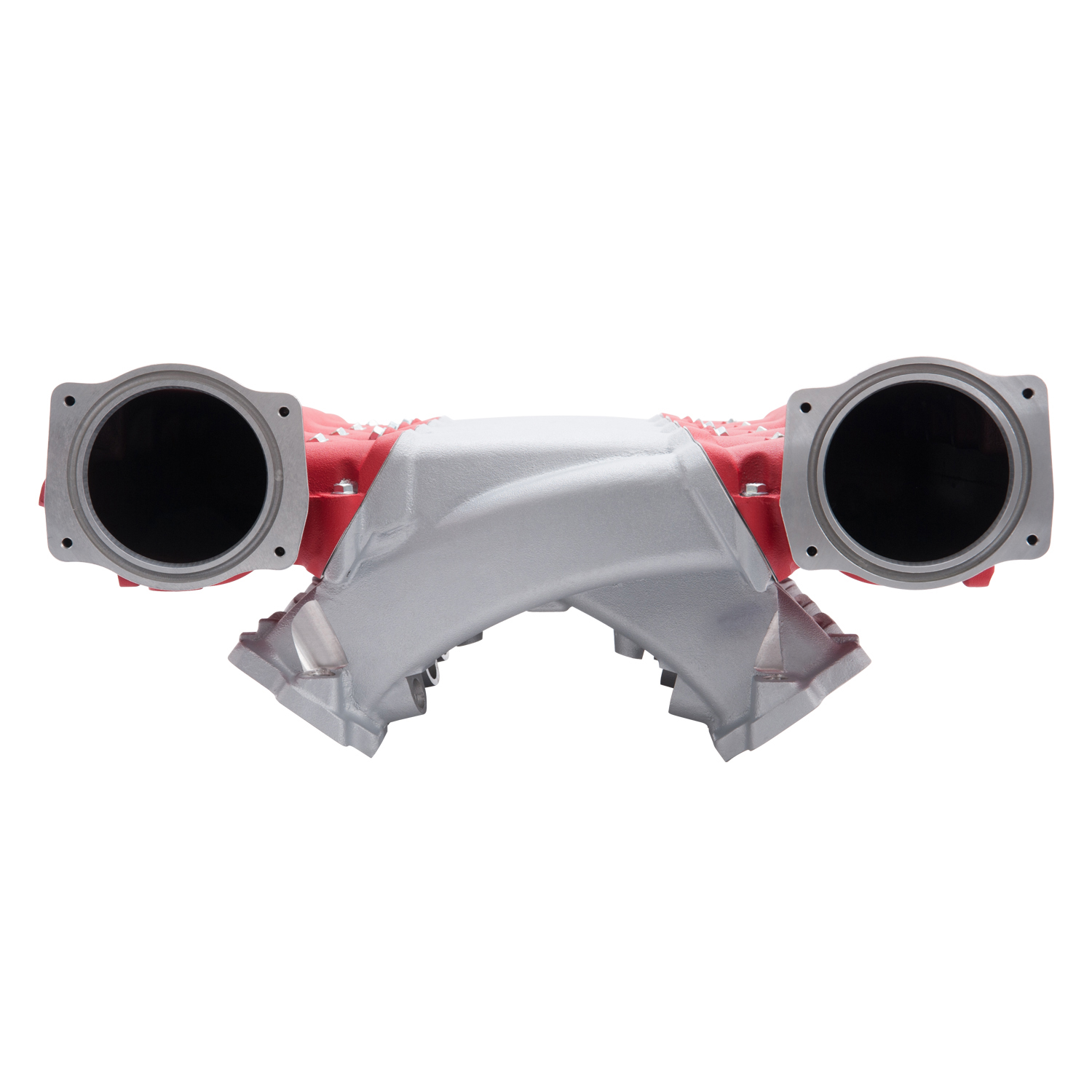

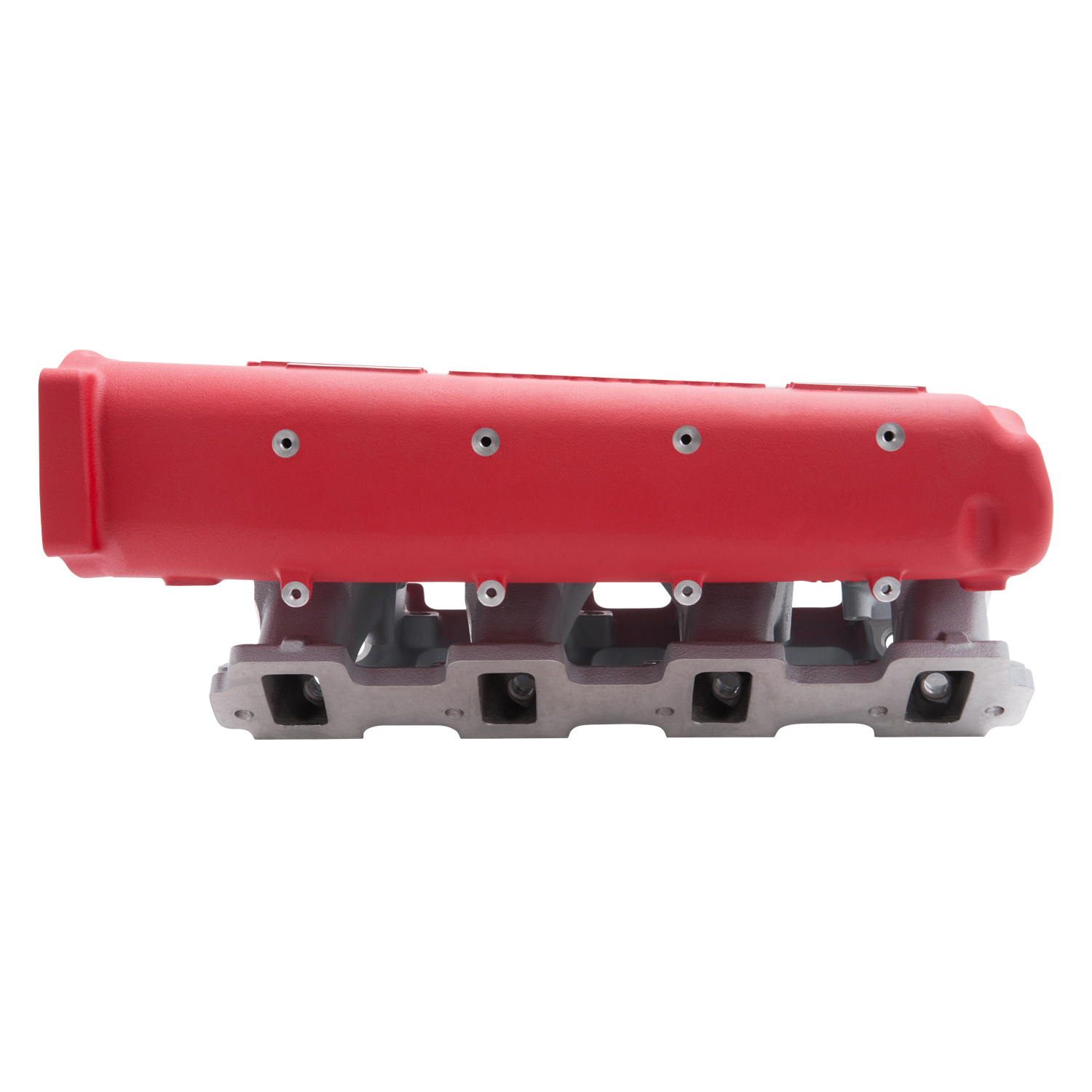

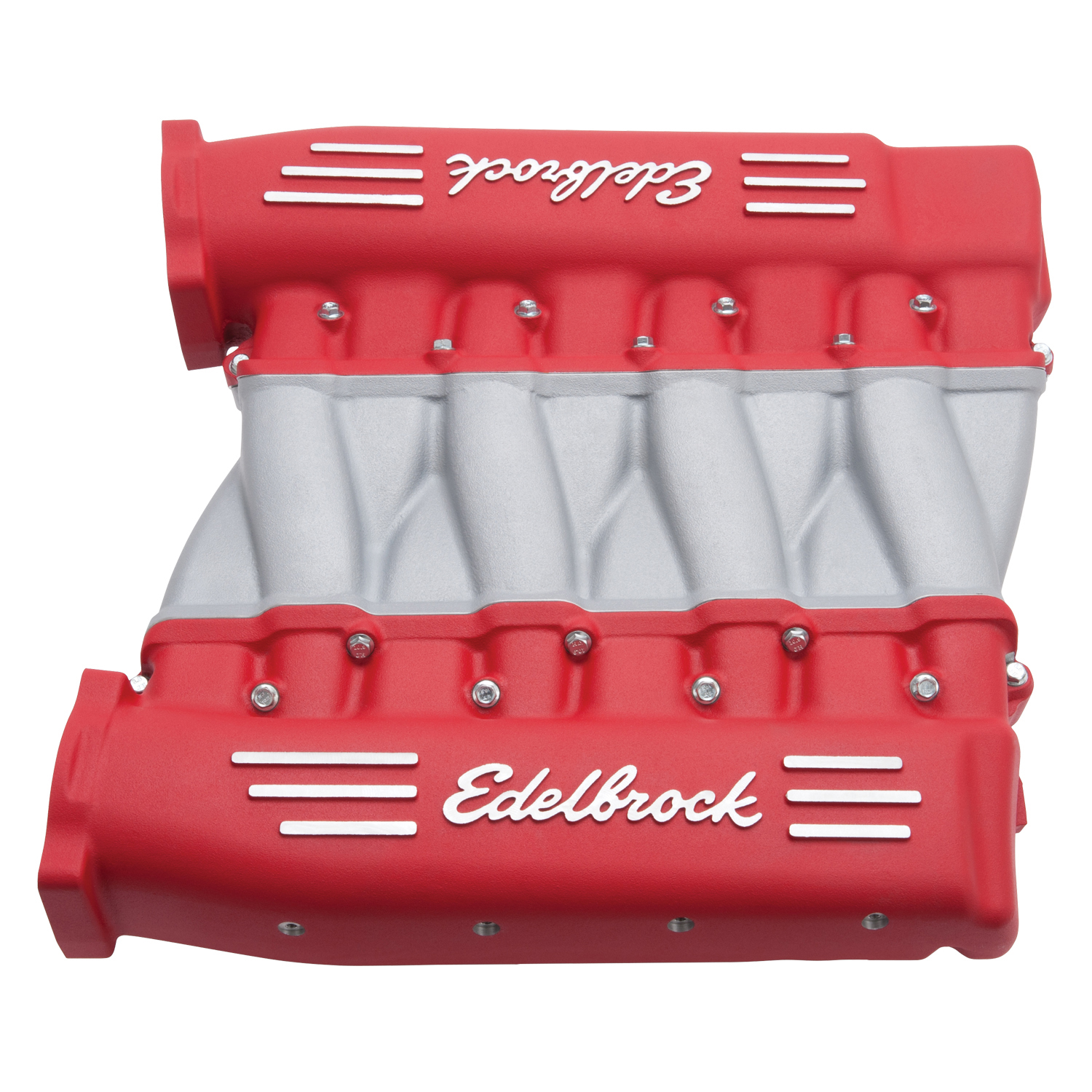

Cross-Ram Small Block Chevy LS3 Intake Manifold (7141)
000853470714184 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 6.0 hrs — $750 at $125/hr. Pick Install at HRC and a 20% labor deposit ($150) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
Edelbrock part #71413 LS3 Cross-Ram intake manifold is designed for Gen IV engines with LS3, L92 and L76 rectangular port cylinder heads. The Cross-Ram LS3 is ideal for anybody looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. Dyno testing resulted with gains of 27 horsepower and 28 ft-lbs. of torque over a popular aftermarket manifold.
| Part Type | Engine Intake Manifold |
|---|---|
| Basic Operating RPM Range | 1500-7000 RPM |
| Front Maximum Height | 9.350" |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model | Chevrolet |
| Finish | Red Powder Coated |
| Gasket Or Seal Included | No |
| Center Maximum Height | 9.350" |
| Material | Aluminum |
| Series | Cross-Ram LS3 |
| Grade Type | Performance |
| Flange Type | Cross-Ram |
| Rear Maximum Height | 8.010" |
| CNC Ported | No |
| Single Or Dual Plane Type | Single |
| Weight | 42 lb |
| UPC | 00085347071418 |
| Country of Origin | USA |
Verified fitment · 65 applications
- Cadillac Escalade 6.2L (2007–2008)
- Cadillac Escalade ESV 6.2L (2007–2008)
- Cadillac Escalade EXT 6.2L (2007–2008)
- Chevrolet Avalanche LT 6.0L (2007–2009)
- Chevrolet Avalanche LTZ 6.0L (2007–2009)
- Chevrolet Camaro SS 6.2L (2010–2015)
- Chevrolet Corvette Base 6.2L (2008–2013)
- Chevrolet Corvette Grand Sport 6.2L (2010–2013)
- Chevrolet SS 6.2L (2014–2017)
- Chevrolet Silverado 1500 LT 6.0L (2007–2009)
- Chevrolet Silverado 1500 LTZ 6.0L (2007–2009)
- Chevrolet Suburban 1500 LT 6.0L (2007–2009)
- Chevrolet Suburban 1500 LTZ 6.0L (2007–2009)
- Chevrolet Tahoe LTZ 6.2L (2008)
- GMC Sierra 1500 Denali 6.2L (2007–2008)
- GMC Sierra 1500 SLE 6.0L (2007–2009)
- GMC Sierra 1500 SLT 6.0L (2007–2009)
- GMC Yukon Denali 6.2L (2007–2008)
- GMC Yukon XL 1500 6.0L (2007–2008)
- GMC Yukon XL 1500 6.2L (2007–2008)
- GMC Yukon XL 1500 SLE 6.0L (2009)
- GMC Yukon XL 1500 SLT 6.0L (2009)
- Hummer H2 6.2L (2008)
- Pontiac G8 GT 6.0L (2008–2009)
- Pontiac G8 GXP 6.2L (2009)
| Part No. | 7141 |
|---|---|
| Brand | Edelbrock |
| Part Type | Engine Intake Manifold |
| Weight | 42 lb |
| UPC | 00085347071418 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
