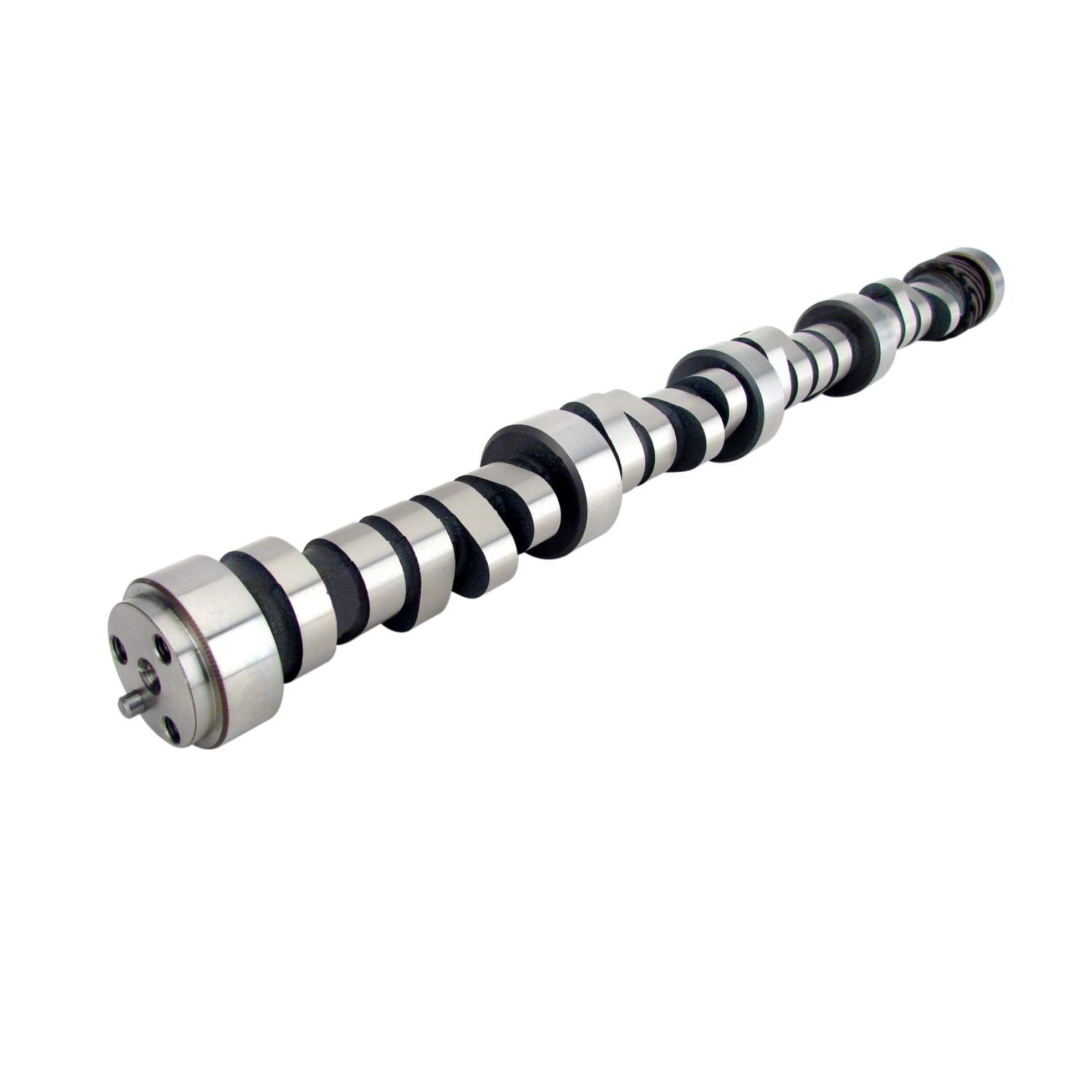

Camshaft, Cbvi XR294HR-14 (01-426-8)
036584079941
$577.95
4 interest-free payments or as low as $—/mo with Affirm. See if you qualify
In Stock
Compatibility
- Platform
- Universal
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 11.0 hrs — $1,375 at $125/hr. Pick Install at HRC and a 20% labor deposit ($275) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
Xtreme Energy 242/248 114 LSA Hydraulic Roller Cam
| Part Type | Engine Camshaft |
|---|---|
| Camshaft Series | Xtreme Energy |
| Usage | Street/Performance |
| Cam Type | Hydraulic Roller |
| Grind Number | XR294HR-14 |
| Basic Operating RPM Range | 2,800-6,400 RPM |
| Intake Duration at .050 Inch Lift | 242° |
| Exhaust Duration at .050 inch Lift | 248° |
| Lobe Separation | 114° |
| Intake Valve Lift | 0.54" |
| Exhaust Valve Lift | 0.56" |
| Lifters Included | No |
| Advertised Exhaust Duration | 300° |
| Advertised Intake Duration | 294° |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Cam and Lifter Kit Upgrade | CL01-426-8 |
| K-Kit Upgrade | K01-426-8 |
| Lifter Type | Hydraulic Roller |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Engine Family | Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999) |
| Camshaft Material | Austempered Ductile Iron |
| Camshaft Gear Attachment | 3-Bolt |
| SK-Kit Upgrade | SK01-426-8 |
| Title | Xtreme Energy 242/248 Hydraulic Roller Cam for Chevrolet Big Block GEN VI |
| Amazon ASIN | N/A |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | XR294HR-14 |
| Weight | 10.45 lb |
| UPC | 036584079941 |
| Country of Origin | USA |
Verified fitment · 7 applications
- Chevrolet C2500 Base 7.4L (1999)
- Chevrolet C2500 LS 7.4L (1999)
- Chevrolet C2500 Suburban Base 7.4L (1999)
- GMC C3500 Sierra SLE 7.4L (1996)
- GMC C3500 Sierra SLT 7.4L (1996)
- GMC Savana 3500 SLE 7.4L (1998–2000)
| Part No. | 01-426-8 |
|---|---|
| Brand | COMP Cams |
| Part Type | Engine Camshaft |
| Weight | 10.45 lb |
| UPC | 036584079941 |
| Country of Origin | USA |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
