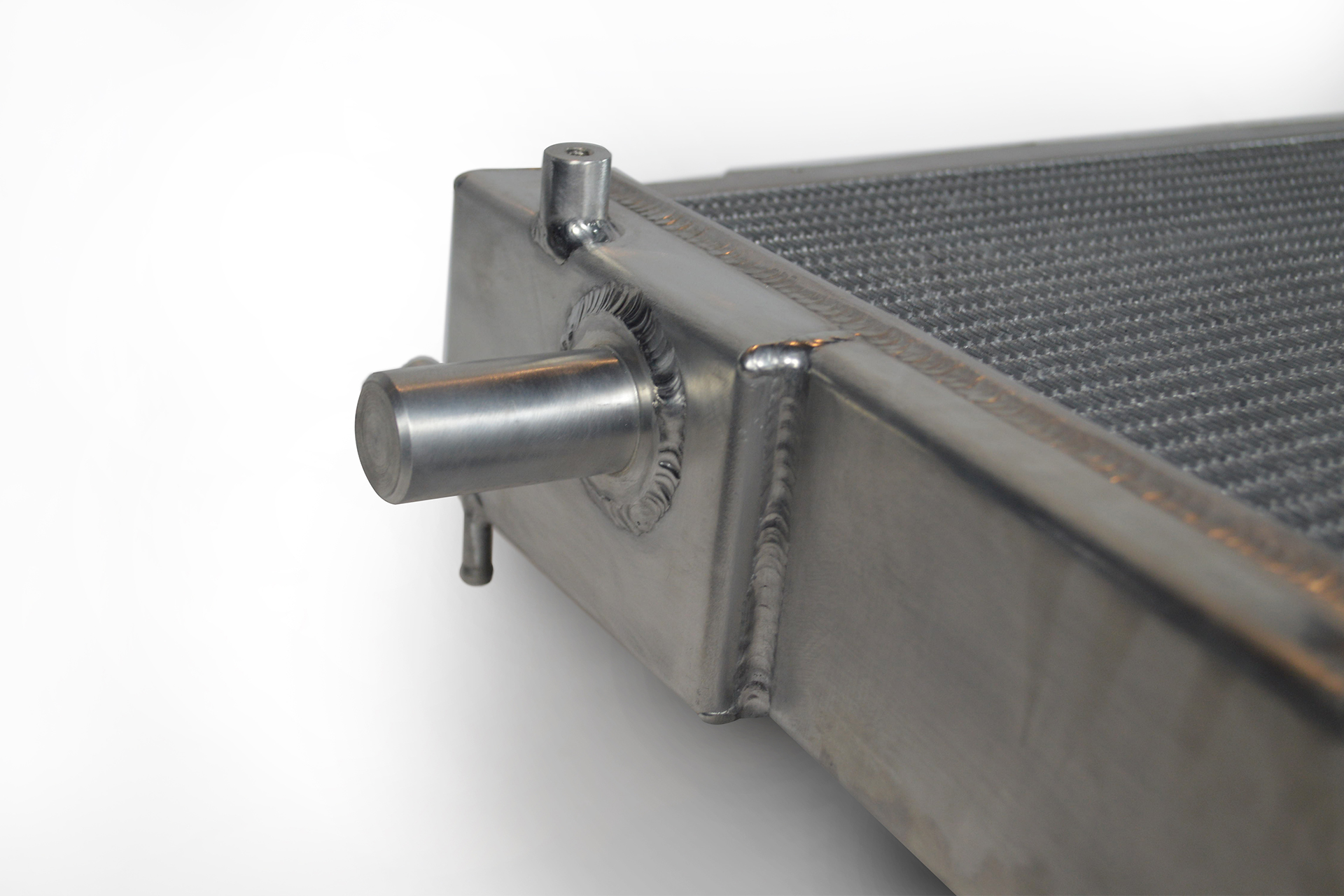

08-10 Ford Super Duty 6.4L Turbo Diesel All-Aluminum Radiator (7062)
7103530706284 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- Universal — verify fitment for your application
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 4.0 hrs — $500 at $125/hr. Pick Install at HRC and a 20% labor deposit ($100) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Super Duty running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
- The CSF #7062 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
| Part Type | Radiator |
|---|---|
| Core Material | Aluminum |
| Core Width | 27.0625 in. |
| Radiator Cap Included | No |
| Outlet Connector Type | Quick Connect |
| Inlet Connector Type | Quick Connect |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | Yes |
| Outlet Location | Bottom Left |
| Inlet Location | Top Right |
| Outlet Diameter | 1.8125 in. |
| Inlet Diameter | 1.8125 in. |
| Core Row Quantity | 2 |
| Core Thickness | 2.6875 in. |
| Title | 08-10 Ford Super Duty 6.4L Turbo Diesel All-Aluminum Radiator |
| Core Height | 37 in. |
| Mounting Hardware Included | No |
| Thermostat Included | No |
| Tank Material | Aluminum |
| Mounting Type | Mounts with OE Hardware |
| Frame Included | No |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Satin |
| Prop 65 Yes/No | No |
| Grade Type | Performance |
| Weight | 52 lb |
| UPC | 710353070628 |
| Country of Origin | ID |
Verified fitment · 12 applications
- Ford F-250 Super Duty 6.4L (2008–2010)
- Ford F-350 Super Duty 6.4L (2008–2010)
- Ford F-450 Super Duty 6.4L (2008–2010)
- Ford F-550 Super Duty 6.4L (2008–2010)
| Part No. | 7062 |
|---|---|
| Brand | CSF |
| Part Type | Radiator |
| Weight | 52 lb |
| UPC | 710353070628 |
| Country of Origin | ID |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
