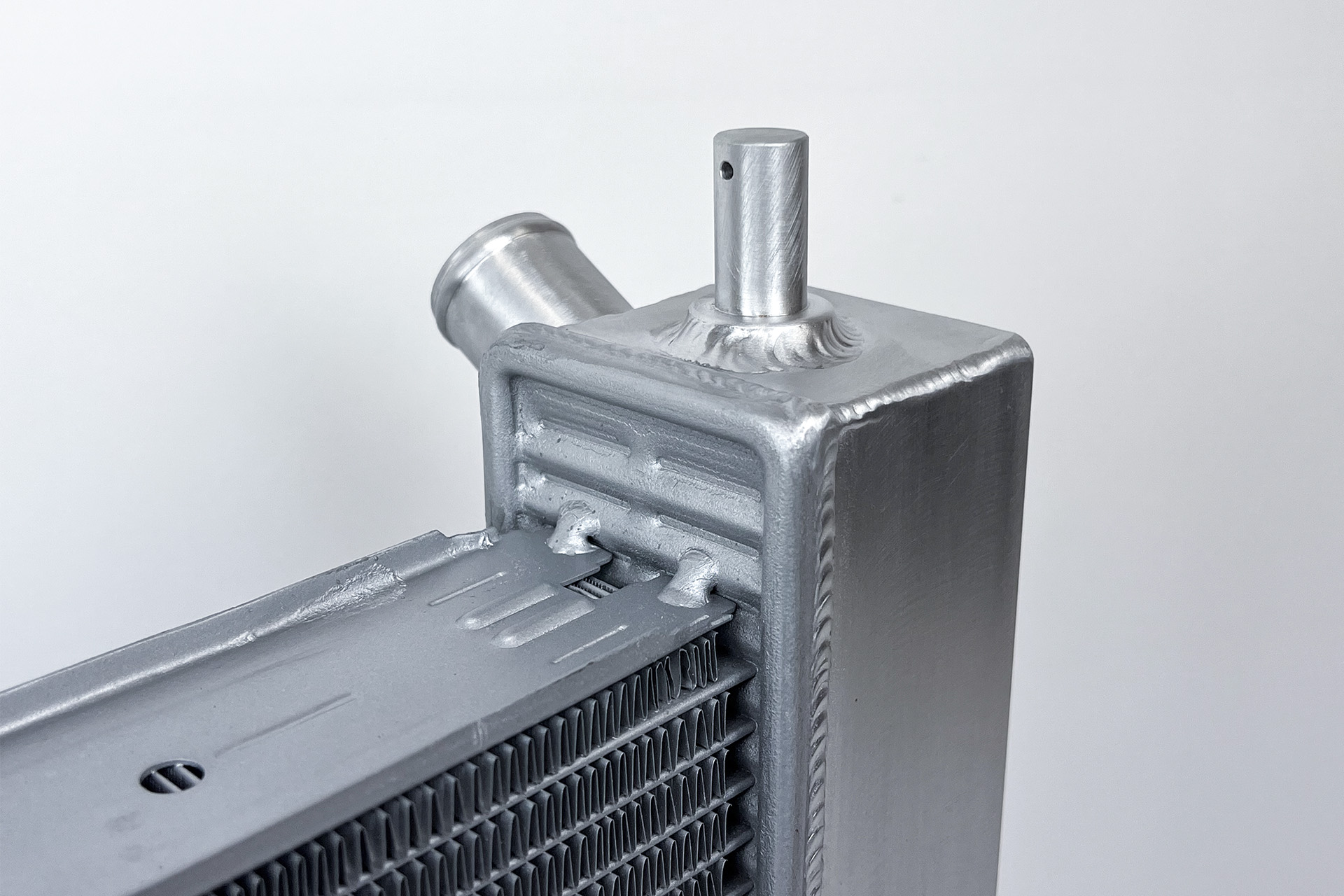

05-13 Chevrolet C6 Corvette Base/Grand Sport/427/Z06 All-Aluminum Radiator (7223)
7103530722334 interest-free payments or as low as $—/mo with Affirm. See if you qualify
Compatibility
- Platform
- LS/LT
- Vehicle-specific fitment
- Review application details below
- Need help?
- Confirm fitment with us before ordering — (714) 202-7886
We list the engine platform a part is built for. That is not year-and-trim application data, so it does not confirm a fit on your specific vehicle.
- Est. install labor: 4.0 hrs — $500 at $125/hr. Pick Install at HRC and a 20% labor deposit ($100) is due at checkout; the balance is due at completion.
- An estimate for a stock vehicle, not a quote — we confirm it in writing when you book, before any labor is authorized. Seized hardware, prior modifications, diagnosis and machine work are quoted separately; tuning is arranged through our tuning partner. Questions: (714) 202-7886.
- Warranty & track disclaimer — read before you race it.
- Shipping & returns — rates and RMA terms.
- Installed in-house in Huntington Beach, CA — labor & service policy.
- Affirm and PayPal available at checkout.
More ways to pay at checkout
CSF is quite familiar with GM performance vehicles so creating a high-performance radiator for the C6 Corvette made a lot of sense. Also given the age of the C6, there are a lot of owners ready to upgrade or looking to replace their original radiators. The goal was to create a model that could fit all of the C6 Corvette trims and work with the majority of upgrades and modifications. CSF teamed up with A&A Corvette to develop this radiator. As experts exclusively developing products for Corvettes for over 20 years, they were the perfect R&D Partner for this radiator. This new design coupled with a core that has 193% more volume than the factory radiator offers a massive upgrade in cooling capacity. The CSF Radiator also offers the best value of any aftermarket radiator coming in hundreds of dollars less than competitors.
- The CSF #7223 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
| Part Type | Radiator |
|---|---|
| Title | 05-13 Chevrolet C6 Corvette Base/Grand Sport/427/Z06 All-Aluminum Radiator |
| Core Width | 421mm |
| Radiator Cap Included | No |
| Outlet Connector Type | Slip On |
| Inlet Connector Type | Slip On |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | Yes |
| Internal Transmission Oil Cooler | Yes |
| Outlet Location | Bottom Right |
| Inlet Location | Top Left |
| Outlet Diameter | 32mm |
| Inlet Diameter | 32mm |
| Core Row Quantity | 2 |
| Core Thickness | 52mm |
| Core Material | Aluminum |
| Core Height | 594mm |
| Mounting Hardware Included | No |
| Thermostat Included | No |
| Tank Material | Aluminum |
| Mounting Type | Mounts with OE Hardware |
| Frame Included | No |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Satin |
| Prop 65 Yes/No | No |
| Grade Type | Performance |
| Weight | 21 lb |
| UPC | 710353072233 |
| Country of Origin | ID |
Verified fitment · 20 applications
- Chevrolet Corvette 427 Limited Edition Z06 7.0L (2008)
- Chevrolet Corvette 6.0L (2005–2007)
- Chevrolet Corvette 6.2L (2008–2013)
- Chevrolet Corvette Grand Sport 6.2L (2010–2013)
- Chevrolet Corvette Grand Sport LT 6.2L (2013)
- Chevrolet Corvette Z06 7.0L (2006–2010)
| Part No. | 7223 |
|---|---|
| Brand | CSF |
| Part Type | Radiator |
| Weight | 21 lb |
| UPC | 710353072233 |
| Country of Origin | ID |
Platform-level fitment (Ford + GM, Phase 1). We publish the engine platform a part is built for — not year-and-trim application data — so nothing here confirms a fit on a specific vehicle. Confirm fitment with us before ordering: (714) 202-7886.
